Mainkco IPC 10″ Pcap. touch industrial monitor AM-PC101 model is an enhanced stability and reliability industrial 10.1-inch wide-screen panel mounting monitor product. The design uses a multi-point (10- points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards.
The AM-PC101 uses full-sealed box construction, and its front panel complaints NEMA / IP65 waterproof and dust-proof standard, to prevent installation in the control cabinet because of the scene splashing water droplets and water vapor into the host and thus affect equipment operation; high-strength steel box structure, so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, building, automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.

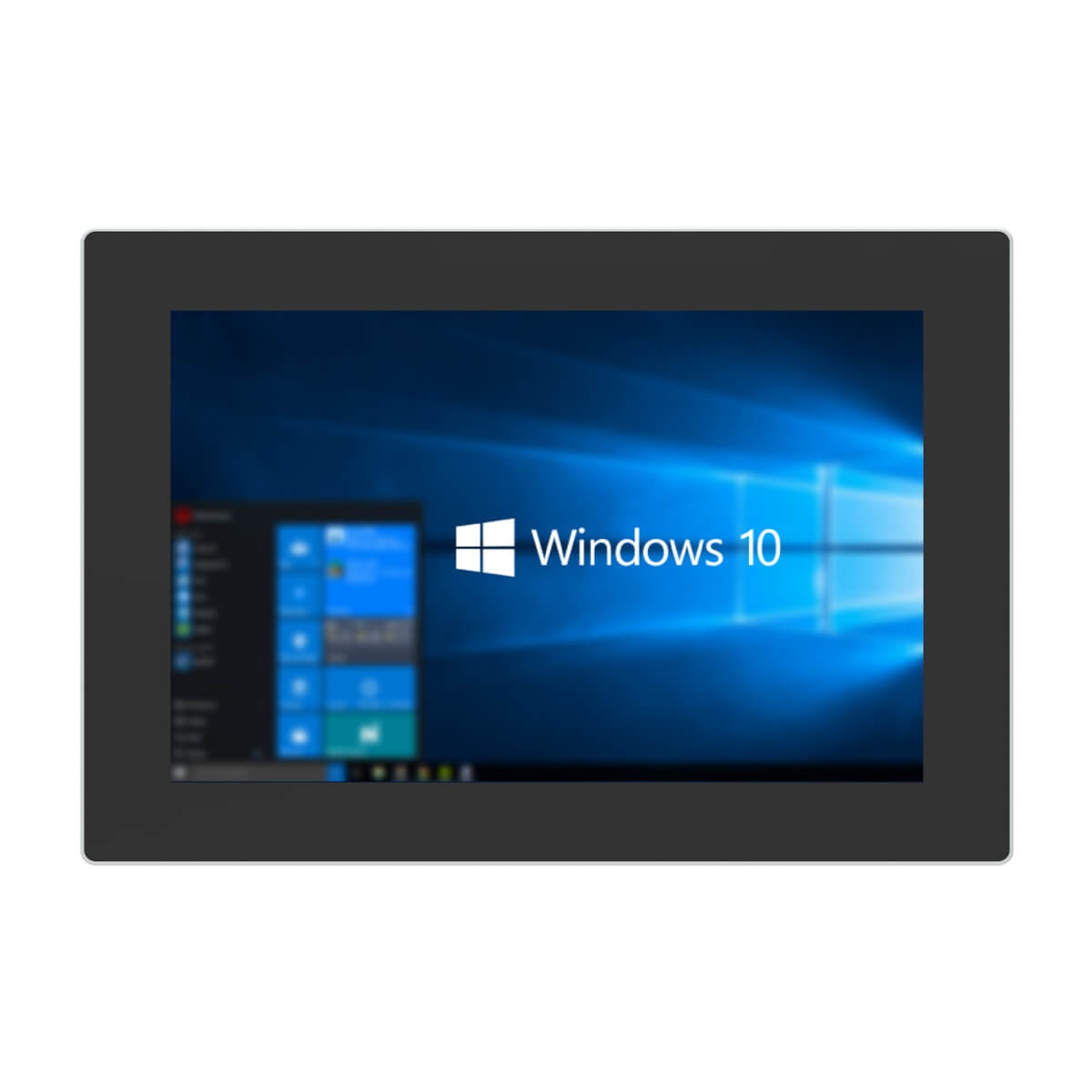

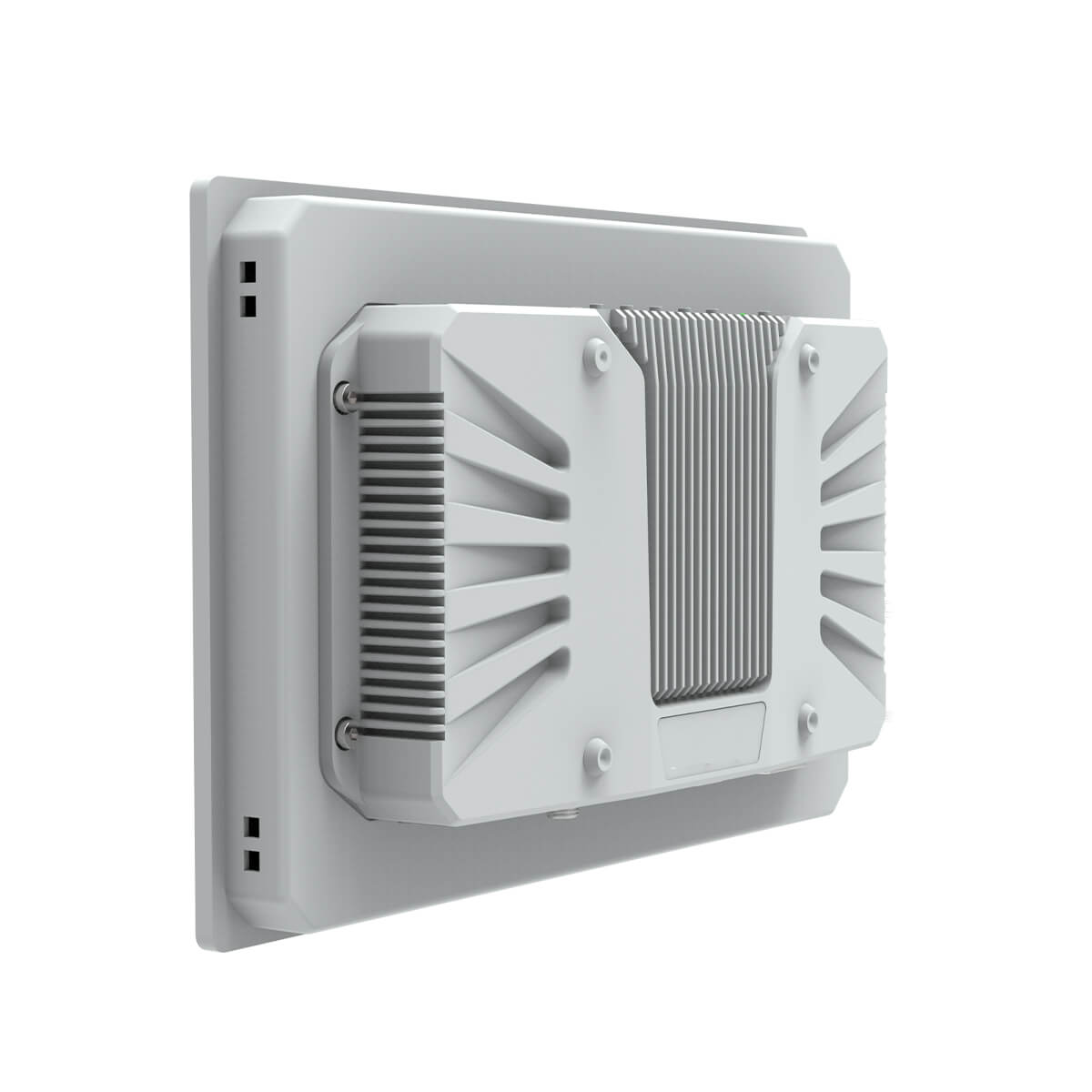

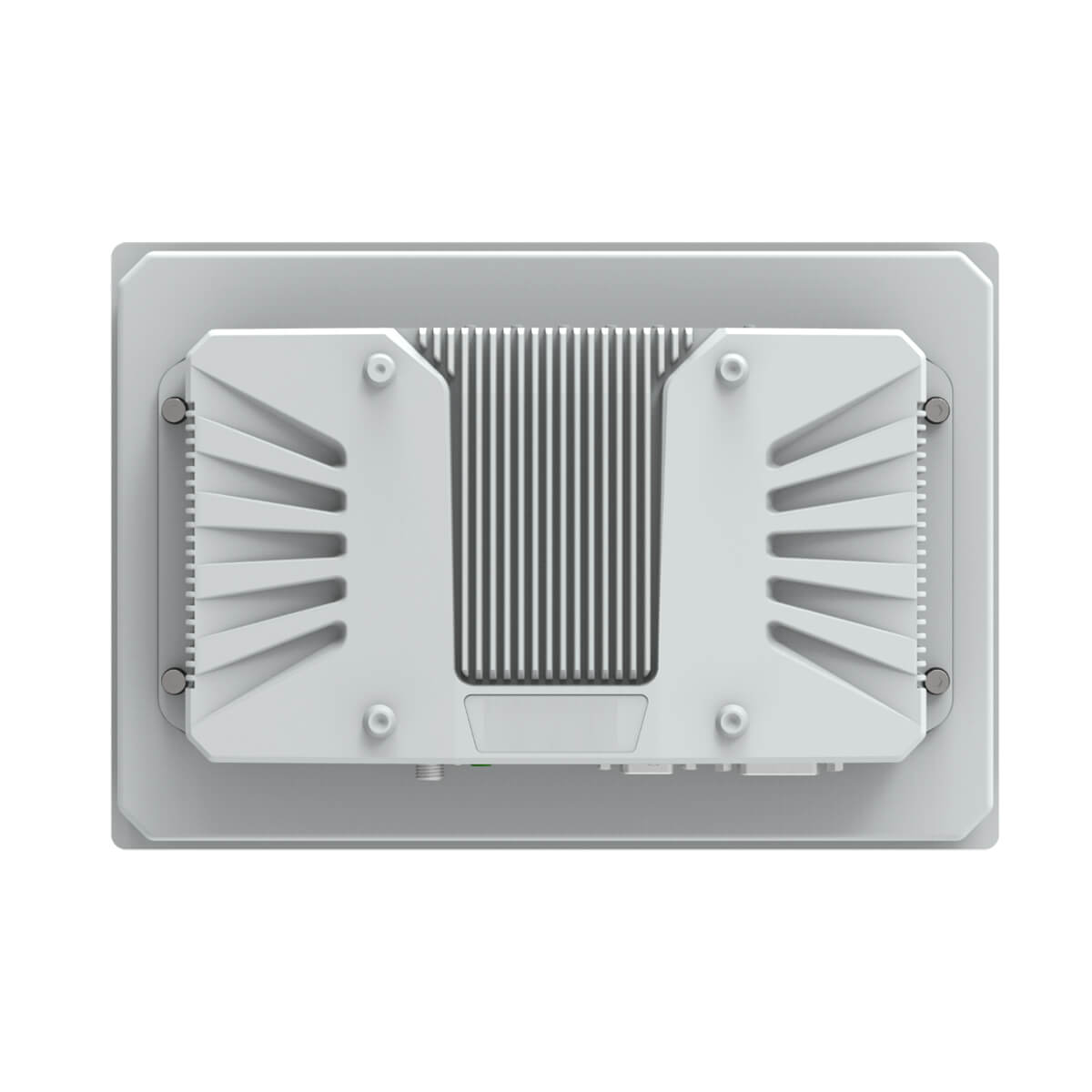

10.1’’ Pcap. touch Industrial monitor AM-PC101
Key features:
- Whole machine die casting molding;
- 10.1’’ TFT LCD, LED backlit, Resolution 1280 x 800;
- Multi-points 10 points Pcap. touch;
- Front panel IP65 rating, tempered glass;
- Multi DVI+VGA Signal input;
- Panel mounting and VESA mounting;
- Optional wide voltage input DC 9~36v.
"*" indicates required fields
Description
Technical Data
Technical Data
| Basic Parameter | |
| Button | OSD Button on top of box |
| Overall Dimension | 270 x 184.5 x 59 mm (W*H*D) |
| Hole Dimension | 263.5 x 178 mm (W*H) |
| Structure | Whole machine aluminum alloy die casting molding |
| Mounting | Panel Mounting, VESA 100 |
| Display port | 1*DVI ,1*VGA |
| Net weight | 1.7 KG |
| Gross weight | 3.6 KG |
| LCD | |
| Size/Type | 10.1’’ SXGA, TFT-LCD |
| Resolution | 1280 * 800 |
| Backlit MTBF | WLED, 50 000 hours |
| Brightness | 350 (cd/m2) |
| Display area | 216.96 x 135.60 mm (H x V) |
| Contrast ratio | 800: 1 (Typ.) |
| Viewing angle | 85/85/85/85 (Typ.) |
| Touch | |
| Type | Multi-point 10 points Pcap touch |
| Interface | USB (Optional RS232) |
| Transmittance | >90% |
| Resolution | 4096 x 4096 |
| Input | Finger/ touch pen |
| Response time | <5ms |
| ESD | Contact 4KV, air 8KV |
| Surface hardness | Mohs 7H |
| Power & Environmental | |
| Working temperature | 0℃~+50 ℃ |
| Storage temperature | -20℃~+60 ℃ |
| Water Proof | IP65 rating in front panel |
| Relative humidity | 10~95%@10℃（No condensation） |
| Vibration | 50~500Hz,1.5G,0.15mm peak to peak |
| Shock | 10G/peak（11ms sec） |
| Power input | DC 12V (Optional DC 9~36V) |
| Power consumption | Around 10W |
| Certification | CE/ROHS/FCC |

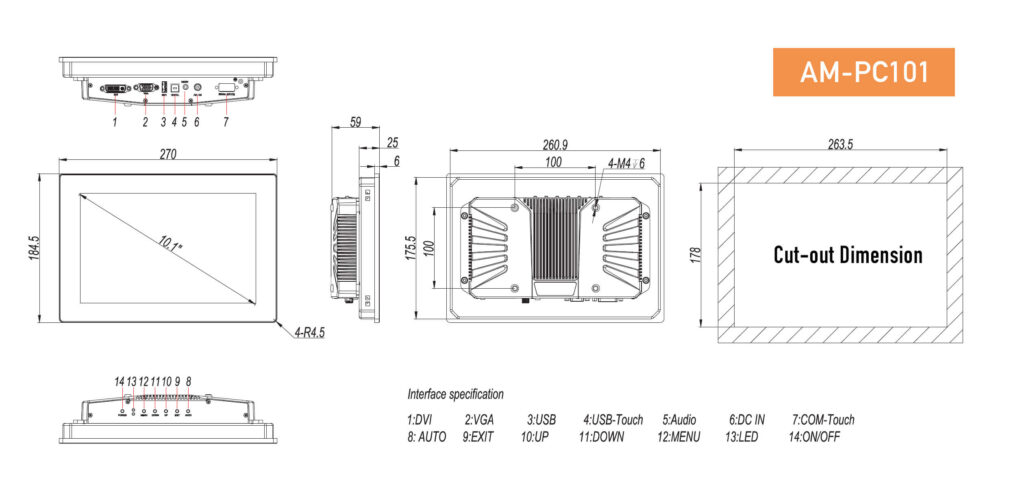

Product Dimension
Product Dimension
