10.1’’ widescreen Pcap. Touch Panel PC APC-PC101CQ-E5

Key features:

Intel Baytrail J1900 Quad-core processor;

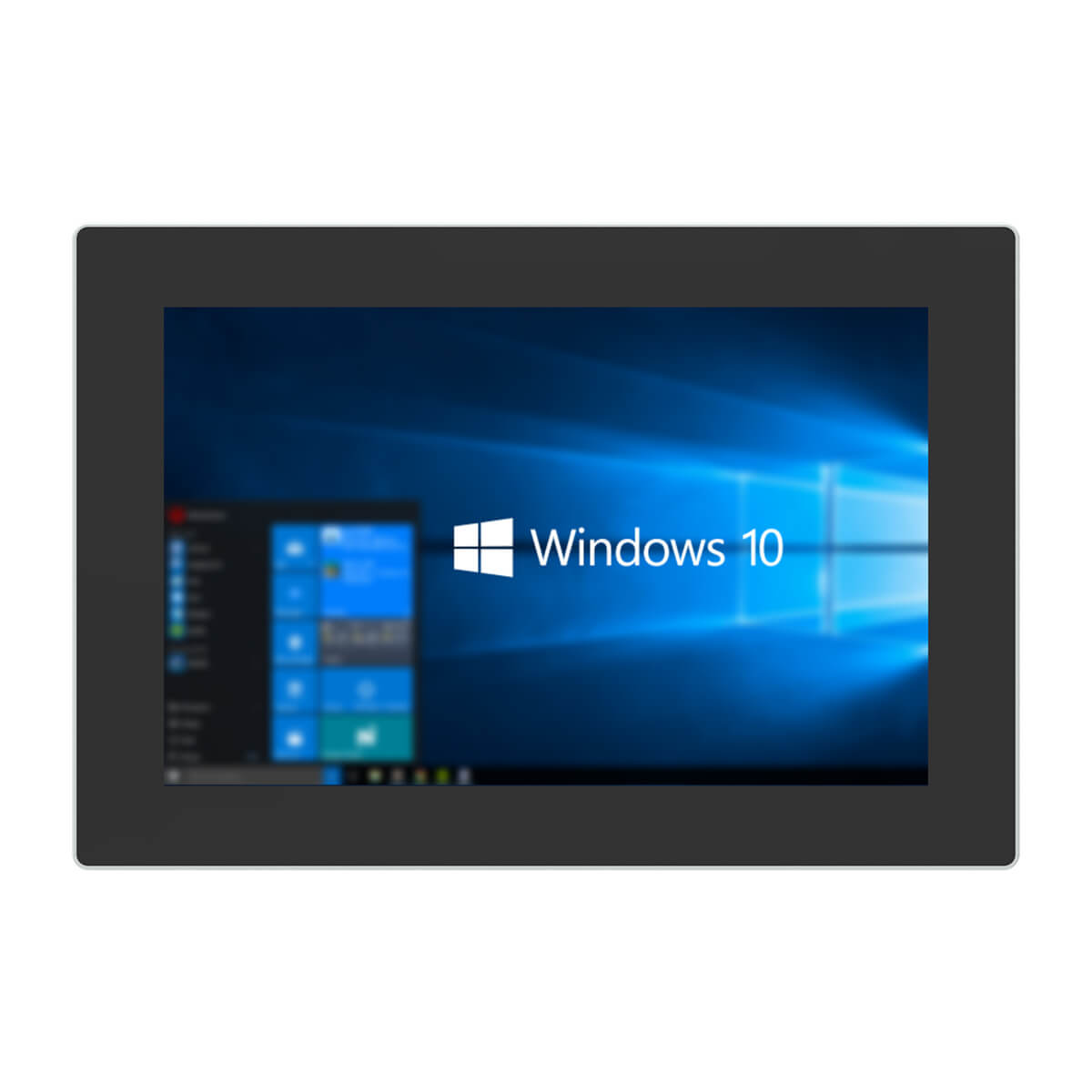

10.1’’ TFT LCD, LED backlit, Resolution 1280 x 800;
Multi-points 10 points Pcap. touch;
Front panel IP65 rating;
On-board 4GB DDR3 memory;
2 GLAN, 5 USB, 2 COM, 1 HDMI, 1 VGA, Mic-in/Line-out;
Wide voltage input DC 9~28v.

"*" indicates required fields

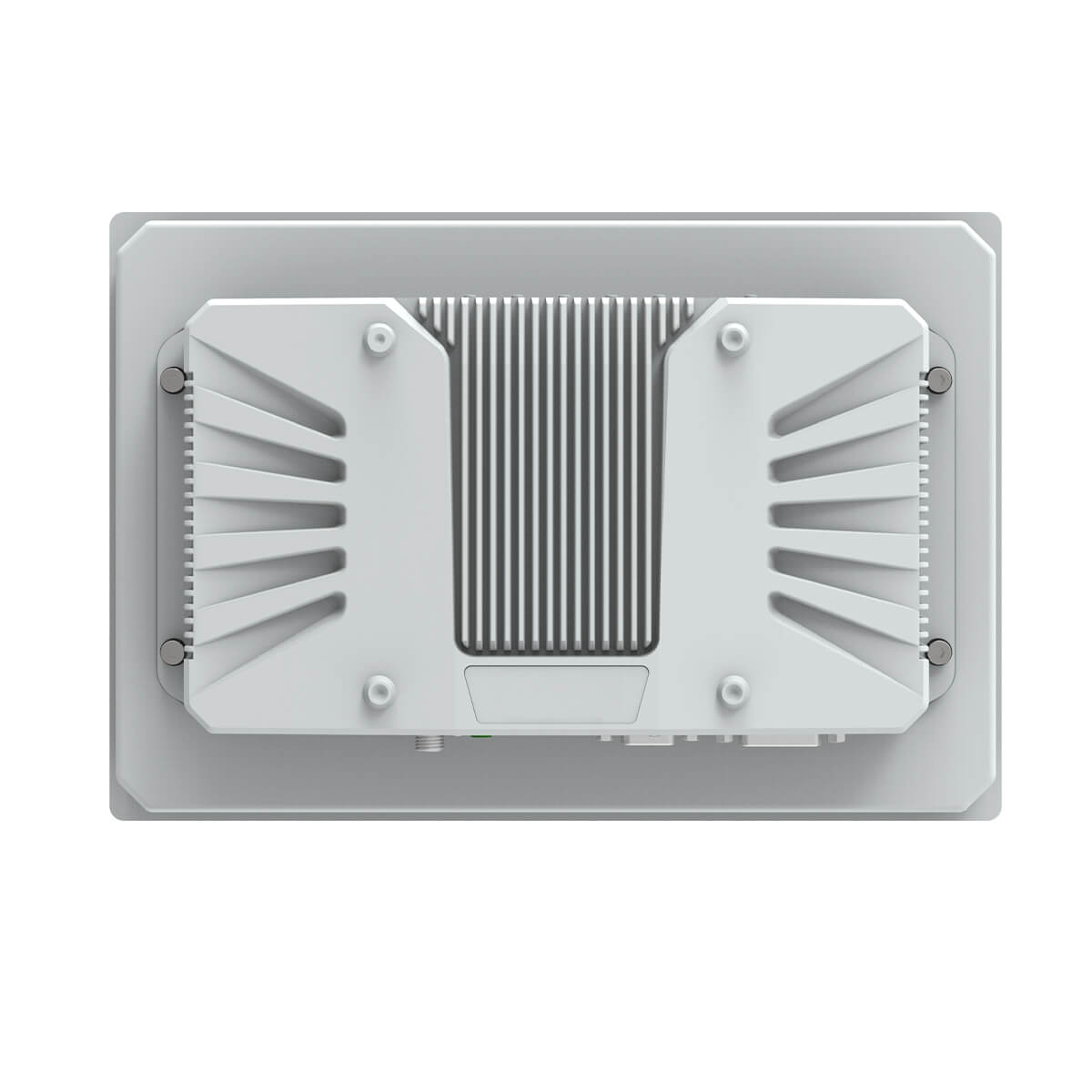

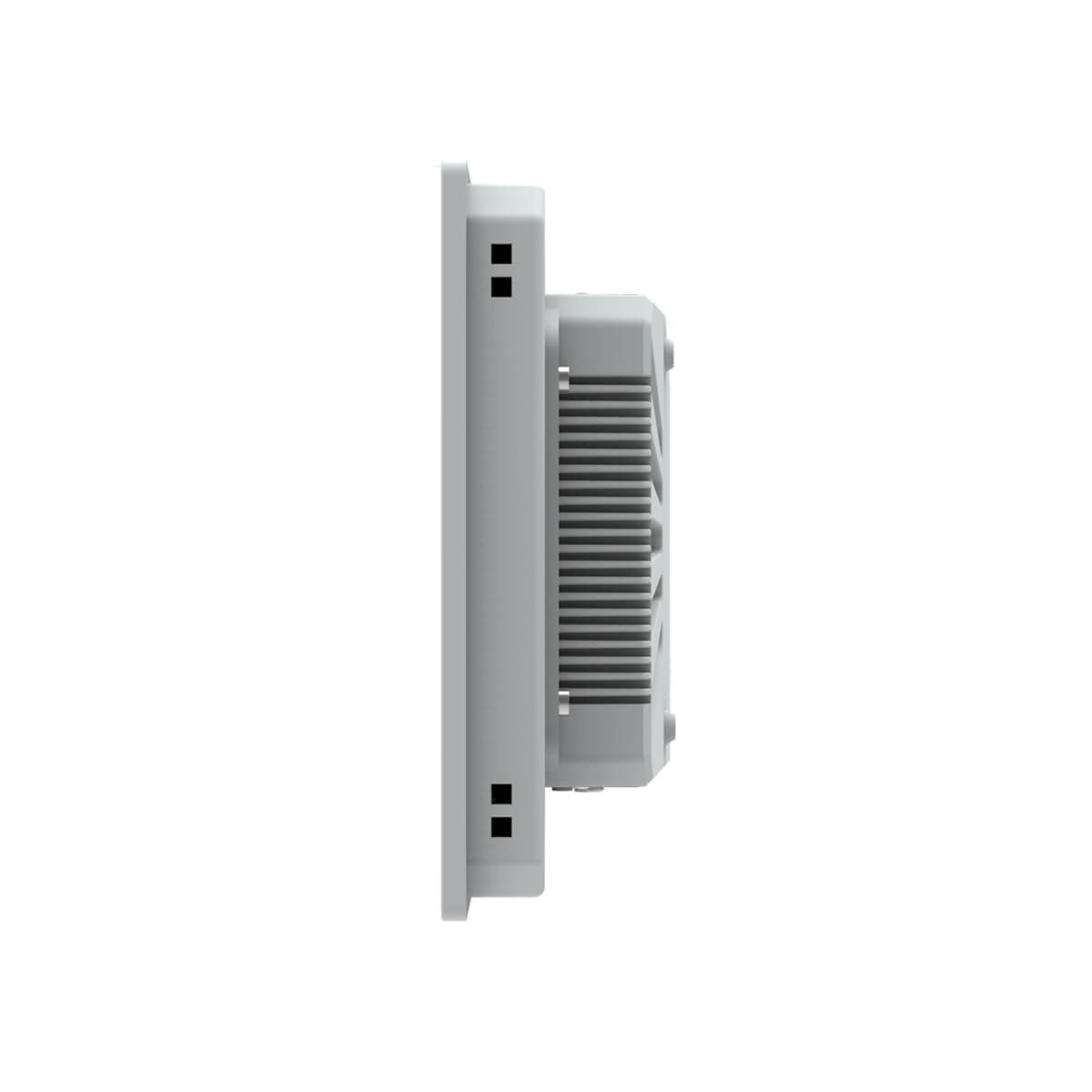

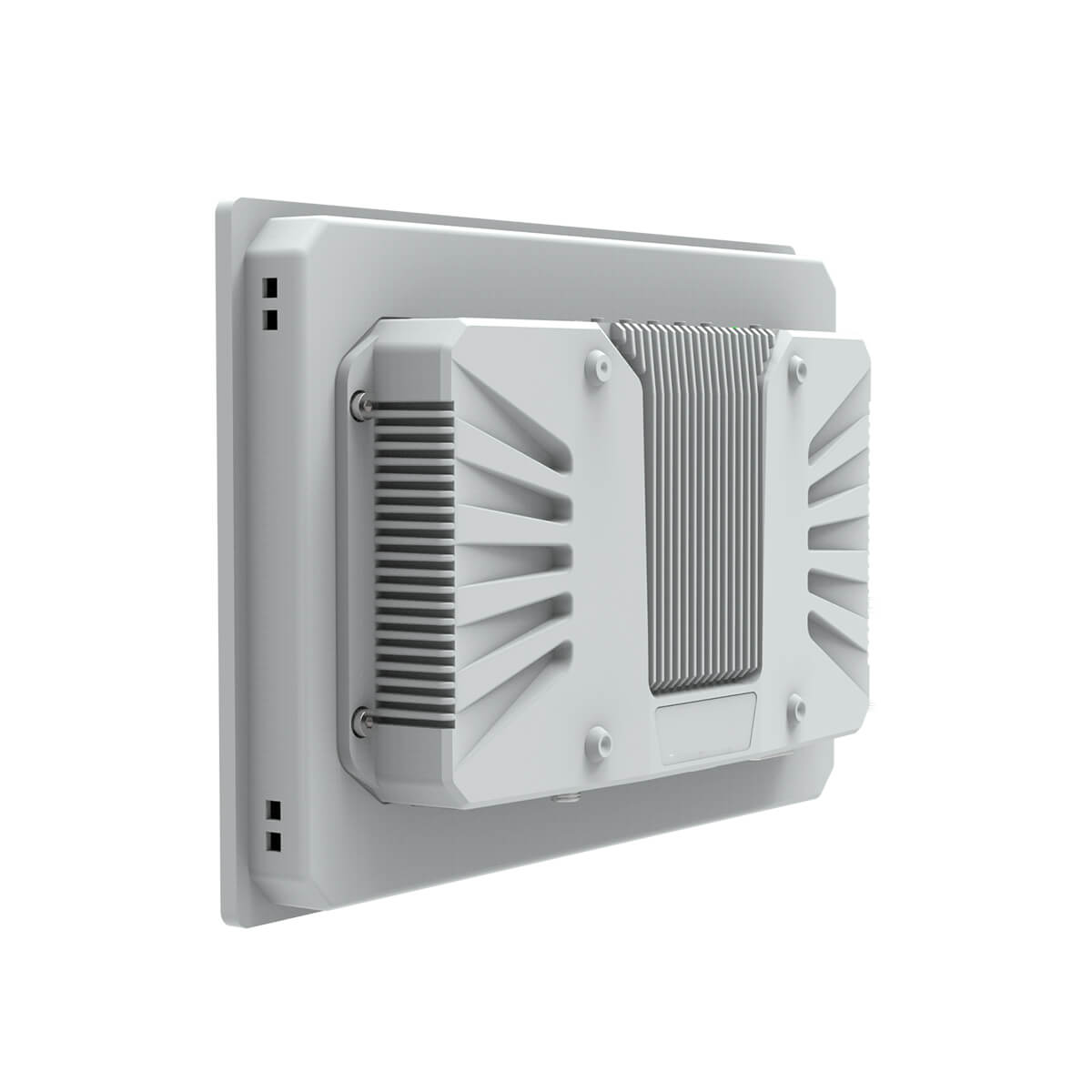

Mainkco IPC 10.1’’ widescreen Pcap. Touch Panel PC APC-PC101CQ-E5 model is a low power-consumption, Fan-less designed, enhanced stability and reliability industrial Touch Panel PC product. It adapts Intel Baytrail J1900 Quad-core 2.0Ghz processor. APC-PC101CQ-E5 model is modular concept designed, with on-board 4GB memory. Its storage can support one mSATA and one 2.5″ SATA interface SSD. The design uses a multi-point (10- points) projective capacitive touch screen, and it can fulfill front panel NEMA/IP65 dust-proof and water-proof standards.

The APC-PC101CQ-E5 uses full-sealed box construction, and it can prevent dust from entering the device system, is compatible with Win7, Win8, Win Embedded, WIN10, Linux OS, and it also has a good compatibility with customized applications and software programs.

Technical Data

System
BIOS	SPI AMI EEI BIOS
CPU	Intel Baytrail J1900 processor, Quad-core 2.0Ghz, burst to 2.42Ghz
Memory	On-board DDR3L 4GB RAM
Network	2* Intel I211AT (Optional 3G/4G/Wi-Fi)
Storage	1* 2.5“SATA + 1*mSATA
Audio	Realtek ACL 662 controller
Watch dog	Programmable 1~255 seconds
Operating System	Win7, Win8, Win 10, Linux, Unix

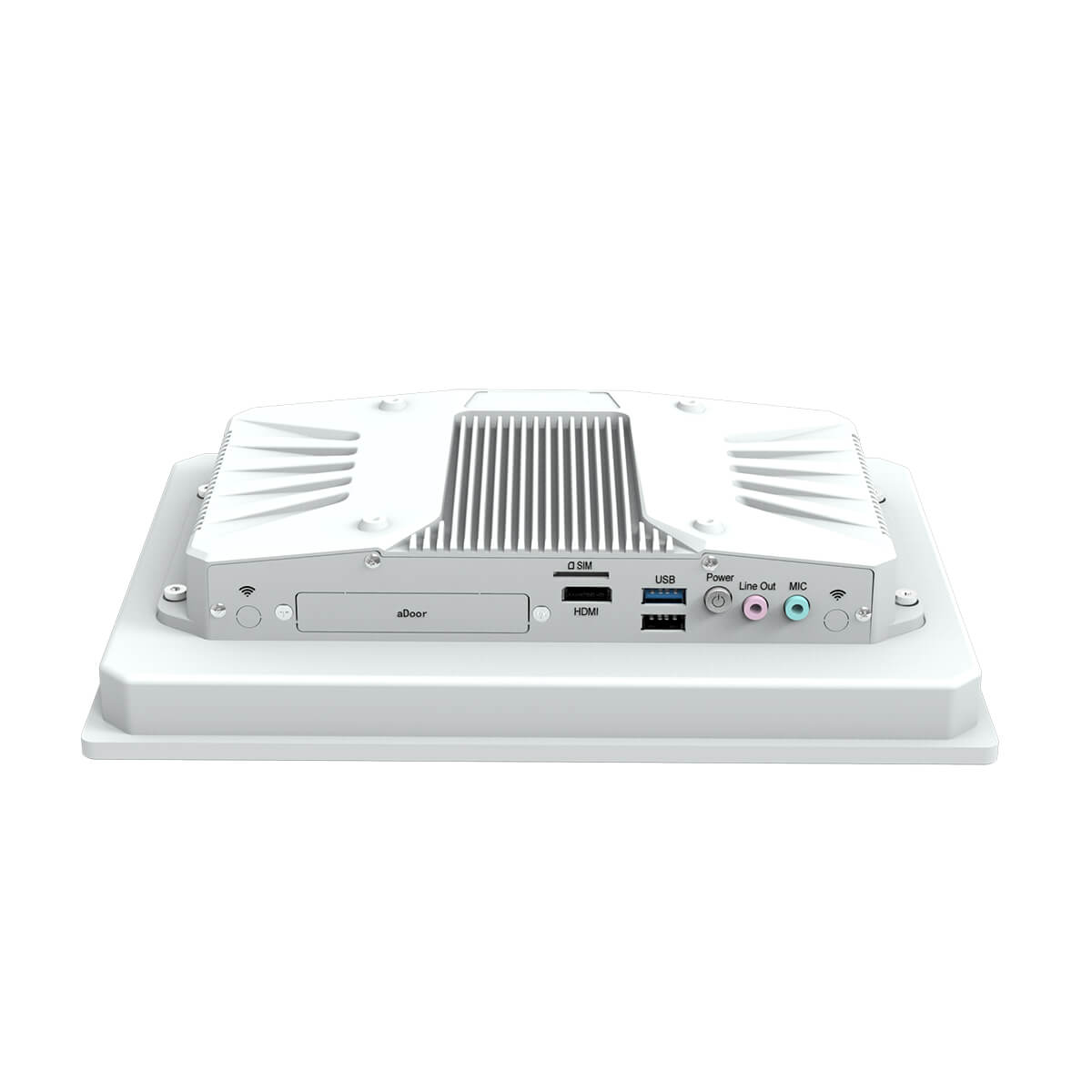

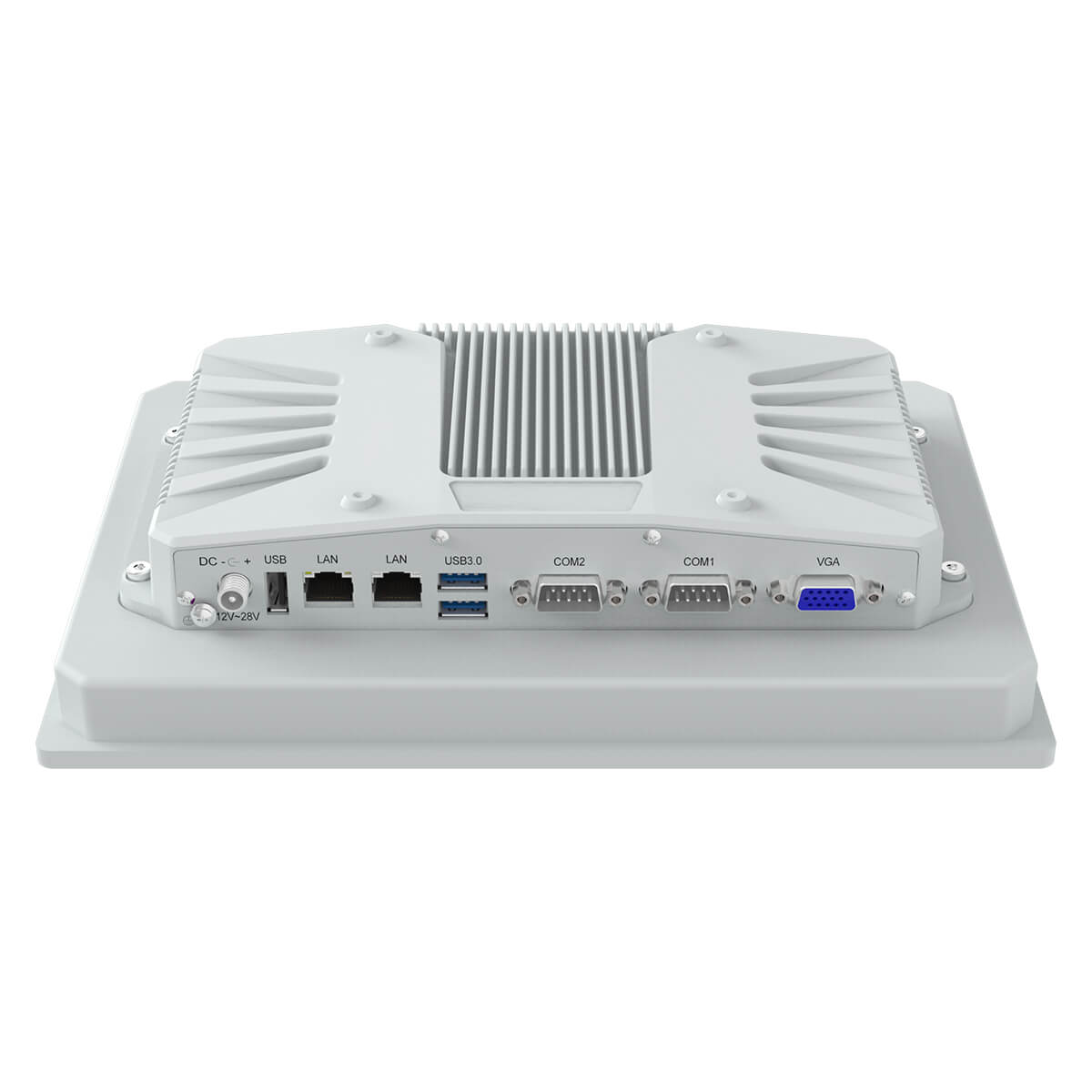

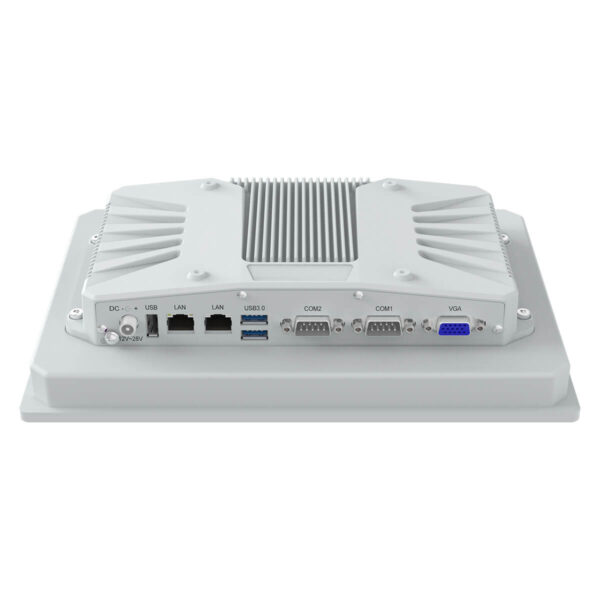

I/O
Network	2x RJ45, 10/100/1000 Mbps
USB	3x USB 3.0 + 2x USB 2.0
COM	2x DB9 RS232 (COM1 support RS485)
Audio	Line-In, Line-Out
Display	1* HDMI + 1*VGA
Power Input	Coaxial power, 2.1mm, lockable
LCD
Size/Type	10.1’’ SXGA TFT LCD
Resolution	1280* 800
Brightness	350 (cd/m²)
Brightness MTBF	WLED, 50 000 hours
Display area	216.96 x 135.60 mm (H*V)
Viewing angle	85/85/85/85 (Typ.)
TOUCH
Type	Projective capacitive touch
Touch points	Multi points touch, max. up to 10 points
Durability	>100 000 000 times
Resolution	4096 x 4096
Surface hardness	Mohs 7H
Touch interface	USB
Response time	<5ms
Structure
Front Panel	Magnesium-aluminum alloy, Anodizing treatment
Color	Light grey + Black
Mounting	Panel mounting, VESA100
Hole dimension	263.5 x 178 mm (W*H)
Product Dimension	270 x 184.4 x 60 mm (WHD)
Net weight	1.75 KG
Power and Environmental
Voltage Input	DC 9~28V (Over-current, Over-voltage and reverse polarity protection)
Power Consumption	About 40 W
Working temperature	0℃~+50 ℃
Storage temperature	-20℃~+60 ℃
Relative humidity	10~95%@10℃（No condensation）
Vibration	50~500Hz,1.5G,0.15mm peak to peak
Shock	10G/peak（11ms sec）

Technical Data

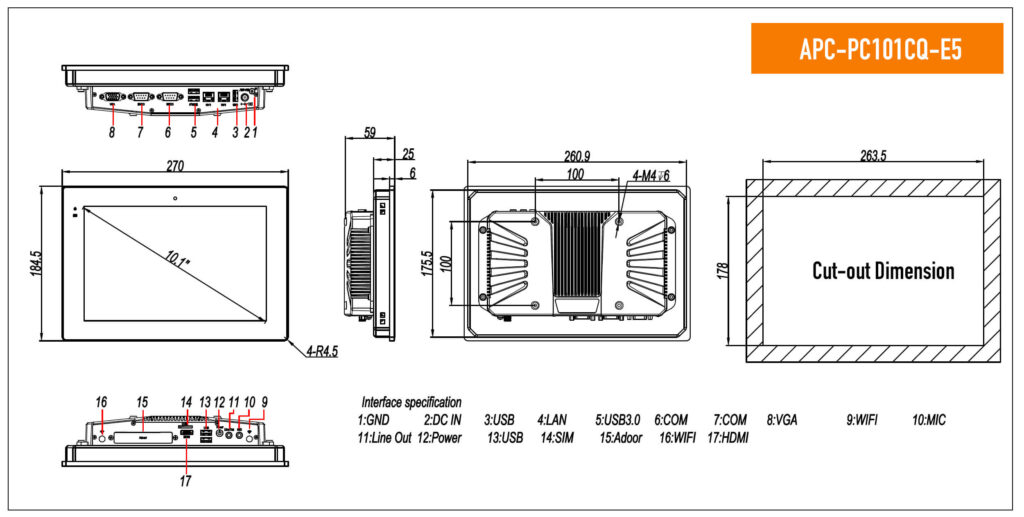

Product Dimension
