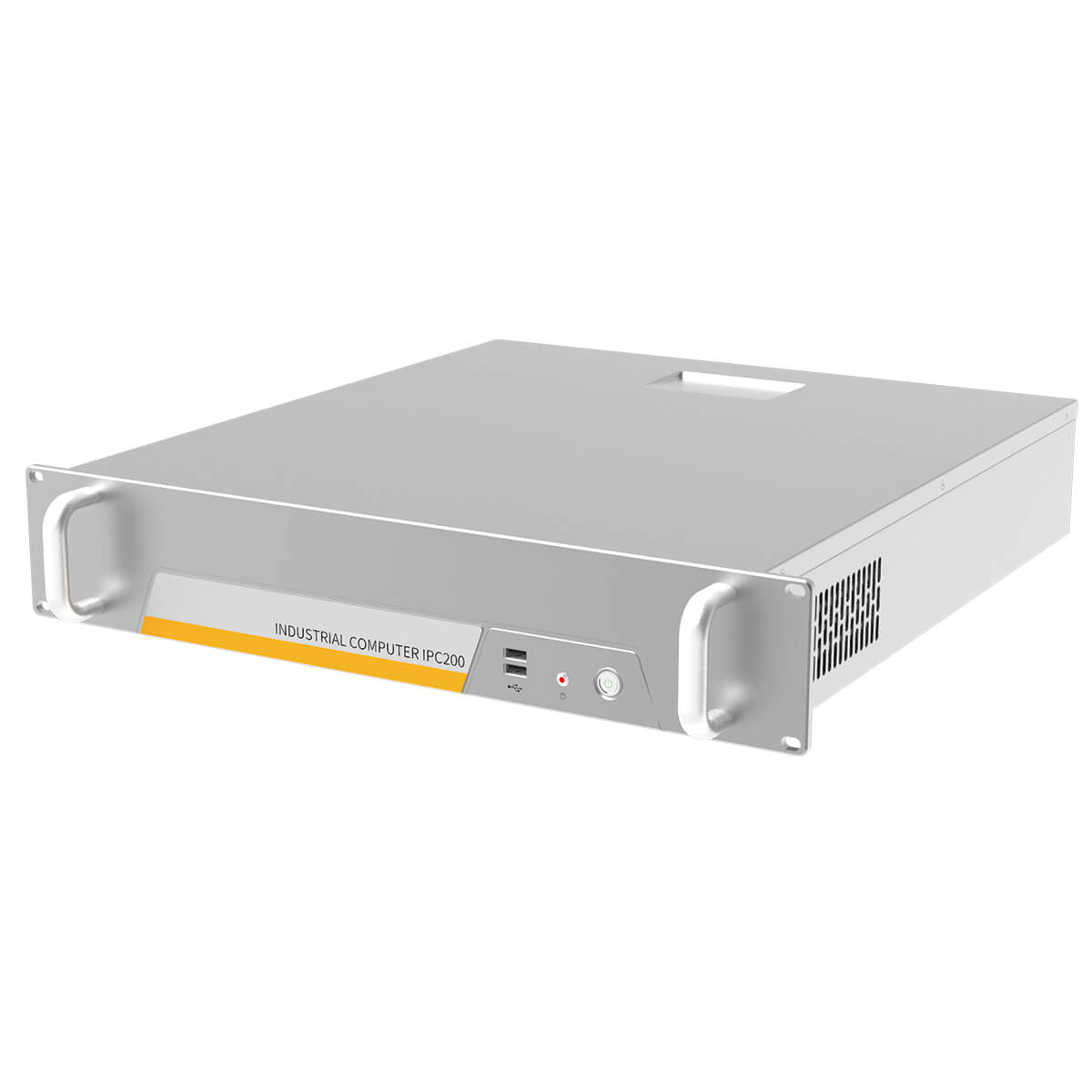

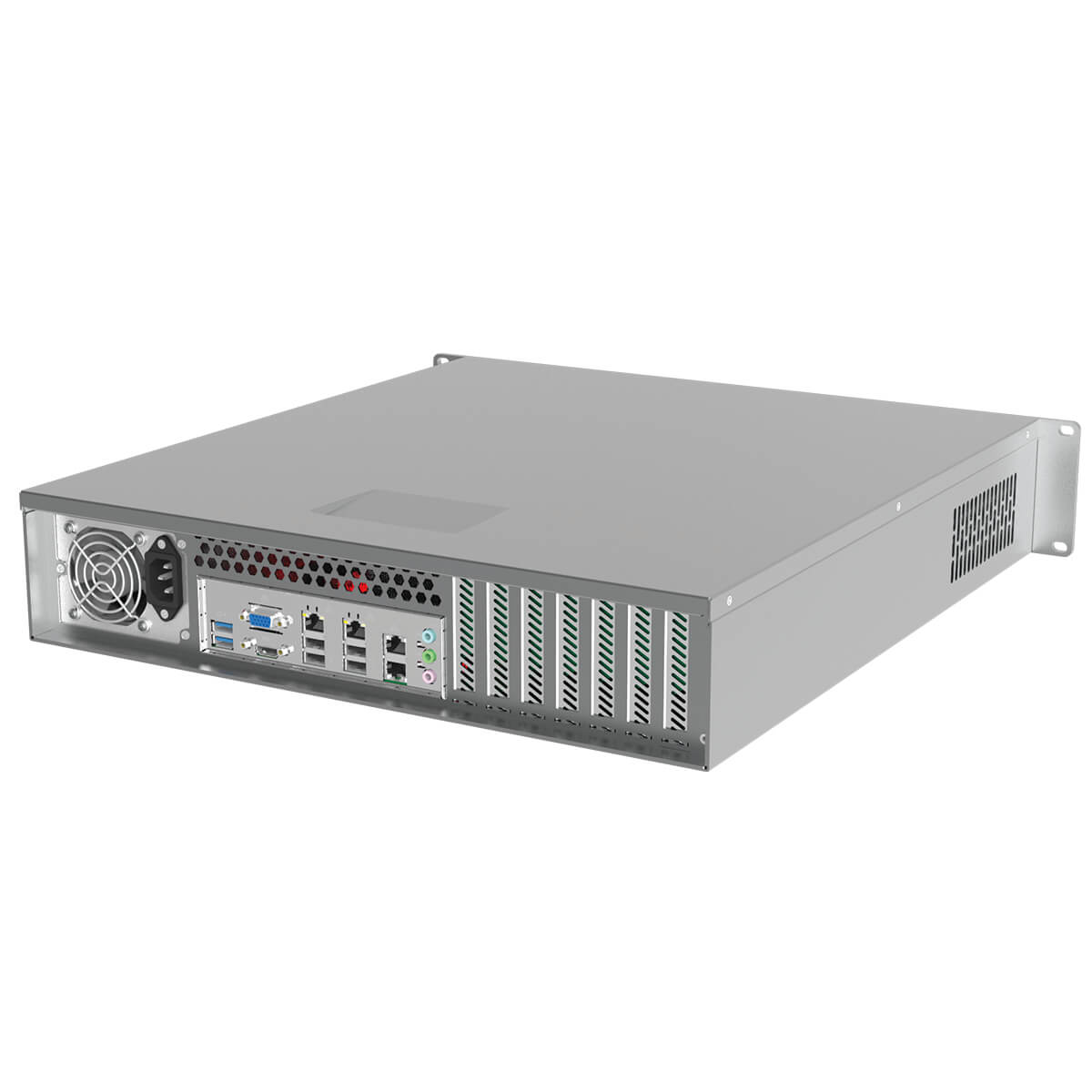

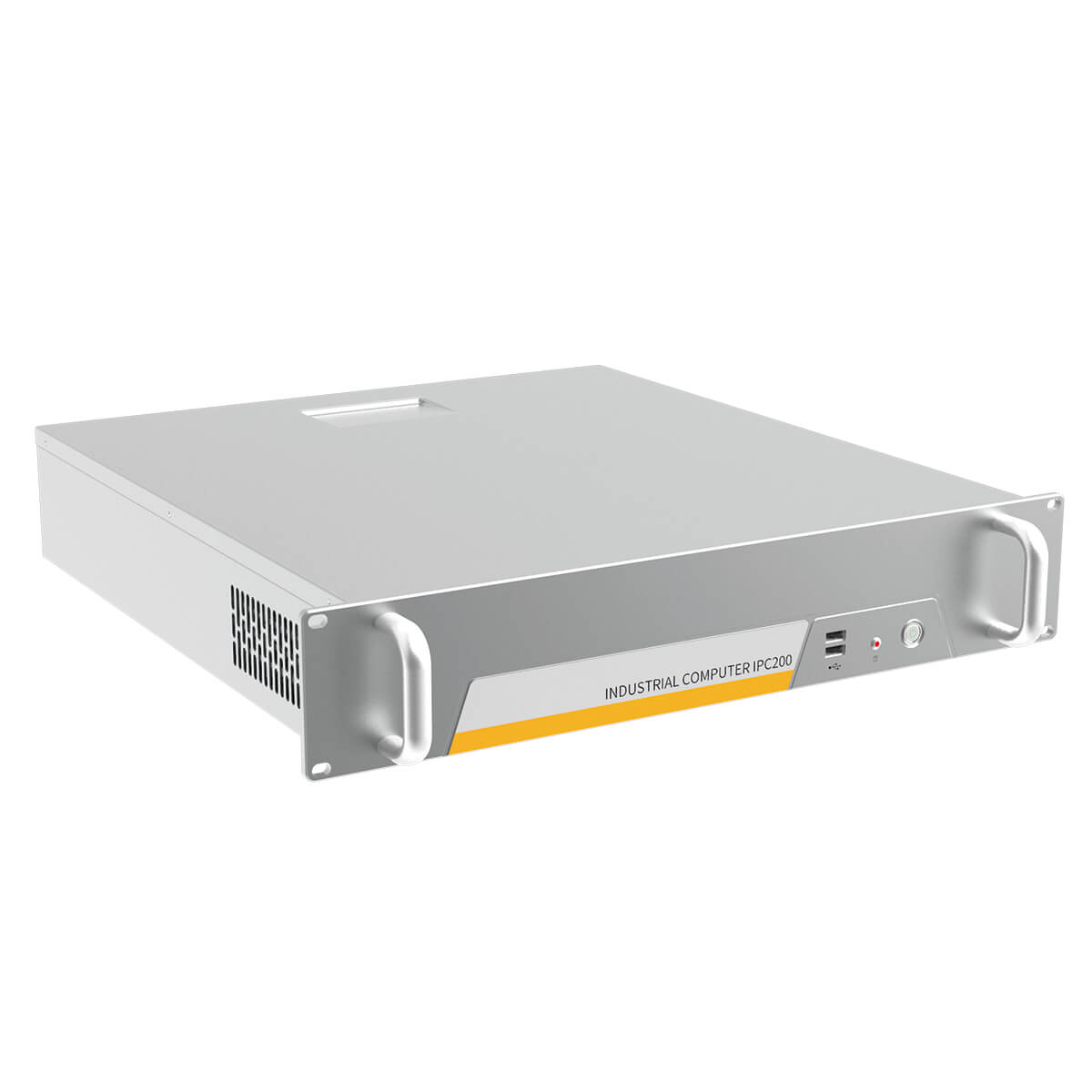

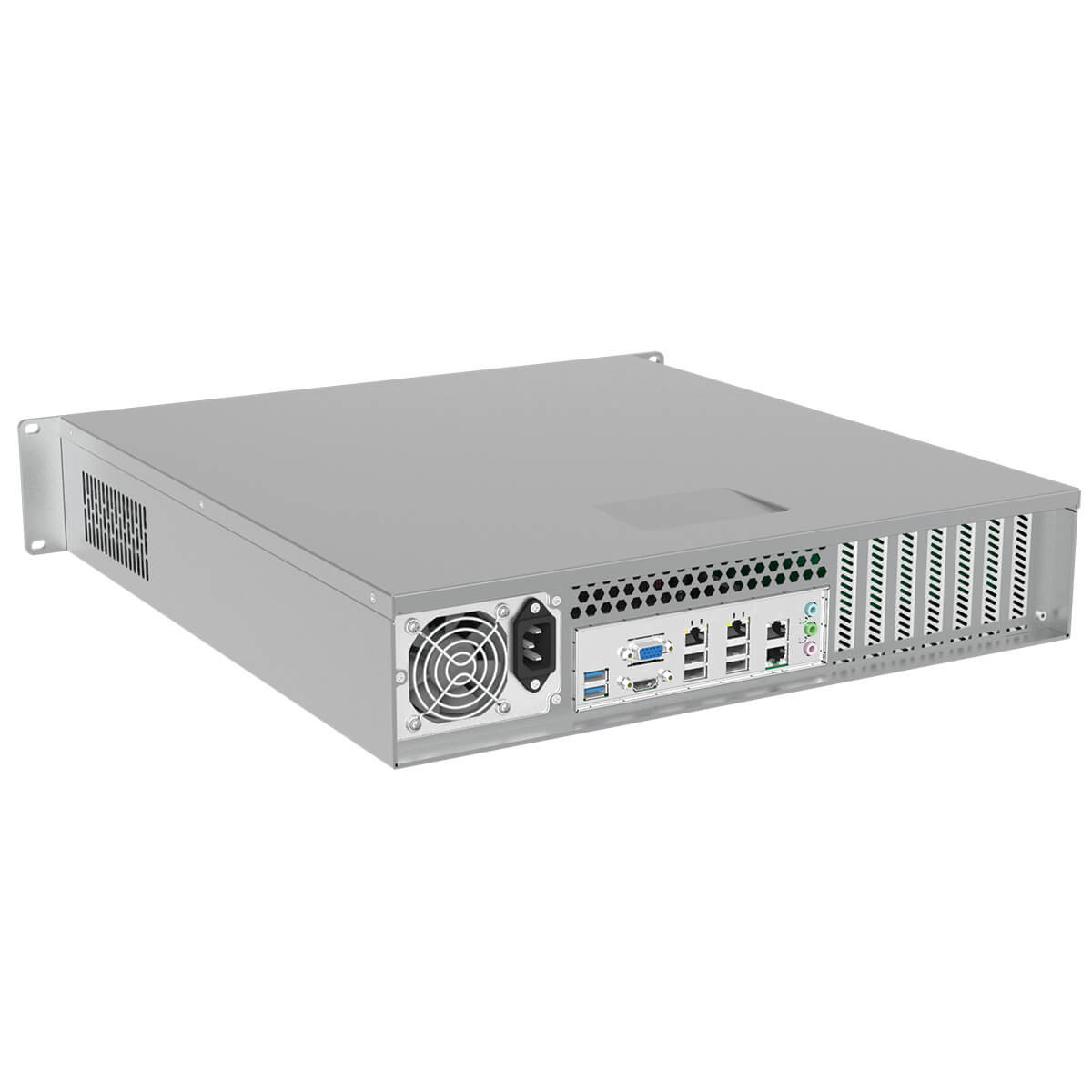

2U Rack mount industrial Computer ABOX-U231C

 Support Intel® 6th/7th/8th/9th Core™ i7/i5/i3, Pentium, Celeron Desktop multicore processors;
 Intel H310C industrial chipset, TDP=6W;
 2* DDR4 U-DIMM, support 2666 MHz, Max. up to 64GB;
 3* SATA 3.0 and 1* M.2 Key-M SATA Storage slot;
 2* GLAN, 4* USB3.2, 4* USB2.0, 6* COM, PS/2, 1* HDMI, 1* DVI;
 Max. support 7 slots expansion to meet different applications.

"*" indicates required fields

Mainkco ABOX-U231 model is a 2U Rack mount AI edge computing industrial computer. ABOX-U231 model support Intel 6th to 9th Gen. Desktop Celeron, Core i3/i5/i7 platforms, with rich IO interfaces: 2 GbE, 4 USB, 6 COM, 1 HDMI, 1 DVI, Audio… This 2U Rack mount industrial Computer have flexible expansion with 1* Mini-PCIe slot.

It supports wall-mount and standard 2U Rack mount installation methods, and is suitable for various types of industrial and machinery equipments. This 2U Rack mount computer can be widely used in communications, finance, electricity, transportation, Medical, industrial automation, machine vision and AI computing, Smart City and other intelligent fields and other fields.

Technical Data

System
CPU	Intel^® 6^th/7^th/8^th/9^th Core™ i3/i5/i7, Pentium, Celeron Desktop LGA1151 CPUs, Max. TDP=95W
Chipset	Intel^® H310C Chipset, TDP=6W
Memory	2 x DDR4 U-DIMM, support 2666 MHz, Dual channels, Max. up to 64GB
Storage	3 x 2.5” SATA3.0, 1x M.2 Key-M (SATA SSD, 2242/2280)
Display	1 x HDMI (Max. support resolution: 4096×2160, @ 30Hz)
Display	1 x DVI-D (Max. support resolution: 1920×1200, @60Hz)
Network	2 x Intel® Ethernet Connection; 1* I219, 1* I210
Wireless	1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion) 1 x SIM slot
Audio	1 x Mic-in + 1 x Line-out (Realtek ALC 662)
USB	4 x USB 2.0 (Type-A), 4x USB3.2 (Type-A)
PS/2	1x PS/2
COM	2 x RS232/RS485/RS422 (COM1/COM2, DB9), 4x RS232 (COM3/4/5/6, jumper)
GPIO	Optional 16x GPIO
Expansion	1x PCIe 3.0 x16 slot
	1x PCIe 2.0 x4 slot (Gen2 x4)
	5x PCI slots (32-bit / 33 Mhz)
	1x Mini-PCIe
AI Computing	Max. support NVIDIA GeForce GTX3090 (PCIe 16x)
Power	2U standard PSU
LED/Switch	1 x power button (including status LED light)
Watchdog	Programmable 255 seconds
OS	6^th /7^th Core™: Windows 7/10/11, Linux
OS	8^th /9^th Core™: Windows 10/11, Linux
RAID	0, 1,5
Structure
Material	SGCC
Treatment	Hard anodizing treatment
Color	Iron grey
Cooling	PWM intelligent fan
Weight	11kg (Net weight)
Dimension	482.6mm x 88.1mm x 475.7mm
Mounting	Rack mount
Environmental
Operation temp.	Operating temp.: 0~50°C Operating temp.: 0~50°C (Commercial SSD)
Storage temp.	Storage temp.: -20~+75°C
Humidity	10%~90%@40°C (non-condensation)
Vibration	SSD：3Grms@5~500Hz，random，1 hr/axis； 2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis
Shock	10G/peak (11ms sec)

Click to enlarge

Add to wishlist

SKU: ABOX-L3504-1-1 Category: Industrial Box PC Tags: 2U Industrial Computer, Box PC, machine vision, Edge computing Box PC, AI computing, expandable Box PC, Edge computing expandable Box PC, Modular computer, Rack mount

Description

System
CPU	Intel^® 6^th/7^th/8^th/9^th Core™ i3/i5/i7, Pentium, Celeron Desktop LGA1151 CPUs, Max. TDP=95W
Chipset	Intel^® H310C Chipset, TDP=6W
Memory	2 x DDR4 U-DIMM, support 2666 MHz, Dual channels, Max. up to 64GB
Storage	3 x 2.5” SATA3.0, 1x M.2 Key-M (SATA SSD, 2242/2280)
Display	1 x HDMI (Max. support resolution: 4096×2160, @ 30Hz)
Display	1 x DVI-D (Max. support resolution: 1920×1200, @60Hz)
Network	2 x Intel® Ethernet Connection; 1* I219, 1* I210
Wireless	1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion) 1 x SIM slot
Audio	1 x Mic-in + 1 x Line-out (Realtek ALC 662)
USB	4 x USB 2.0 (Type-A), 4x USB3.2 (Type-A)
PS/2	1x PS/2
COM	2 x RS232/RS485/RS422 (COM1/COM2, DB9), 4x RS232 (COM3/4/5/6, jumper)
GPIO	Optional 16x GPIO
Expansion	1x PCIe 3.0 x16 slot
	1x PCIe 2.0 x4 slot (Gen2 x4)
	5x PCI slots (32-bit / 33 Mhz)
	1x Mini-PCIe
AI Computing	Max. support NVIDIA GeForce GTX3090 (PCIe 16x)
Power	2U standard PSU
LED/Switch	1 x power button (including status LED light)
Watchdog	Programmable 255 seconds
OS	6^th /7^th Core™: Windows 7/10/11, Linux
OS	8^th /9^th Core™: Windows 10/11, Linux
RAID	0, 1,5
Structure
Material	SGCC
Treatment	Hard anodizing treatment
Color	Iron grey
Cooling	PWM intelligent fan
Weight	11kg (Net weight)
Dimension	482.6mm x 88.1mm x 475.7mm
Mounting	Rack mount
Environmental
Operation temp.	Operating temp.: 0~50°C Operating temp.: 0~50°C (Commercial SSD)
Storage temp.	Storage temp.: -20~+75°C
Humidity	10%~90%@40°C (non-condensation)
Vibration	SSD：3Grms@5~500Hz，random，1 hr/axis； 2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis
Shock	10G/peak (11ms sec)

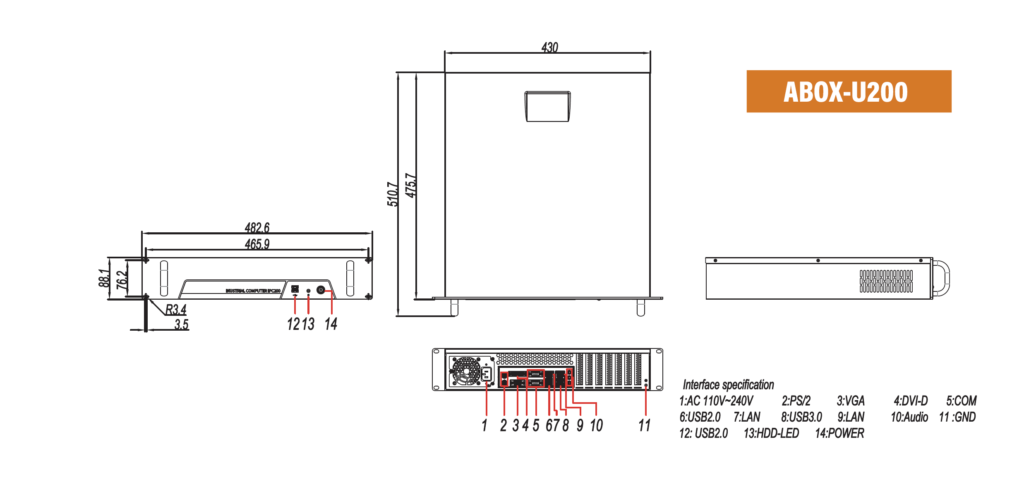

Product Dimension

2U Rack mount Industrial Computer Dimension

Technical Data

Product Dimension
