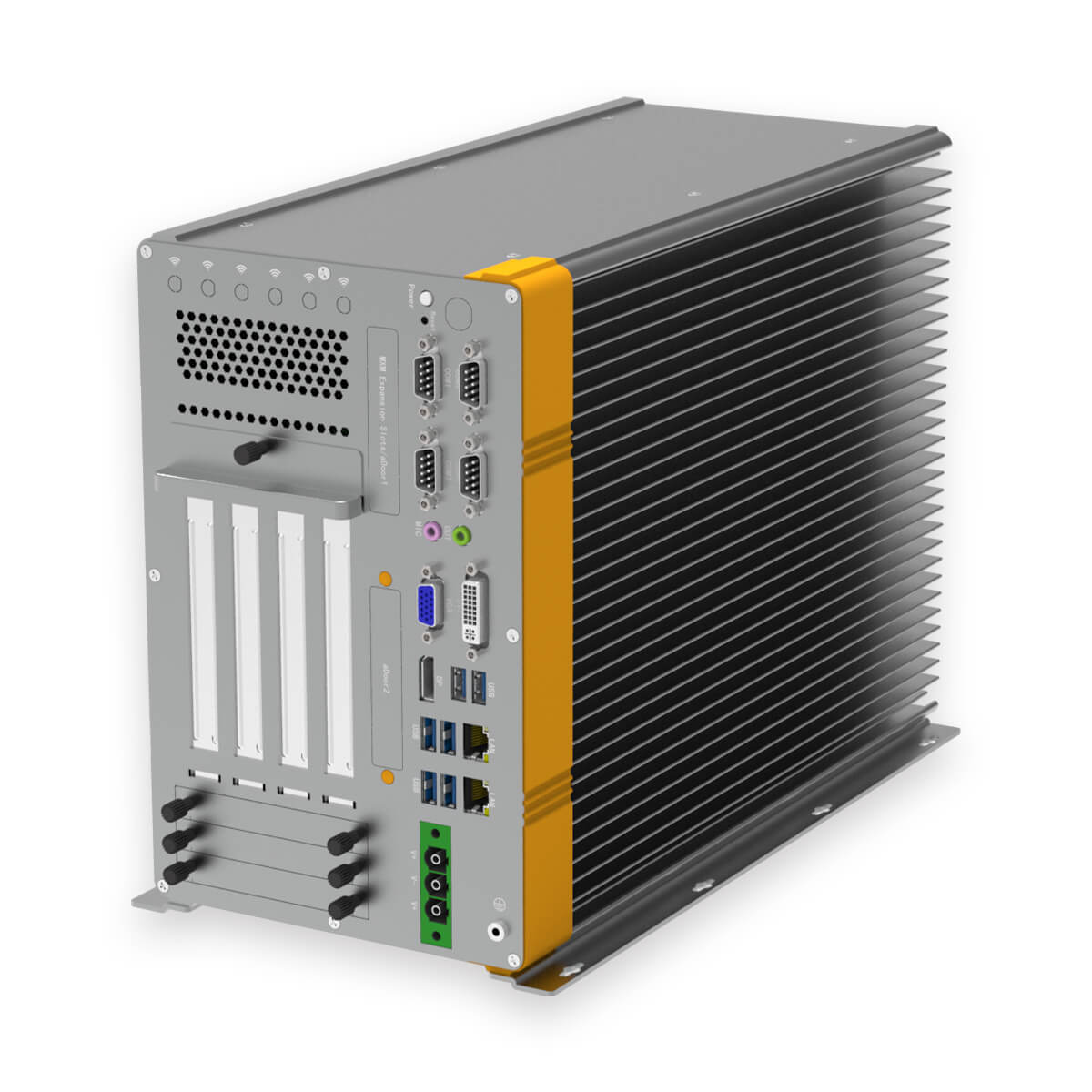

Mainkco IPC ABOX-E717-PRO is equipped with Intel Q170 Chipset and 6th to 9th Gen. CPU Processors, which can easily cope with various data processing challenges and meet high-performance requirements. It Provides 2 SO-DIMM notebook memory slots, dual-channel DDR4 slots, and memory frequency up to 3200Mhz. It has multiple storage hard drives and an innovative pull-out hard drive design, and the storage also supports RAID 0/1/5. ABOX-E717-PRO is equipped with new fanless heat dissipation design. It quickly dissipates CPU heat through efficient heat pipes and heat sinks, and supports CPUs with a maximum TDP=65W.
ABOX-E717-PRO is equipped with rich expansion card slot configuration, including PCIe/PCI and PCIe/M.2, which can meet various types of equipment & network card module function modules. At the same time, ABOX-E717-PRO is equipped with a new higher-power, high-reliability, wide-voltage power module. The rated power can be selected from 600/800/1000W to provide continuous and stable power supply for applications and ensure the long-term stable operation of the equipment in industrial projects.
New Powerful AI Edge Computing Server Computer ABOX-E717-PRO
Key features:
Support Intel® 6th/7th/8th/9th Core™ i7/i5/i3 desktop multicore processors;
Q170 industrial chipset;
2 DDR4 SO-DIMM, Dual channels, Max. up to 64GB;
2 GbE, 4 DB9 COM ports;
Max. support 300W PCIe expansion card;
M.2 and 2.5” SATA, total 3 storage slots;
MXM, aDoor module expansions, PCIe/PCI expansion slots;
Wide DC 18~60V voltage input.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| CPU | Intel® 6th/7th/8th/9th Core™ i3/i5/i7 Desktop LGA1151 CPU, TDP=65/35W Desktop CPUs |
| Chipset | Intel® Q170 Chipset |
| BIOS | AMI UEFI BIOS, support watchdog timer |
| Memory | 2 x DDR4 U-DIMM, Dual channels, Max. up to 64GB |
| Storage | 3 x 2.5〞HDD/SSD, quick release bays, support RAID 0,1,5 |
| 1 x M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA auto detect, 2242/2280) | |
| Display | 1 x DP (Max. support resolution: 4096×2160, @ 60Hz) |
| 1 x DVI-D (Max. support resolution: 1920×1200, @60Hz) | |
| 1 x VGA (Max. support resolution: 1920×1200, @60Hz) | |
| Network | 2 x Intel® Ethernet Connection; LAN1: I210AT, LAN2: I219-LM/V |
| Wireless | 1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion)
1 x SIM slot |
| Audio | 2x 3.5mm Jack (Mic-in + Line-out) |
| USB | 6 x USB 3.0 (Type-A, 5Gbps) |
| COM | COM1/COM2: RS232(RS485/RS422, BIOS controllable); COM3/4: RS232 |
| GPIO | 16-bit GPIO (Wafer) |
| Expansion slots | 1* aDoor Bus (Optional 4*LAN, 4*PoE, 6*COM, 16GPIO modules) |
| 1* Mini-PCIe (PCIe x1 Gen 2 + USB3.0, with 1* SIM Card) | |
| 1* M.2 Key-B (PCIe x1 Gen 2 + USB3.0, with 1* SIM Card, 3042/3052) | |
| 2* PCIe x16 (x8/x8) + 2* PCI, or 2* PCIe x16(x8/x8) + 1* PCIe x4 (x4); Card length < 320mm, Power<450W) | |

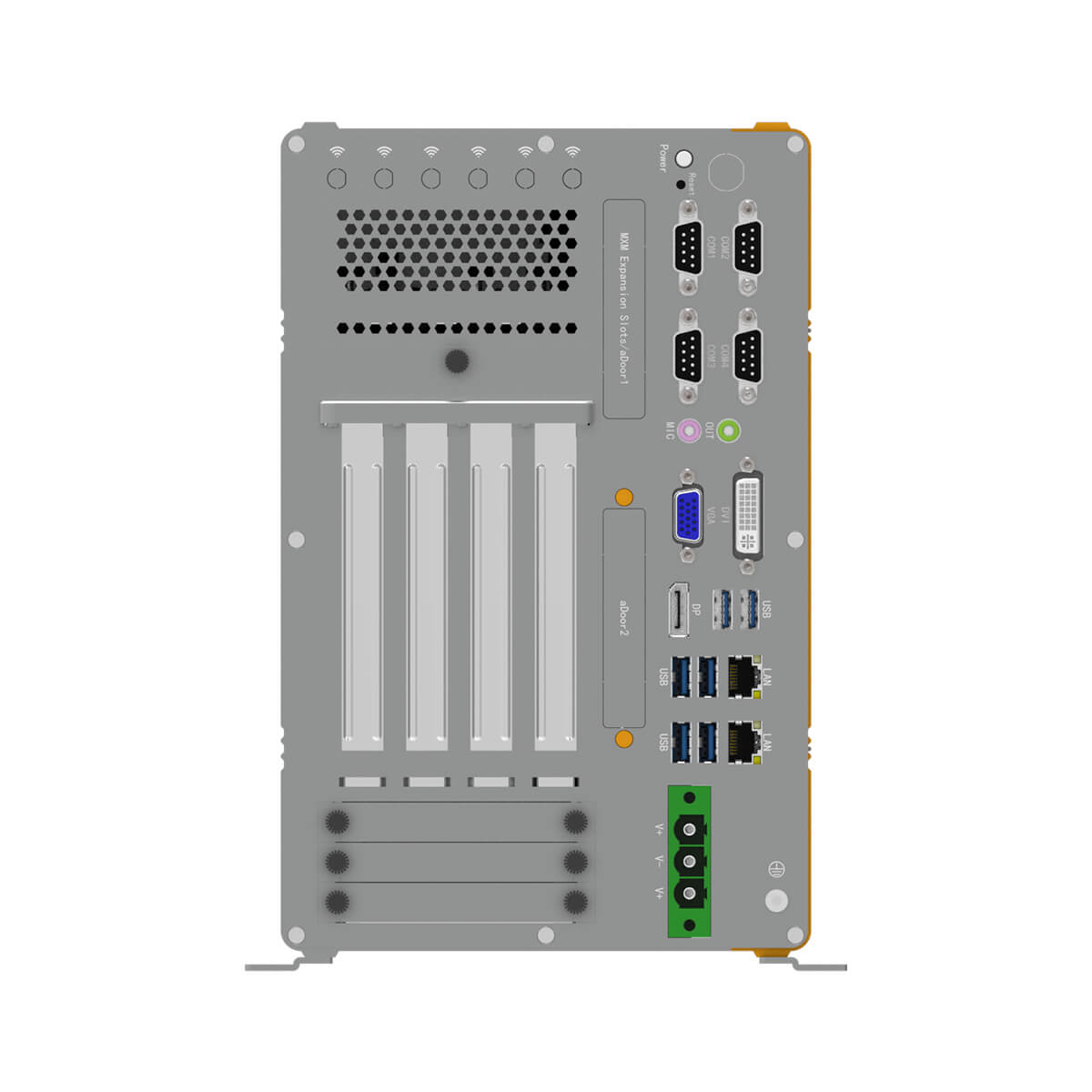

| Rear I/O | 6* Antenna hole |
| Power Supply | DC, AT/ATX, 3 pins connector (P=10.16), DC 18 ~60V (P=600/800/1000W, default 800W) |
| LED/Button | 1* Power Button + Power LED, 1* system Reset Button (Hold 0.2 to 1s to restart, hold 3s to clear CMOS) |
| Watchdog | Programmable 255 seconds |
| OS | 6th/7th Core™: Windows 7/10/11, Linu |
| 8th /9th Core™: Windows 10/11, Linux | |
| Structure | |
| Material | Radiator, Aluminum-alloy, SGCC |
| Treatment | Hard anodizing treatment, scratch resistant |
| Color | Iron grey |

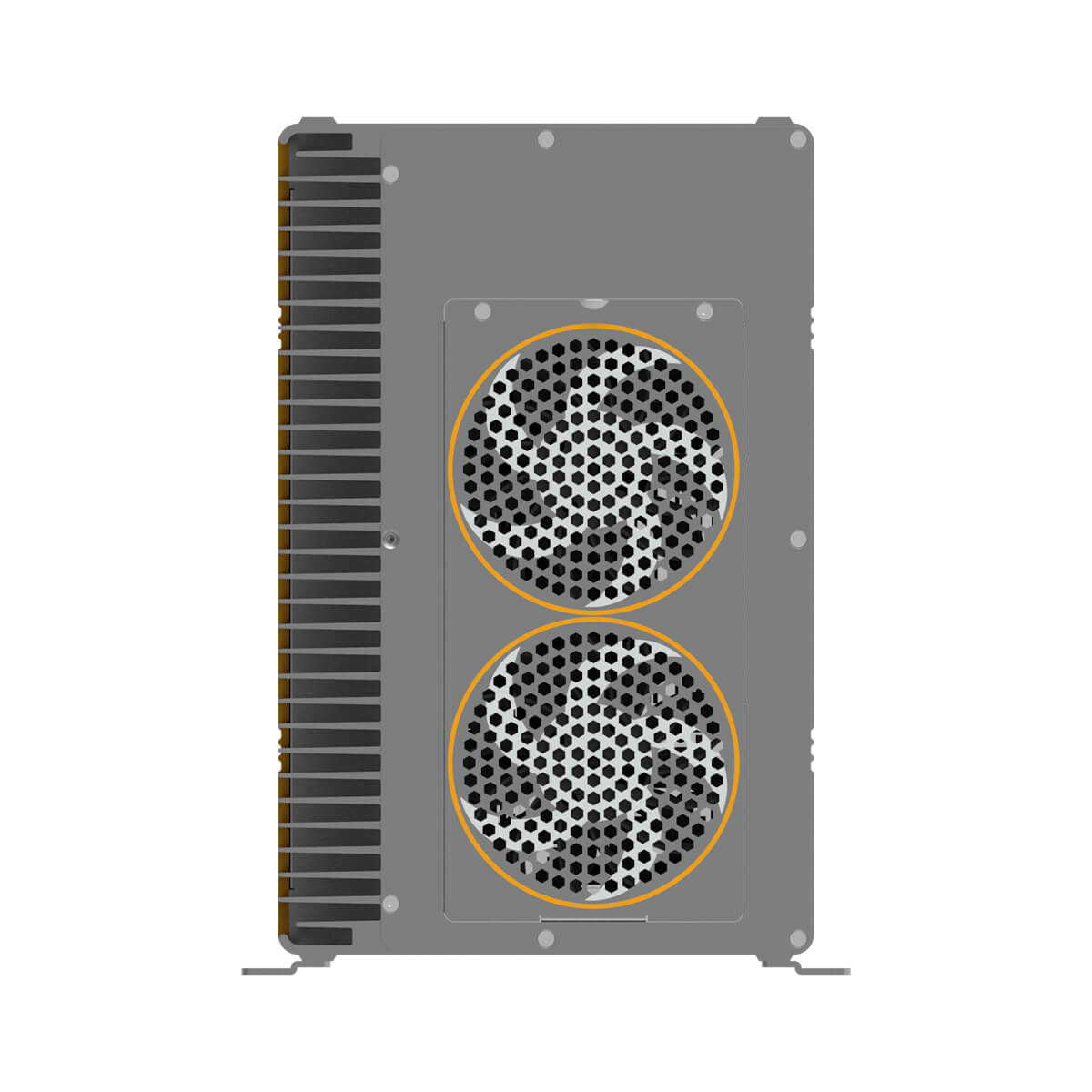

| Cooling | Fanless passive cooling (CPU), 2* 9cm PWM Fan (Optional/Internal) |
| Weight | 10.48kg (Net weight), 11.38KG (Gross Weight) |
| Dimension | 363mm(L) x 270mm(W) x 169mm(H) |
| Mounting | Desktop |
| Environmental | |
| Operation temp. | Operating temp.: -20~60°C (Industrial SSD)
Operating temp.: 0~50°C (Commercial SSD) |
| Storage temp. | Storage temp.: -40~80°C (Industrial SSD) |
| Humidity | 10%~90% RH (non-condensation) |
| Vibration | SSD：3Grms@5~500Hz，random，1 hr/axis；
2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis |
| Shock | 10G/peak (11ms sec) |
| Certification | CE/FCC, ROHS |

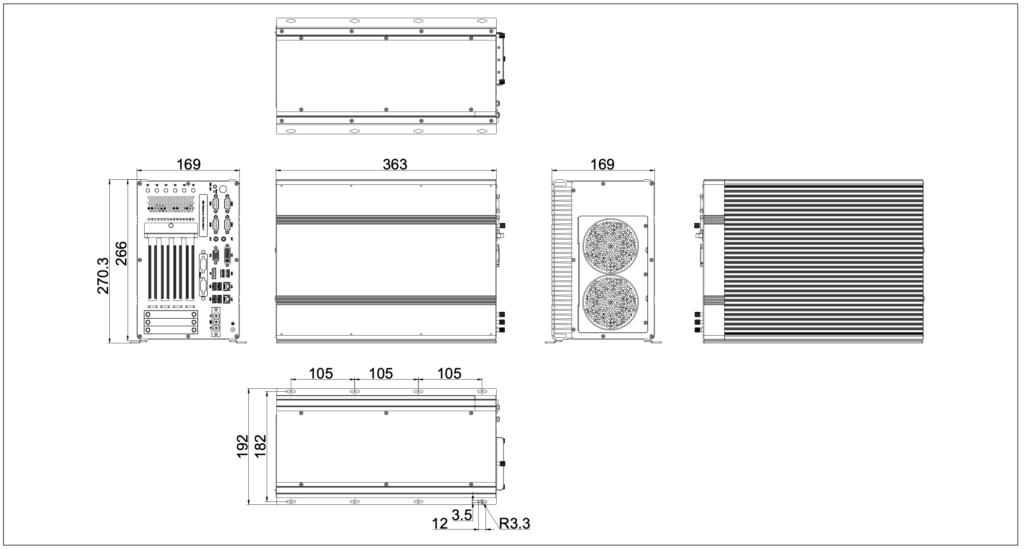

Product Dimension
Product Dimension
