Mainkco ABOX-E7PS is a high-performance computing product positioned for deep learning and artificial intelligence (AI) projects. It is based on Mainkco IPC modular flagship product model. In addition to having multiple networks, USB3.0, IO interfaces, multiple expansion cards, and multiple hard drives. Its flexible modular design supports the ultra-high computing and performance combination with Intel 8/9th processors and Geforce RTX2080Ti, plus a specially designed high-power power supply and a combined active/passive heat dissipation design, which can be used for machine vision and AI computing, Smart City and other intelligent fields to provide stable and strong computing power support.
AI Edge Computing Server Computer ABOX-E7PS
Key features:
- Support Intel® 6th/7th/8th/9th Core™ i7/i5/i3 desktop multicore processors;
- Q170 industrial chipset;
- 2 DDR4 SO-DIMM, Dual channels, Max. up to 32GB;
- expansion up to 6 Intel RJ45 ports;
- Max. support 300W PCIe expansion card;
- 4 Storage slot support;
- 4 standard PCIe expansion slot;
- Exchangeable CRPS Server Power Supply;
- support 2080TI graphic card.
"*" indicates required fields
SKU:
ABOX-E7PS
Category: AI Edge Computing
Tags: AI expandable computer, Modular computer, AI Edge Computing Server Computer, Box PC, AI Edge Computing Server, machine vision, AI Edge computing Box PC, Edge computing Box PC, AI computing, expandable Box PC, Edge computing expandable Box PC, AI expandable Box PC
Description
Technical Data
Technical Data
System | |
CPU | Intel® 6th/7th/8th/9th Core™ i3/i5/i7 Desktop LGA1151 CPU, TDP=65/35W (PWM Intelligent fan) |
Chipset | Intel® Q170 Chipset |
BIOS | AMI SPI 64Mb, support ACPI, CPU temperature, system voltage monitoring |
Memory | 2 x DDR4 SO-DIMM, 2133/2400 MHz, Dual channels, Single RAM up to 16GB, Max. up to 32GB |
Storage | 2 x 2.5〞HDD/SSD, support 5~9.5mm, hot pluggable |
1 x 2.5〞HDD/SSD, support 5~9.5mm,Internal (Optional) | |
1 x M.2 SATA 3.0(22*42mm),Internal | |
Display | 1 x DP (Max. support resolution: 4096×2304 x24bpp, @ 60Hz) |
1 x DVI-D (Max. support resolution: 1920×1200, @30Hz)
|
|
1 x VGA (Max. support resolution: 2048×1536) | |
Network | 2 x Intel® Ethernet Connection; LAN1: I210AT, LAN2: I219-LM, support WOL |
Wireless | 1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion)
1 x SIM slot |
Audio | 1 x Mic-in + 1 x Line-out |
USB | 6 x USB 3.0 |
COM | 4 x DB9 RS232 (COM1/COM2 support RS485/RS422/RS232, BIOS controllable) |
GPIO | Optional |
Expansion | 1* MXM3.0 expansion modules (support 4x GLAN, GPIO) |
2* aDoor expansion modules (Optional) | |
2* DB9 RS232 COM (Optional) | |
1* PCIe 3.0 16x + 1* PCIe 3.0 4x; Or 1* PCIe 3.0 16x + 3* PCI; or 2* PCIe 3.0 8x + 2* PCI (Card length < 320mm, Power<300W) | |
Power | AC Input, 115 ~ 220V, max. support 850W power consumption |
LED/Switch | 1 x power button (including status LED light) |
Watchdog | Programmable 255 seconds |
OS | 6th Core™: Windows 7/8.1/10 32 or 64 bits, Linux |
7th Core™: Windows 7/8.1/10 64 bits, Linux | |
8th /9th Core™: Windows 10 64 bits, Linux | |
RAID | 0, 1,5 |
Structure | |
Material | SGCC/Aluminum-alloy |
Treatment | Hard anodizing treatment, scratch resistant |
Color | Iron grey |
Cooling | PWM intelligent fan |
Weight | 7.5kg (Net weight) |
Dimension | 363.1mm(L) x 159.5mm(W) x 271.8mm(H) |
Case fan | 1* 14025 Intelligent fans |
Mounting | Desktop |
Environmental | |
Operation temp. | Operating temp.: -20~55°C (Industrial SSD)
Operating temp.: 0~50°C (Commercial SSD) |
Storage temp. | Storage temp.: -40~80°C |
Humidity | 10%~90%@40°C (non-condensation) |
Vibration | SSD:3Grms@5~500Hz,random,1 hr/axis;
2.5〞HDD:1Grms@5~500Hz,random,1 hr/axis |
Shock | 10G/peak (11ms sec) |

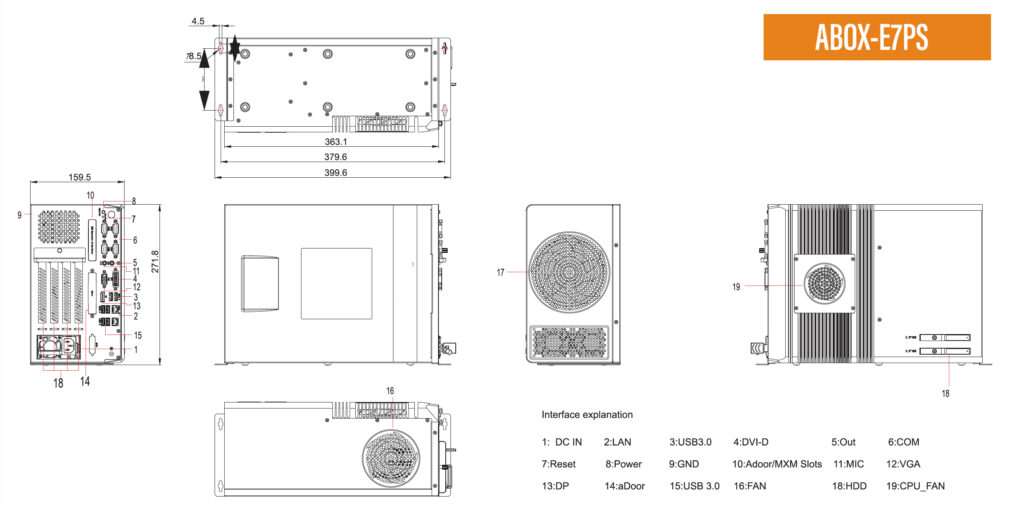

Product Dimension
Product Dimension
