Mainkco IPC ABOX-2130 is using NVIDIA Jetson Xavier NX system of modules (SOM) from our ABOX-2100 modular AI edge computing family. Its computing capacity can be up to 21 TOPS of accelerated computing power to run modern neural networks and process data from multiple high-resolution sensors to meet the requirements of a complete AI system. The ABOX-2130 AI edge computing PC is designed with rich IO interfaces for industrial and automation applications, including 3 GLAN, 4 USB3.0, 1 HDMI display…
AI edge computing with NVIDIA Jetson Xavier NX platform ABOX-2130
Key features:
- 6-Core NVIDIA Carmel Arm v8.2 64-bit processor;
- 384 core NVIDIA Volta GPU with 48 Tensor Core, 1100 Mhz;
- AI performance 21 TOPS;
- On-board 8GB memory, On-board 16GB eMMc, 1* M.2 Key-M 2280 SSD slot;
- 3*GLAN, 4*USB3.0, 1*HDMI, DC, OTG;
- 1*M.2 B-key 3042/3052 slot, 1*Mini-PCIe slot, 2* Nano Sim card slot;
- DC 12~28V power input, industrial operating temp. -20 ~ +60 ℃.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| Processor | 6-core NVIDA Carmel ARM v8.2 64-bit processor, 6MB L2 + 4MB L3 |
| AI | 21 TOPS |
| GPU | 1100 Mhz |
| 384-core NVIDA Volta GPU with 48 Tensor Cores | |
| Display | 1* HDMI (Type-A): Max. resolution up to 4K @60Hz |
| Memory | Onboard 8GB/16GB 128bit LPDDR4x 59.7GB/s |
| Storage | 16GB eMMC 5.1, 1* M.2 2280 Key-M slot (NVMe, PCIe x1), 1* TF card slot |
| Network | 1* GbE LAN (From SOM), 2* Intel I210AT GbE LAN |
| USB | 4* USB3.0, 1*USB2.0(Internal, wafer), 1* Micro-USB (OTG) |
| Audio | ES8336 Audio chip (internal, wafer) |
| GPIO | 16 bits DIO (Internal, wafer) |
| CAN | 1* CAN-Bus (Internal, wafer) |
| DC | DC 12~28V (1* 2Pin Terminal) |
| Expansion | 1* Mini-PCIe slot (PCIe x1, USB2.0) |
| 1* M.2 B-key 3042/3052 slot (USB3.0 + USB2.0) | |
| 2* Nano SIM Card | |
| Button/LED | 1* Power button, with LED light |
| 1* Recovery Button | |
| 1* System Reset Button | |
| OS | JetPack 4.6.3 |
| Structure | |
| Treatment | SGCC & Aluminum Alloy, Anodizing and painting |
| Color | Iron Grey |
| Cooling | Fan-less design |
| Weight | Around 1.5 kg (Net weight) |
| Dimension | 150.7mmx 144.5mm x 45mm |
| Mounting | Desktop, Din-Rail |
| Environmental | |
| Operation temp. | Operating temp.: -20~60°C (Industrial SSD) |
| Storage | -40~80°C |
| Humidity | 10%~95%@40°C, non-condensation |
| Vibration | 3Grms@5~500Hz，random，1 hr/axis； |
| Shock | 10G, half sine (11ms sec) |

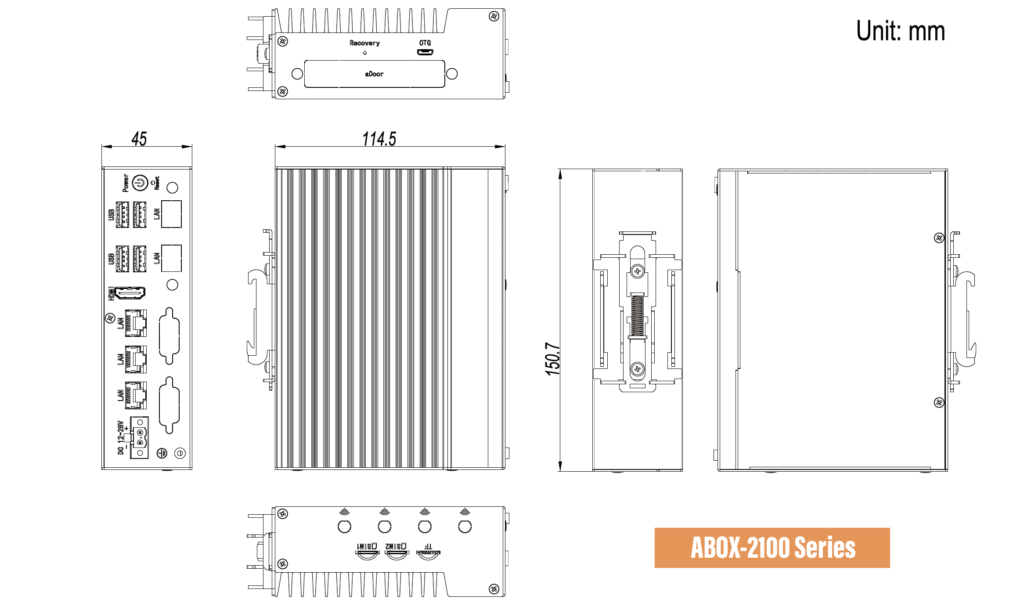

Product Dimension
Product Dimension
