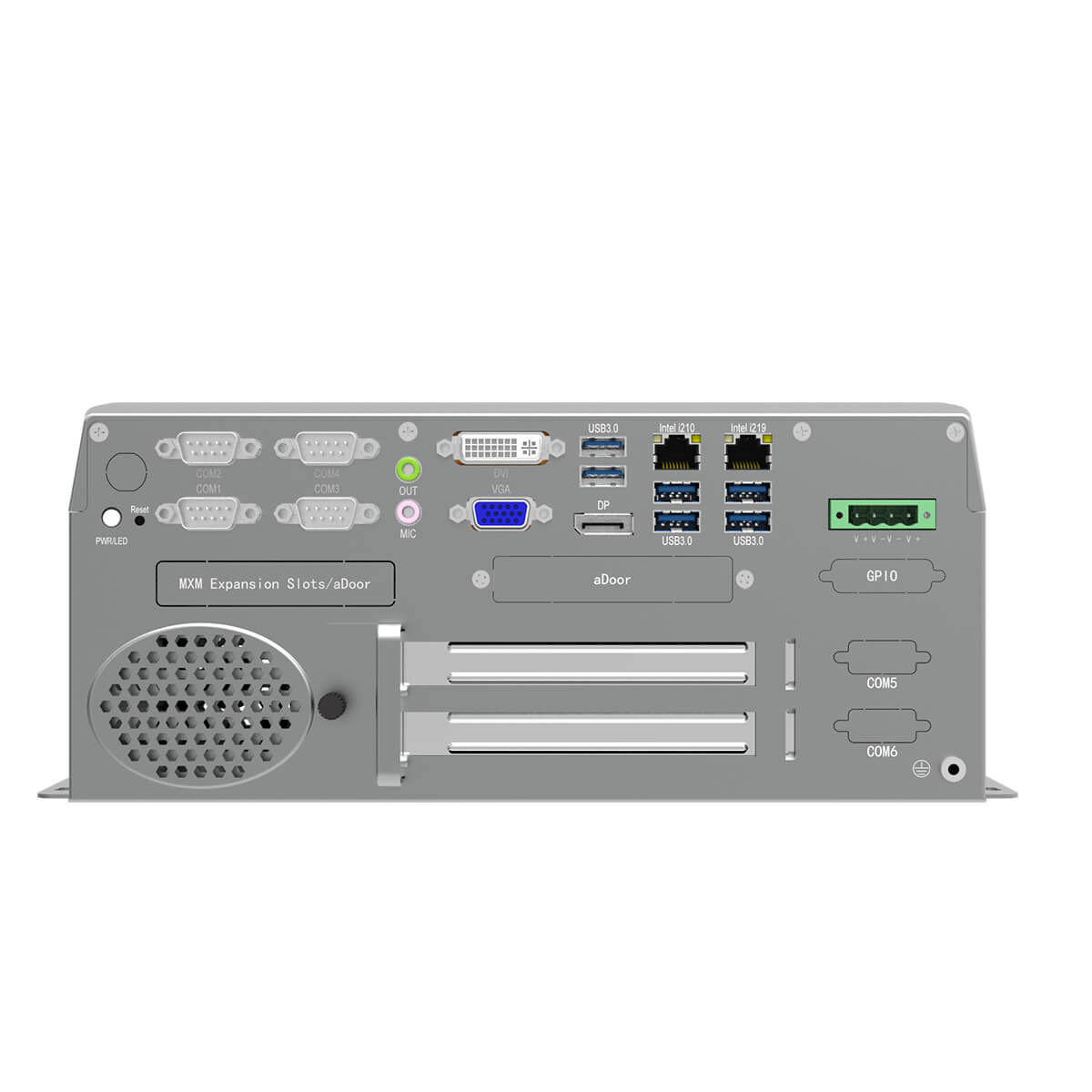

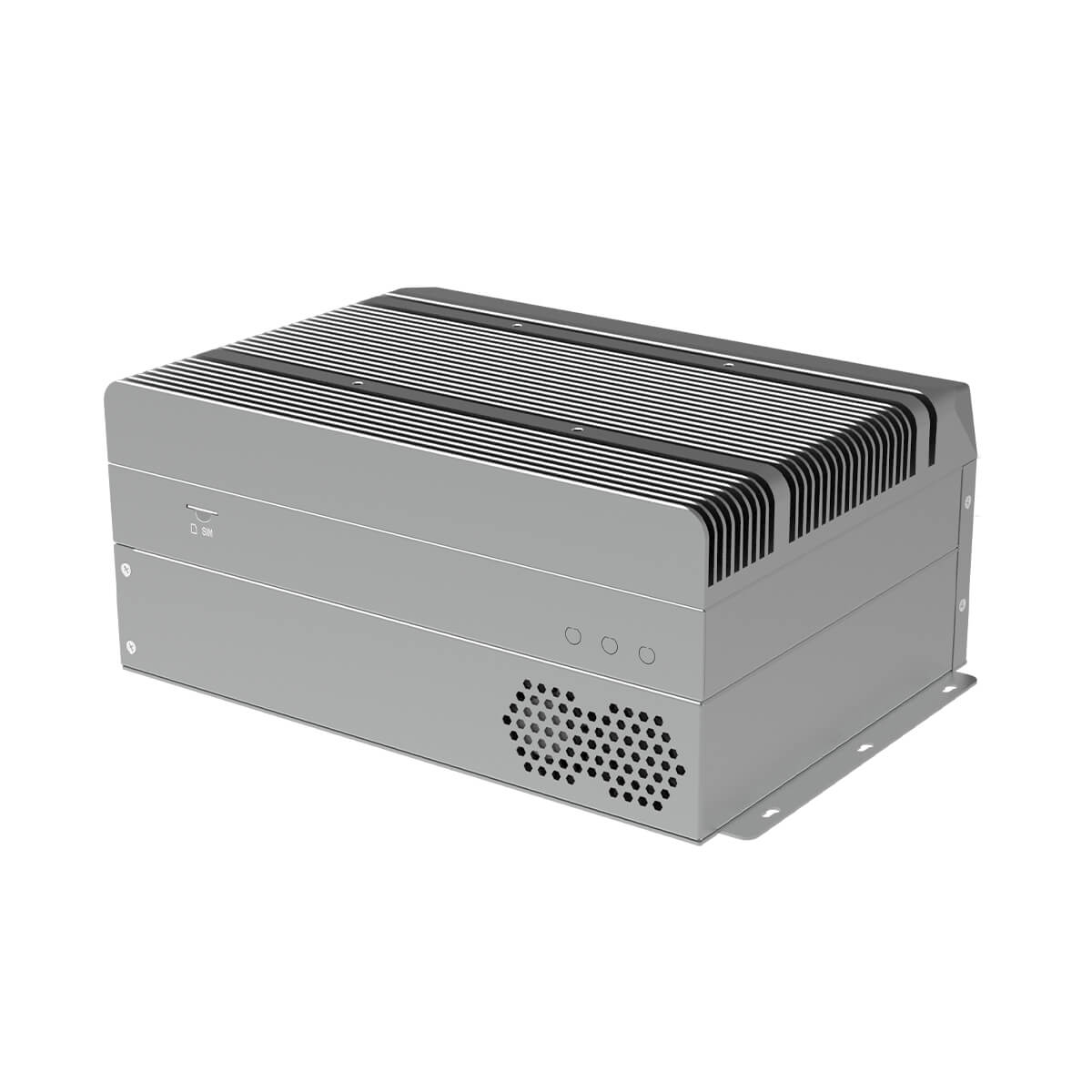

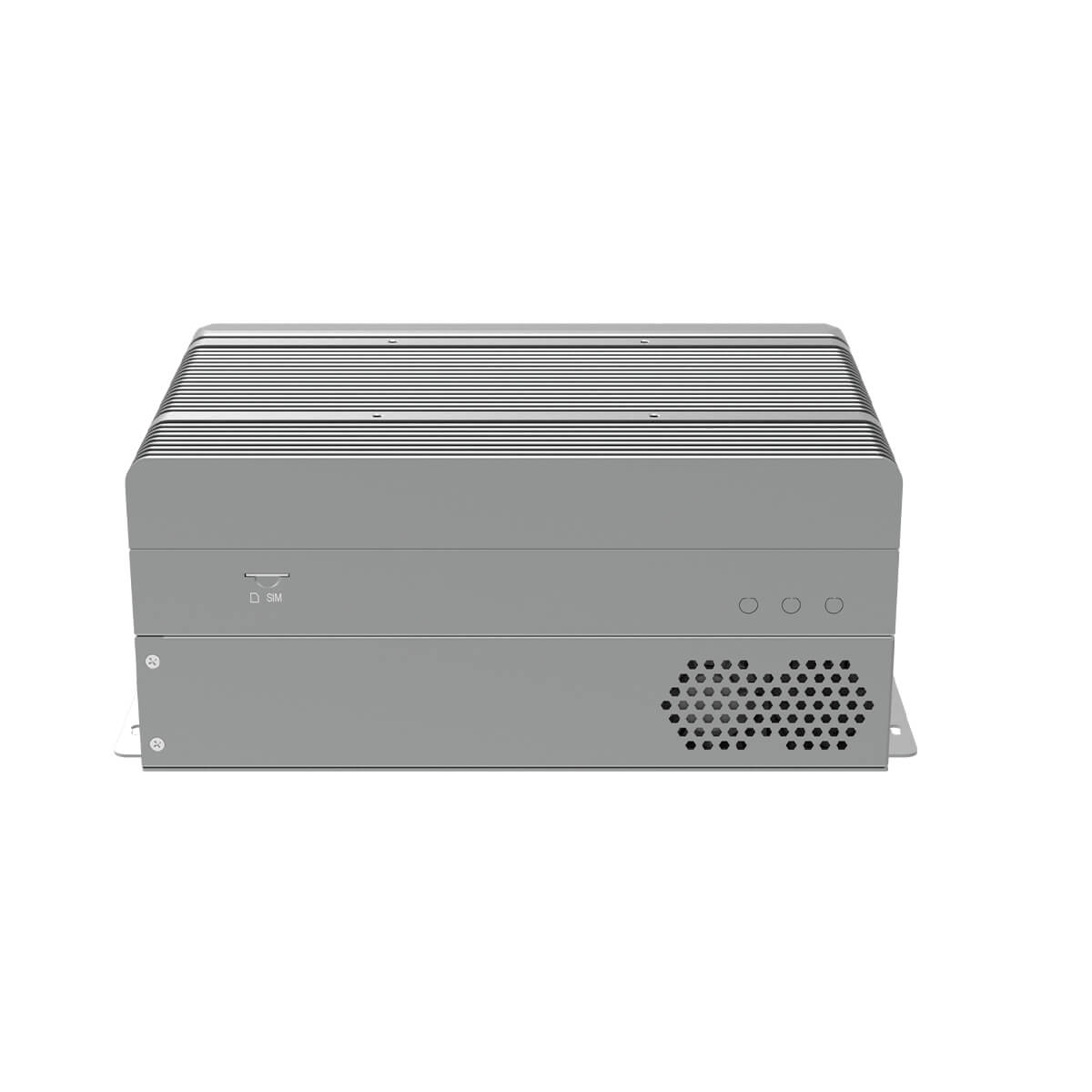

AI Vision computing Box PC ABOX-E7ML

Key features:

Support Intel® 6^th/7^th/8^th/9^th Core™ i7/i5/i3 desktop multicore processors;
Q170 (Alternative C236) industrial chipset;
2 DDR4 SO-DIMM, Dual channels, MAX. up to 32GB;
3 Display ports, support 3 hard disks storage;
expansion up to 10 USB ports, 6 Intel RJ45 ports, 6 COM ports;
Max. up to support Cambricon MLU270-S4 AI card (128TOPS);
Max. up to support NVIDIA GeForce GTX1660TI graphic card;
2 standard PCIe expansion slots, Dual MxM/aDoor module expansion slots;
Support wide voltage DC 9V ~ 36V power input

"*" indicates required fields

Mainkco AI vision computing Box PC ABOX-E7ML is a sister model of ABOX-E7DL. It is based on the Intel LGA1151 6th/7th/8th/9th Desktop 35W CPU processors platform. It directly uses a full-performance desktop platform processor. ABOX-E7ML AI vision computing Box PC provides high AI computing capability, max. support Cambricon MLU270-S4 intelligent acceleration card or NVIDIA GeForce GTX1660TI Graphic card. The ABOX-E7ML offers dual modules expansion slots (1* MXM/aDoor, 1* aDoor) to meet different IO requirement of industrial applications, and multiple high-speed I/O interfaces. ABOX-E7ML AI vision computing PC is designed with rich IO interfaces for industrial applications, including 2 GLAN, 6 USB3.0, 4 RS232, 1 DVI, 1 VGA, 1 DP displays.

In addition to high-performance computing and high-speed communication, it supports 2 hard driver as the storage. The AI vision computing Box PC ABOX-E7ML offers dual high speed PCIe expansion slots, so as to be an ideal AI vision computing Box PC for machine vision application, together with various AI or smart industries applications.

Technical Data

System
CPU	Intel^® 6^th/7^th/8^th/9^th Core™ i3/i5/i7 Desktop LGA1151 CPU, TDP=35W (fan-less)
Chipset	Intel^® Q170 Chipset (Alternative C236 chipset)
AI computing	Max. support Cambricon MLU 270-S4 intelligent acceleration card, 128TSOP (INT8)
AI computing	Max. support NVIDIA GeForce GTX1660TI graphic card
Memory	2 x DDR4 SO-DIMM, 2133/2400 MHz, Dual channels, Max. single RAM up to 16GB, Max. up to 32GB
Storage	1 x 2.5〞HDD, support 5~9.5mm，Internal 1 x M.2 SATA 3.0（22*42mm），Internal
Display	1 x DP (Max. support resolution: 4096×2304 x24bpp, @ 60Hz) 1 x DVI-D (Max. support resolution: 1920×1200, @60Hz) 1 x VGA (Max. support resolution: 1920×1200, @60Hz)
Network	2 x Intel® Ethernet Connection; LAN1: I210/I211-AT, LAN2: I219-LM, support WOL
Wireless	1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion) 1 x SIM slot
Audio	1 x Mic-in + 1 x Audio-out
USB	6 x USB 3.0
COM	4 x DB9 RS232 (COM1/COM2 support RS485/RS422/RS232, BIOS controllable)
GPIO	8GPIO, or 16 GPIO (Optional)
Expansion	1* MXM/aDoor modules expansion slot, 1* aDoor modules expansion slot
Expansion	1* PCIe 3.0 16x + 1* PCIe 3.0 4x; Or 1* PCIe 3.0 16x + 1* PCI (Card length < 185mm, TDP<130W)
Power	DC 9~36V input (1 x 4pin 5.08 phoenix terminal, with hole lock)
LED/Switch	1 x power button (including blue LED light)
Watchdog	Programmable 255 seconds
OS	6^th Core™: Windows 7/8.1/10 32 or 64 bits, Linux; 7^th Core™: Windows 7/8.1/10 64 bits, Linux 8^th /9^th Core™: Windows 10 64 bits, Linux
Structure
Material	SGCC/Aluminum-alloy
Treatment	Hard anodizing treatment, scratch resistant
Color	Iron grey, industrial grey color
Cooling	Passive dissipation
Weight	4.65kg (Net weight)
Dimension	268mm(L) x 194.2mm(W) x 118.5mm(H)
Case fan	2* 4010 Intelligent fans
Mounting	Desktop, wall mount, VESA mount
Environmental
Operation temp.	Operating temp.: -20~60°C (Industrial SSD) Operating temp.: 0~50°C (Commercial SSD)
Storage temp.	Storage temp.: -40~80°C
Humidity	10%~90%@40°C (non-condensation)
Vibration	SSD：3Grms@5~500Hz，random，1 hr/axis； 2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis
Shock	10G/peak (11ms sec)

Technical Data

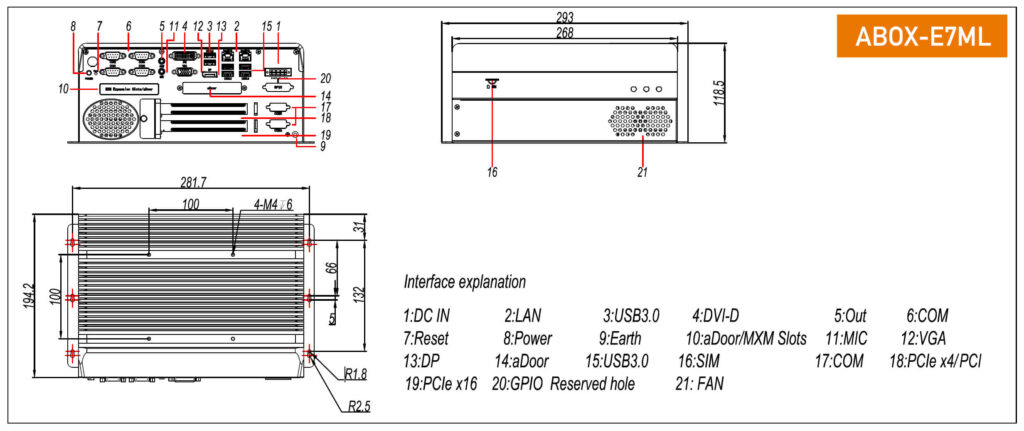

Product Dimension
