ABOX-E70L-Q670 is a new launched AI vision computing Box PC product developed based on the Intel LGA1700 12th/13th Desktop 35W multi-cores CPU processors platform. It adapts the upgraded industrial Q670 chipset (Alternative Q670E). In addition to the modular concept design, it also supports 1 aDoor slot for various of high-speed I/O module expansion. ABOX-E70L-Q670 rugged Box PC is designed with rich IO interfaces for industrial applications. In addition to high-performance computing and high-speed communication, it also supports 3 drives and support RAID 0/1 feature, providing a secure data warehouse, and through the combination of modules. The newly designed dynamic heat dissipation scheme and the molded aluminum alloy high-profile housing providing an ideal embedded design for vision computing applications.

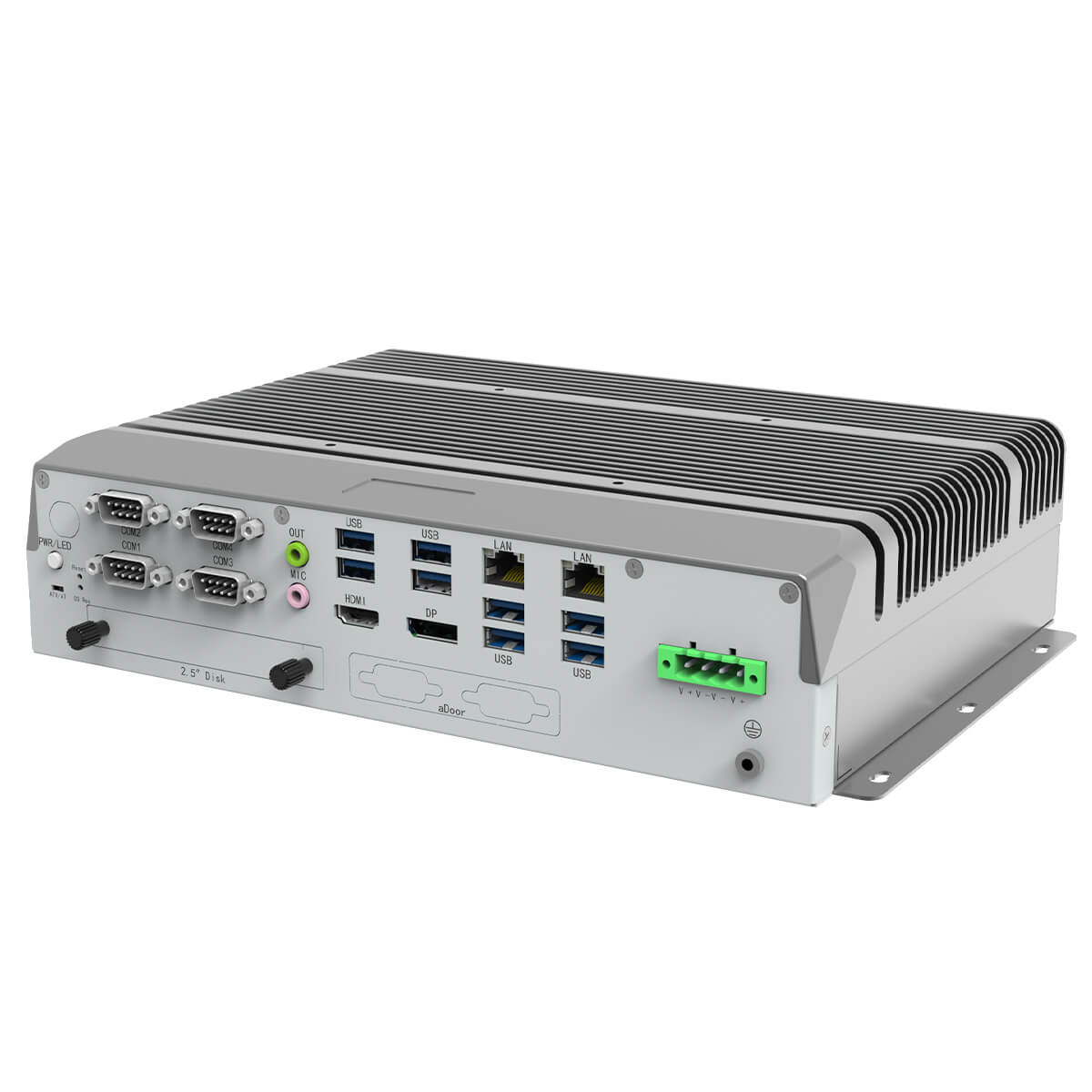

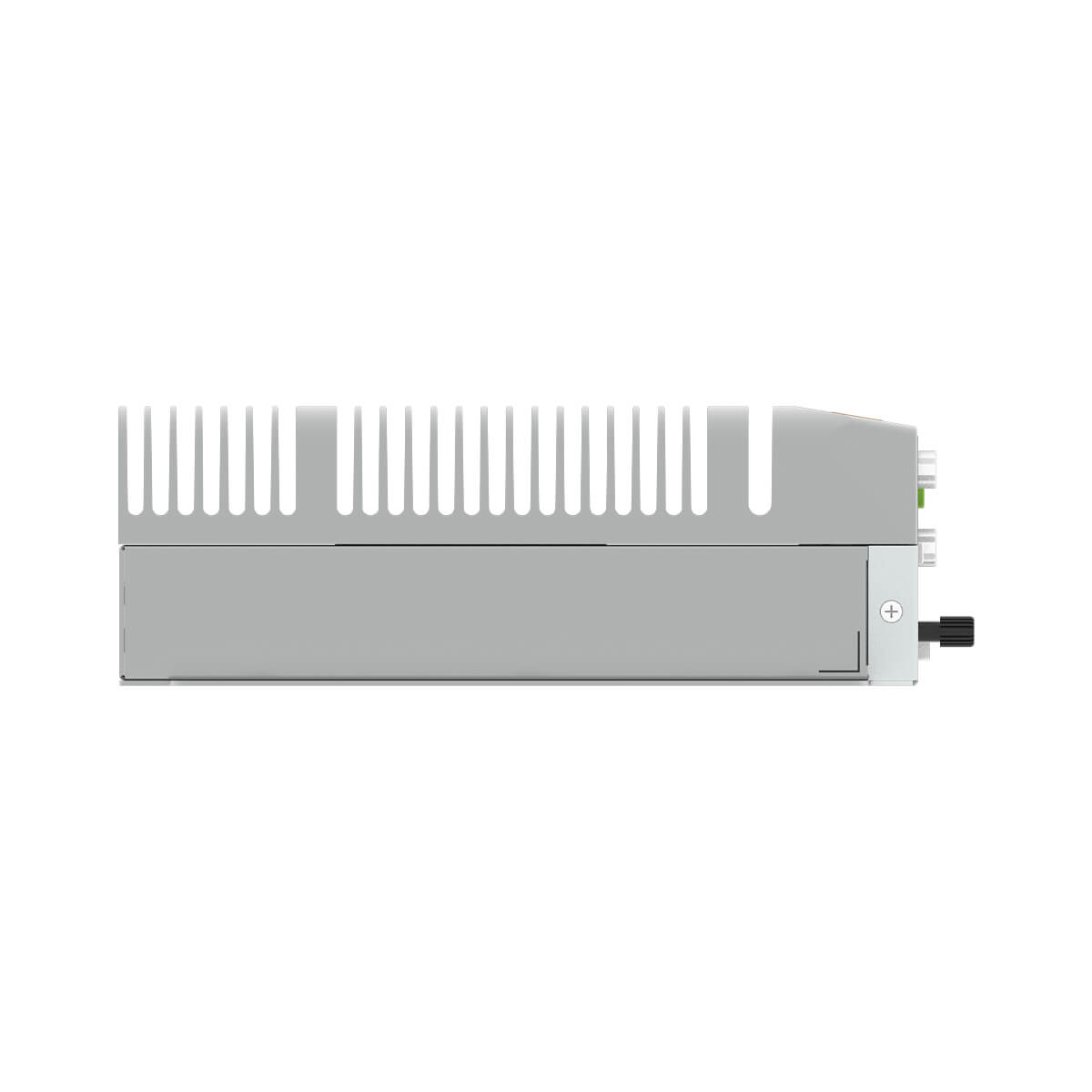

AI Vision Edge Computer ABOX-E70L-Q670
Key features:
Support Intel® 12th/13th Core™ i9/i7/i5/i3 desktop 35W multicore processors;
Q670/Q670E industrial chipset;
2 DDR4 SO-DIMM, Dual channels, Max. up to 64GB;
3 Display ports, support 3 hard disks storage (Support RAID 0/1);
2 USB3.2 Gen2 x1, 6 USB3.2 Gen1 x1 Type-A ports;
1 HDMI, 1 DP1.4a video output;
2 RS232/RS485/RS422, 2 RS232 ports;
Support wide voltage DC 12V ~ 36V power input.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| CPUs | Intel® 12th/13th Core™ i3/i5/i7/i9, Pentium, Desktop LGA1700 CPUs, TDP=35W (fan-less) |
| Chipset | Intel® Q670 Chipset (Alternative Q670E chipset) |
| Memory | 2 x DDR4 SO-DIMM, up to 3200MHz, Dual channels, Max. single RAM up to 32GB, Max. up to 64GB |
| Storage | 1 x 2.5〞SATA SSD, hot pluggable
1 x 2.5〞SATA SSD, Internal (optional) 1 x M.2 Key-M slot (PCIe x4 Gen4 + SATA 3.0, NVMe/SATA Auto detect 2280) |
| Display | 1 x DP1.4a (Max. resolution: 4096×2160 @ 60Hz)
1 x HDMI 1.4b (Max. resolution: 4096×2160, @30Hz) |

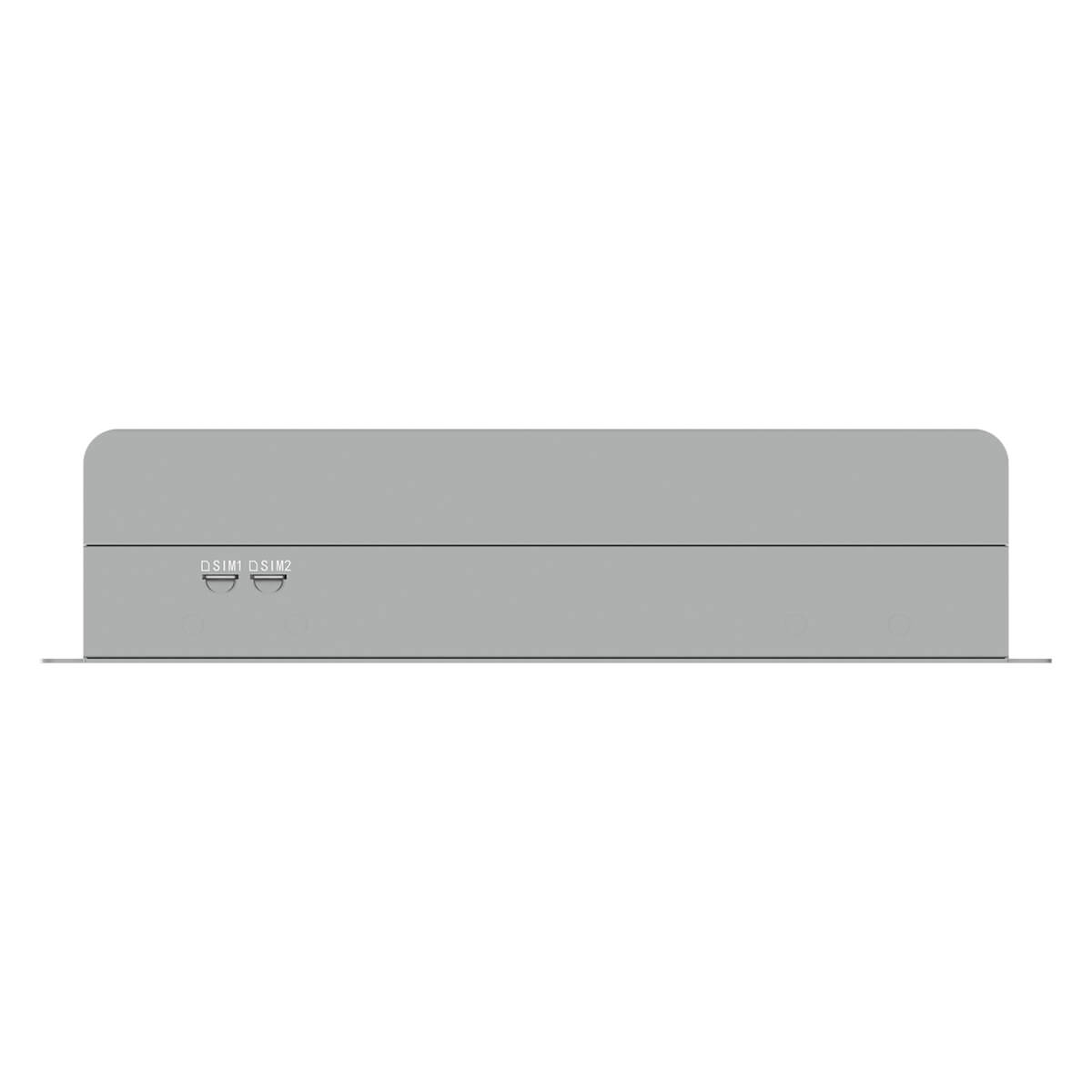

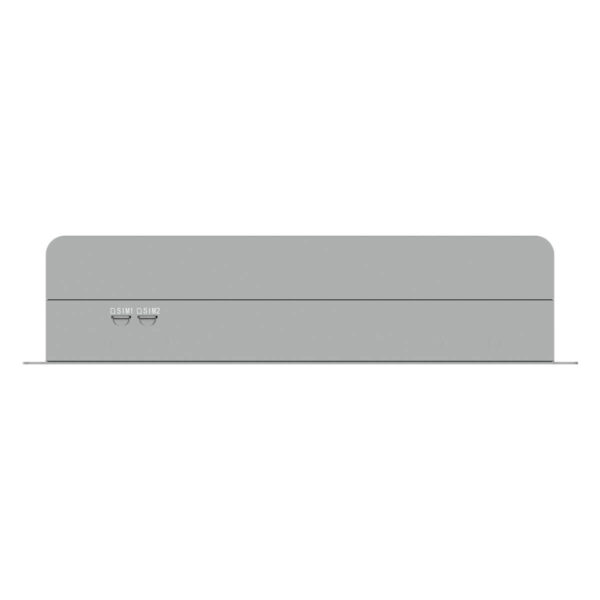

| Network | 2 x Intel® Ethernet Connection; LAN1: i219-LM/V, LAN2: i225/i226-LM/V, 2.5GbE |
| Wireless | 2 x Mini-PCIe (PCIe x1 Gen3 + USB2.0, 4G/Wi-Fi + BT, with 2* Nano Sim Card); 1x M.2 Key-E (PCIe x1 Gen4 + USB2.0, Wi-Fi + BT, 3052)
1 x SIM slot |
| Audio | 2x 3.5mm Jack (Line-out + Mic) |
| USB | 2 x USB 3.2 Gen2 x1 (Type-A); 6x USB3.2 Gen1x1 (Type-A) |
| COM | 2x DB9 RS232 (COM1/COM2 support RS485/RS422/RS232, BIOS controllable); 2x RS232 (COM3/4) |
| GPIO | 1x GPIO (8x DI, 8x DO, wafer) |
| Expansion | 1* aDoor expansion slot |
| Power | DC 12~36V input (1 x 4pin 5.08 phoenix terminal, with hole lock) |
| Button | 1x power Button/LED; 1x AT/ATX Switch; 1x OS recover Button; 1x System Reset Button |
| Watchdog | Programmable 255 seconds |
| OS | Windows 10/11; Linux |
| RAID | 0, 1 |
| Structure | |
| Material | SGCC/Aluminum-alloy |
| Treatment | Hard anodizing treatment, scratch resistant |
| Color | Iron grey, industrial grey color |
| Cooling | Fan-less design |
| Weight | 4.12kg (Net weight) |
| Dimension | 268mm(L) x 194.2mm(W) x 67.7mm(H) |
| Mounting | Desktop, wall mount, VESA mount (100 x 100mm) |
| Environmental | |
| Operation temp. | Operating temp.: -20~60°C (Industrial SSD)
Operating temp.: 0~50°C (Commercial SSD) |
| Storage temp. | Storage temp.: -40~80°C |
| Humidity | 10%~90%@40°C (non-condensation) |
| Vibration | SSD：3Grms@5~500Hz，random，1 hr/axis；
2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis |
| Shock | 10G/peak (11ms sec) |

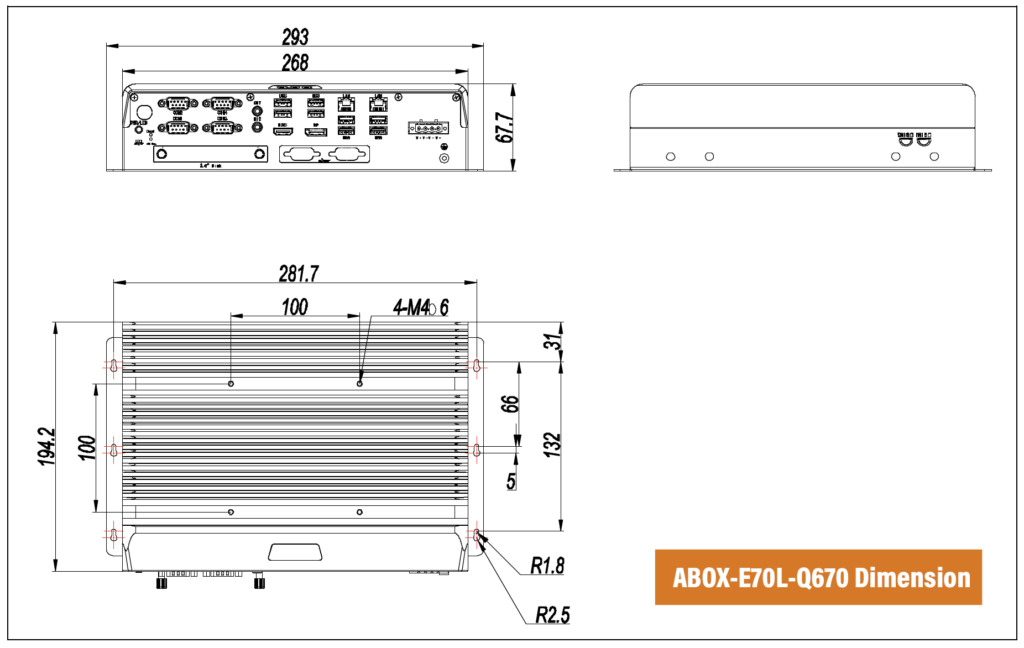

Product Dimension
