Background:
As 5G technology and industry 4.0 concept are deployed in more and more applications, industrial robots started to play an increasingly important role on site, with the requirements of higher stability and performance. To address such requests MAINKCO ABOX-3000 / 7000 series are developed to deliver super computing performance, compact size and flexible configurations.
Application Strengths:
1. Designed as per modular concept, ABOX-3000/7000 integrates multiple CPU platforms including Baytrail, Skylake /Kabylake-u, Coffeelake i3 / 5 / 7, to meet the high-speed data acquisition, communication and super computing capability.
2. The large area aluminum fin, high efficiency heat pipe and the main / passive multiple heat dissipation design of PWM fan, along with the all-aluminum alloy strong solid body built through the mold, can ensure its long-term operation.
3. ABOX-3000/700 also deliver dual Intel Gigabit network, multiple high-speed USB3.1 and 4 multi-function high-speed serial ports, multi-channel isolation IO, multiple high-speed network and other functions of the expansion, as well as a variety of AI acceleration card support.
4. Multiple mount support such as DIN RAIL, wall mount make ABOX-3000/7000 able to meet complicated applications for various industrial scenarios.
MAINKKCO Solution:
For the above requirements, MAINKCO offers two different product solutions to meet customer multi-scenario application requirements:
1. ABOX-3000 Series:

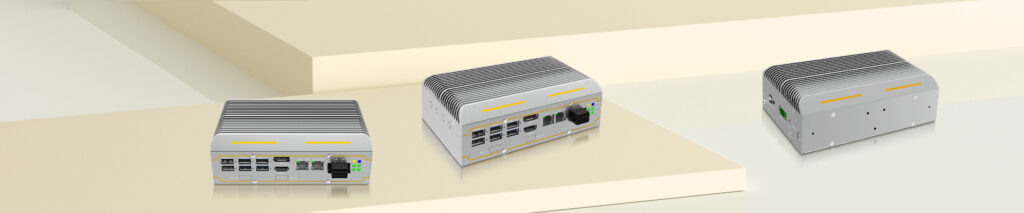

Intel ® 6 / 7 generation U series Celeron® / i3 / i5 / i7, J1900 mobile CPU, SoC chip, 2xIntel1000Mbps independent network, both HDMI and DP + + ultra HD (4K) video interface, support dual 4G redundant communication, 2*USB2.0+4 * USB3.0, modular design.ABOX-3010:
- Rugged & Compact, fanless design box structure;
- On-board Intel 6th /7th Celeron, Core i3/i5/i7 -U series processors;
- Single DDR4 memory, up to 16GB, 1* M.2 2242/2280 SSD storage;
- 2* GLAN, optional 4G, WIFI/BT expansion, support dual 4G communication;
- 1 * HDMI and 1* DP++ (Ultra HD 4K) display ports;
- 2* USB2.0, 4* USB3.0, 4*COM, 1*HDMI, 1*DP++;
- DC 12V power input, industrial operating temp. -20 ~ +60
2. ABOX-7000 Series:
Intel Coffee LakeL GA11518 / 9th Pentium / i3 / i5 / i7 series 35WCPU, with B360 chip, 2xIntel1000Mbps independent network, with both HDMI and DP + + ultra HD (4K) video interface, support dual 4G redundant communication, 2*USB2.0+4 * USB3.0, PWM smart fan active heat dissipation.
ABOX-7020:
- Rugged & Compact design box structure;
- Intel LGA1151 6th/7th/8th/9th Pentium, Core i3/i5/i7 35W desktop processors;
- Single DDR4 memory, up to 16GB, 1* M.2 2242/2280 SSD storage;
- 2* GLAN, optional 4G, WIFI/BT expansion, support dual 4G communication;
- 1 * HDMI and 1* DP++ (Ultra HD 4K) display ports;
- 2* USB2.0, 4* USB3.0, 8*COM, 1*HDMI, 1*DP++;
- PWM intelligent fan;
- Standard aDoor/MXM expansion modules slots;
- DC 12V power input, industrial operating temp. -20 ~ +60 ℃.
Application Summary:
MAINKCO ABOX-3000 / 7000 series products works as a perfect solution in not just the industrial low-speed robot control system platform, but also in segments such as machine vision, edge computing, intelligent transportation, automation control, etc..
