Mainkco ABOX-D3302 model is a compact-sized stable and reliable AI edge computing server. It supports wall-mount and desktop installation methods, and is suitable for various types of industrial and intelligent places. At the same time, combined with the modular design concept, through a simple combination of modules, combined with the expansion card slot, it can be freely and flexibly expanded to form a variety of product configurations with different interfaces and different performance, which can be widely used in communications, finance, electricity, transportation, Medical, industrial automation, machine vision and AI computing, Smart City and other intelligent fields and other fields.
Compact AI Computing Server ABOX-D3302
Key features:
Support Intel® 8th ~ 9th Core™ i7/i5/i3, Pentium, Celeron Desktop multicore processors;
Intel H310 industrial chipset, TDP=6W;
2* DDR4 2400 Mhz, Dual channels, Max. up to 32GB;
1* SATA3.0 and 1* mSATA Storage slot;
2* GLAN, 4* USB3.0, 6* USB2.0, 1* HDMI, 1* VGA;
1* Mini-PCIe slot, optional 3G/4G, Wi-Fi/BT wireless expansion;
Optional 1* PCIe 3.0 x16 slot, or 2* PCI expansion slots;
1U standard power supply.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| CPU | Intel® 8th to 9th Core™ i3/i5/i7, Pentium, Celeron Desktop LGA1151 CPUs, Max. TDP=65W |
| Chipset | Intel® H310 Chipset, TDP=6W |
| Memory | 2 x DDR4 U-DIMM, 2400 MHz, Dual channels, Single RAM up to 16GB, Max. up to 32GB |
| Storage | Default 1 x 2.5” SATA3.0 (height: 7mm), 1x mSATA |
| Display | 1 x HDMI (Max. support resolution: 4096×2160, @ 30Hz) |
| 1 x VGA (Max. support resolution: 1920x 1200, @60Hz) | |
| Network | 2 x Realtek Ethernet Connection |
| Wireless | 1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion)
1 x SIM slot |
| Audio | Mic-in/Line-out |
| USB | 4 x USB 3.0, 6x USB2.0 |
| COM | Optional 6x RS232 (Internal jumper) |
| GPIO | Optional 8x GPIO |
| Expansion | 1x PCIe 3.0 x16 slot (optional) |
| 2x PCI slots | |
| Power | Internal 1U power supply (default 250W), AC input, 350W/460W (optional) |
| Switch | 1 x Power button |
| LED indicator | Power LED, storage LED indicator |
| Watchdog | Programmable 255 seconds |
| OS | 8th /9th Core™: Windows 10, 64bits, Linux |
| Structure | |
| Material | SGCC |
| Treatment | Hard anodizing treatment |
| Color | Silver white |
| Cooling | PWM intelligent fan |
| Weight | 7.0kg (Net weight) |
| Dimension | 280mm(L) x 127mm(W) x 270.3mm(H) |
| Mounting | Desktop, Wall mount |
| Environmental | |
| Operation temp. | Operating temp.: -20~60°C (Industrial SSD)
Operating temp.: 0~50°C (Commercial SSD) |
| Storage temp. | Storage temp.: -40~80°C |
| Humidity | 10%~90%@40°C (non-condensation) |
| Vibration | SSD：3Grms@5~500Hz，random，1 hr/axis；
2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis |
| Shock | 10G/peak (11ms sec) |

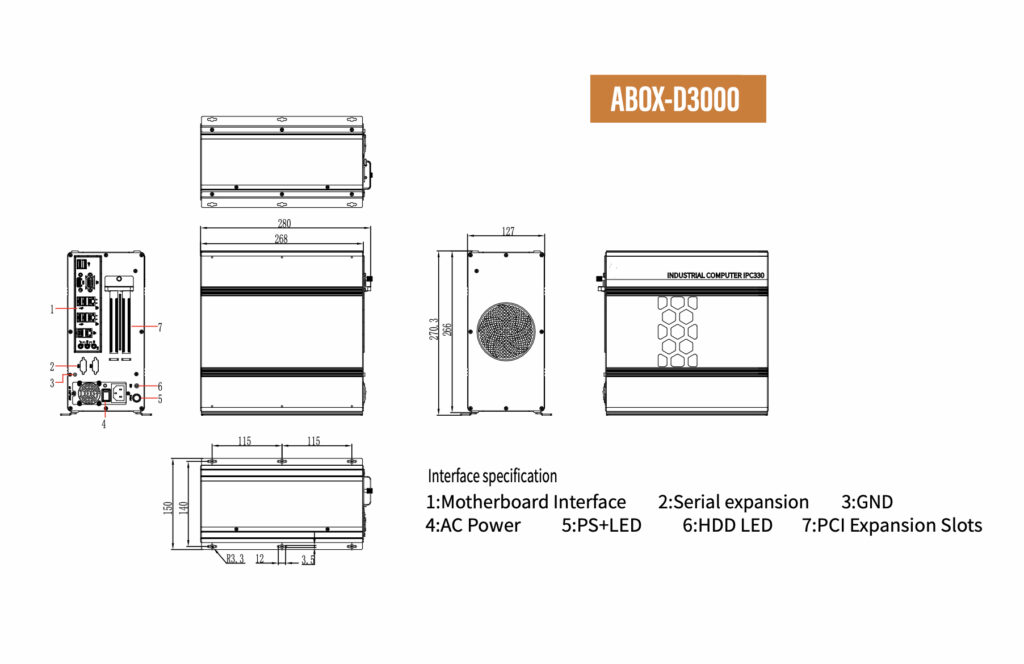

Product Dimension
Product Dimension
