Mainkco ABOX-D3105 model is a The ABOX-D3105 series is a stable and reliable AI edge computing server with compact design. It supports wall-mount and desktop installation methods, and is suitable for various types of industrial and intelligent places. At the same time, combined with the modular design concept, through a simple combination of modules, combined with the expansion card slot, it can be freely and flexibly expanded to form a variety of product configurations with different interfaces and different performance, which can be widely used in communications, finance, electricity, transportation, Medical, industrial automation, machine vision and AI computing, Smart City and other intelligent fields and other fields.

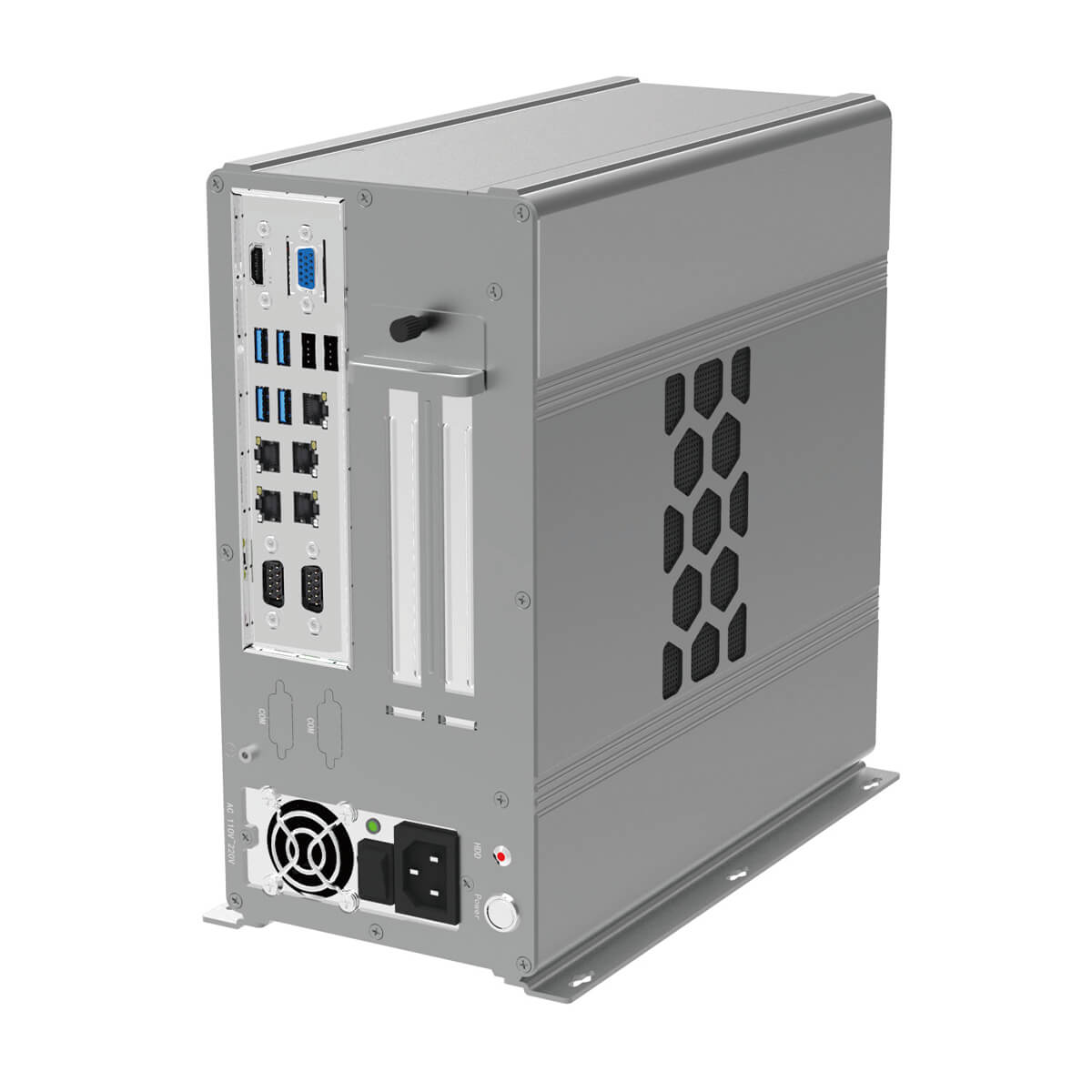

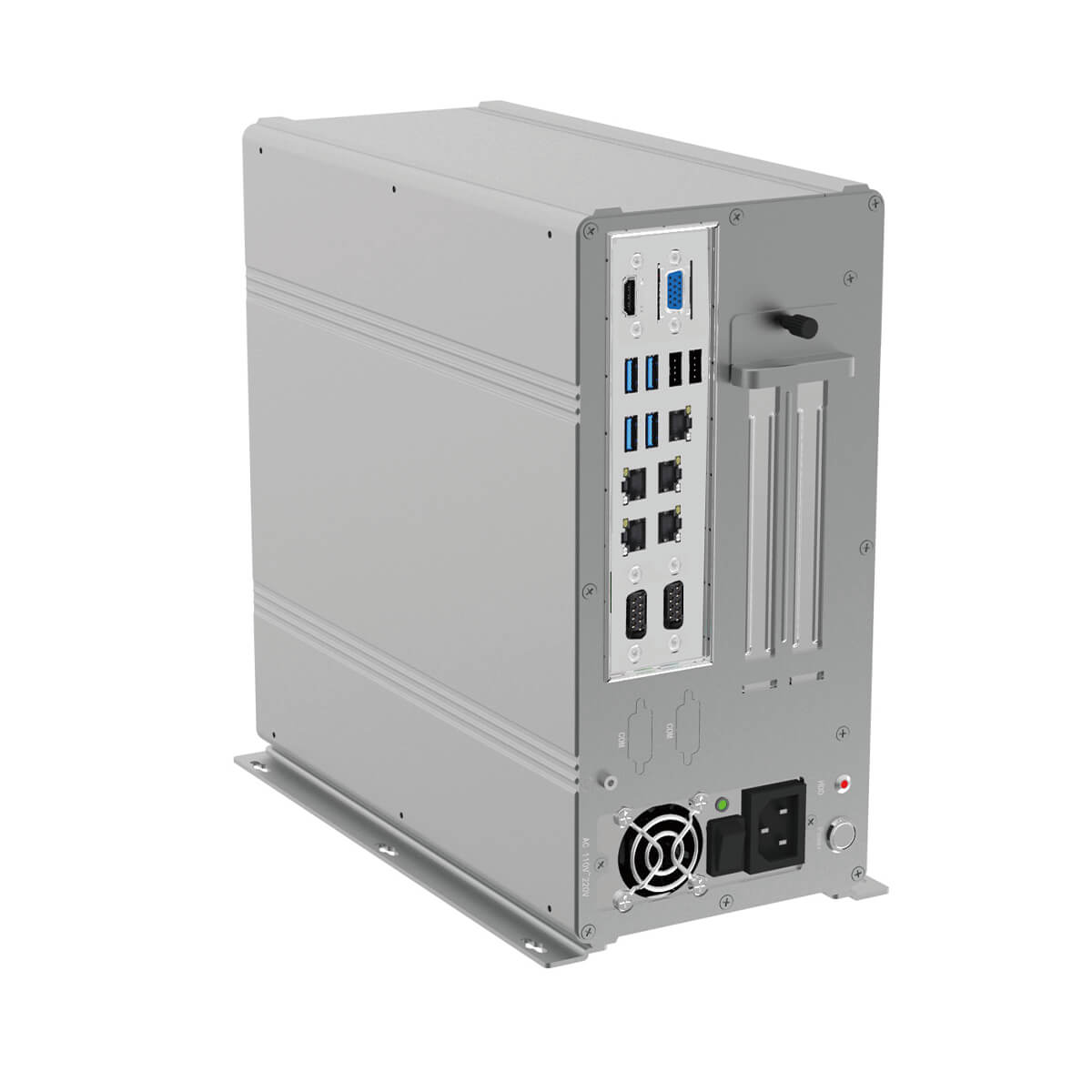

Compact AI Edge Computing Server ABOX-D3105
Key features:
Support Intel® 6th ~ 9th Core™ i7/i5/i3, Pentium, Celeron Desktop multicore processors;
Intel H110 industrial chipset, TDP=6W;
2* DDR4 2133/2400 Mhz, Dual channels, Max. up to 32GB;
1* SATA3.0 and 1* mSATA Storage slot;

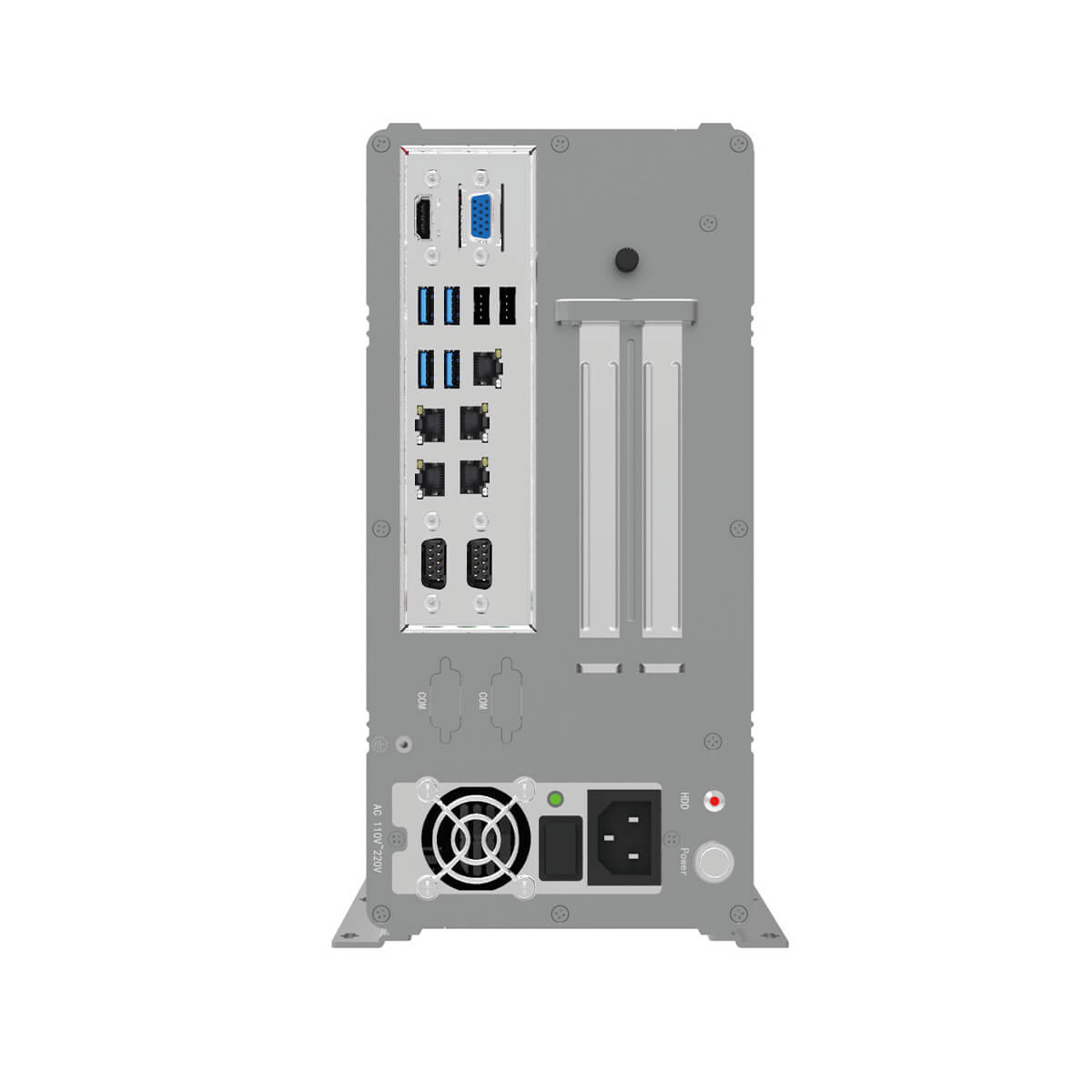

5* GLAN, 4* USB3.0, 2* USB2.0, 2* COM, 1* HDMI, 1* VGA;
5 GbE, support 4 PoE feature, optional 3G/4G, Wi-Fi/BT wireless expansion;
Optional 1* PCIe 3.0 x16 slot, or 2* PCI expansion slots;
1U standard power supply.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| CPU | Intel® 6th to 9th Core™ i3/i5/i7, Pentium, Celeron Desktop LGA1151 CPUs, Max. TDP=65W |
| Chipset | Intel® H110 Chipset, TDP=6W |
| Memory | 2 x DDR4 U-DIMM, 2133/2400 MHz, Dual channels, Single RAM up to 16GB, Max. up to 32GB |
| Storage | Default 1 x 2.5” SATA3.0 (height: 7mm), 1x mSATA |
| Display | 1 x HDMI (Max. support resolution: 4096×2160, @ 24Hz) |
| 1 x VGA (Max. support resolution: 1920x 1200, @60Hz) | |
| Network | 5 x Intel® Ethernet Connection, 1x I219, 4x I211 (Optional PoE) |
| Wireless | 1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion)
1 x SIM slot |
| Audio | None |
| USB | 4 x USB 3.0, 2x USB2.0 |
| COM | 2 x DB9 RS232 (optional RS485/RS422, BIOS controllable), 2x RS232 (Internal jumper) |
| GPIO | Optional 8x GPIO |
| Expansion | 1x PCIe 3.0 x16 slot (optional) |
| 2x PCI slots | |
| Power | Internal 1U power supply (default 250W), AC input, 350W460W (optional) |
| Switch | 1 x Power button |
| LED indicator | Power LED, storage LED indicator |
| Watchdog | Programmable 255 seconds |
| OS | 6th Core™: Windows 7/8.1/10, 32 bits/64bits, Linux |
| 7th Core TM: Windows 7/8.1/10, 64bits, Linux | |
| 8th /9th Core TM: Windows 10, 64bits, Linux | |
| Structure | |
| Material | SGCC |
| Treatment | Hard anodizing treatment |
| Color | Silver white |
| Cooling | PWM intelligent fan |
| Weight | 4.8kg (Net weight) |
| Dimension | 280mm(L) x 127mm(W) x 270.3mm(H) |
| Mounting | Desktop, Wall mount |
| Environmental | |
| Operation temp. | Operating temp.: -20~60°C (Industrial SSD)
Operating temp.: 0~50°C (Commercial SSD) |
| Storage temp. | Storage temp.: -40~80°C |
| Humidity | 10%~90%@40°C (non-condensation) |
| Vibration | SSD：3Grms@5~500Hz，random，1 hr/axis；
2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis |
| Shock | 10G/peak (11ms sec) |
