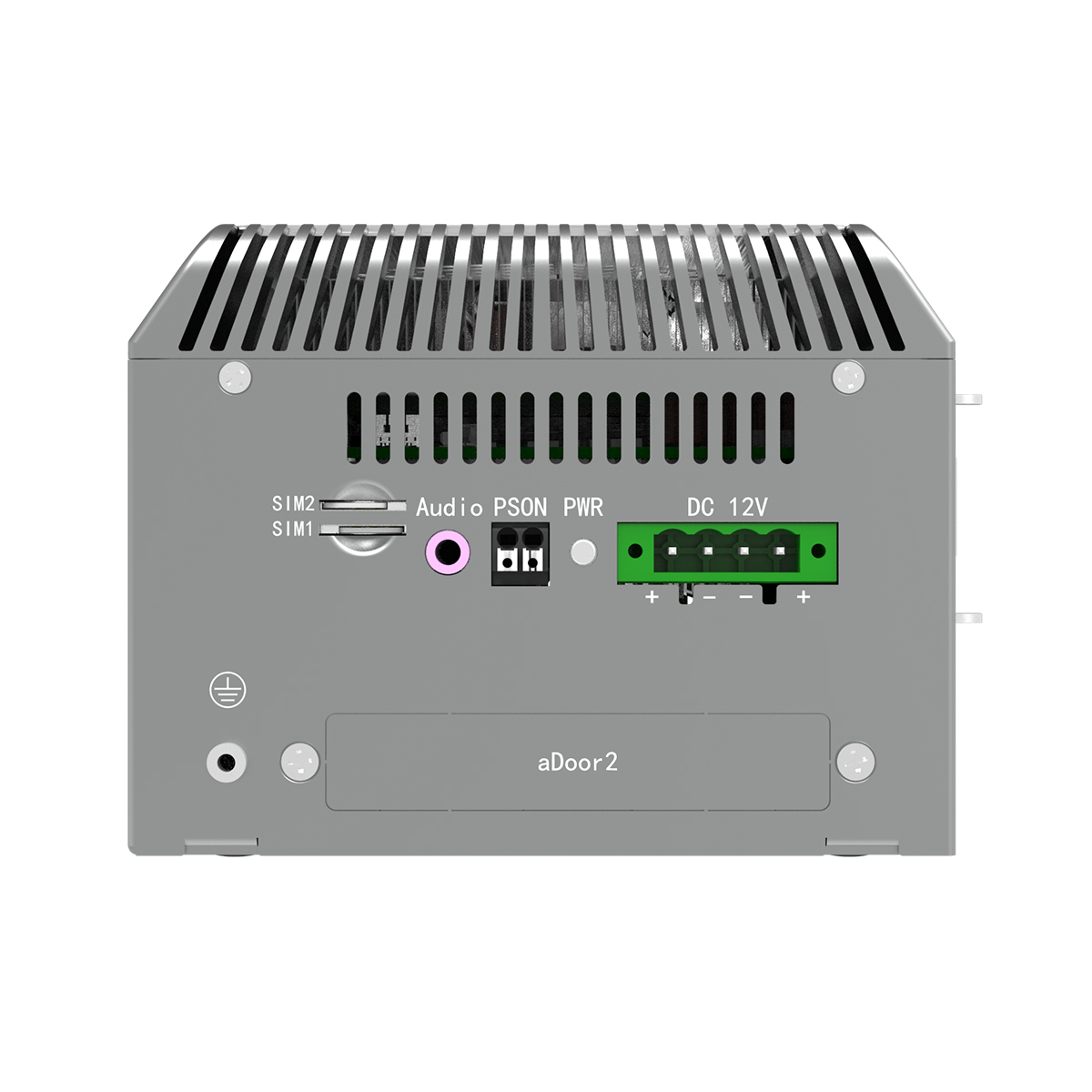

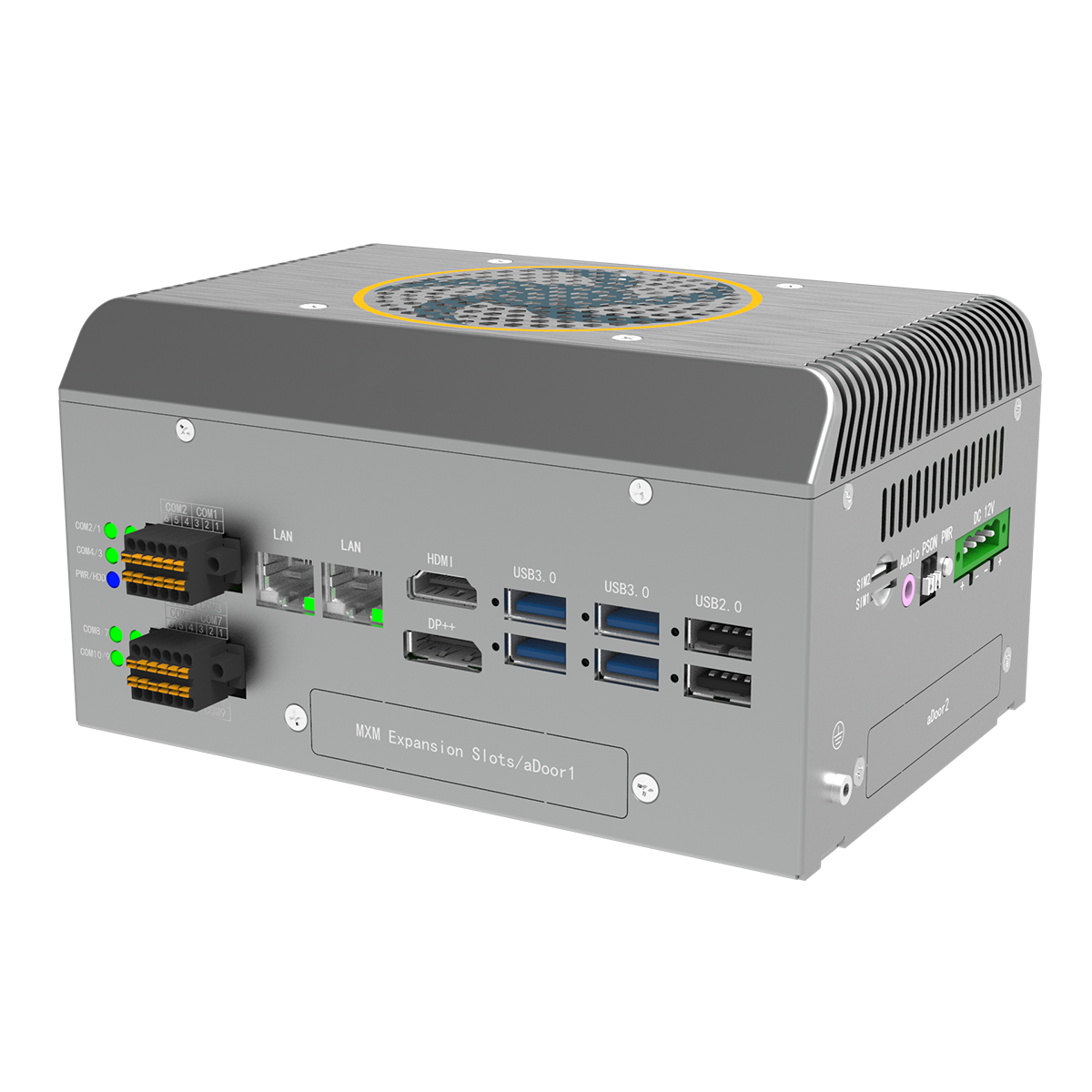

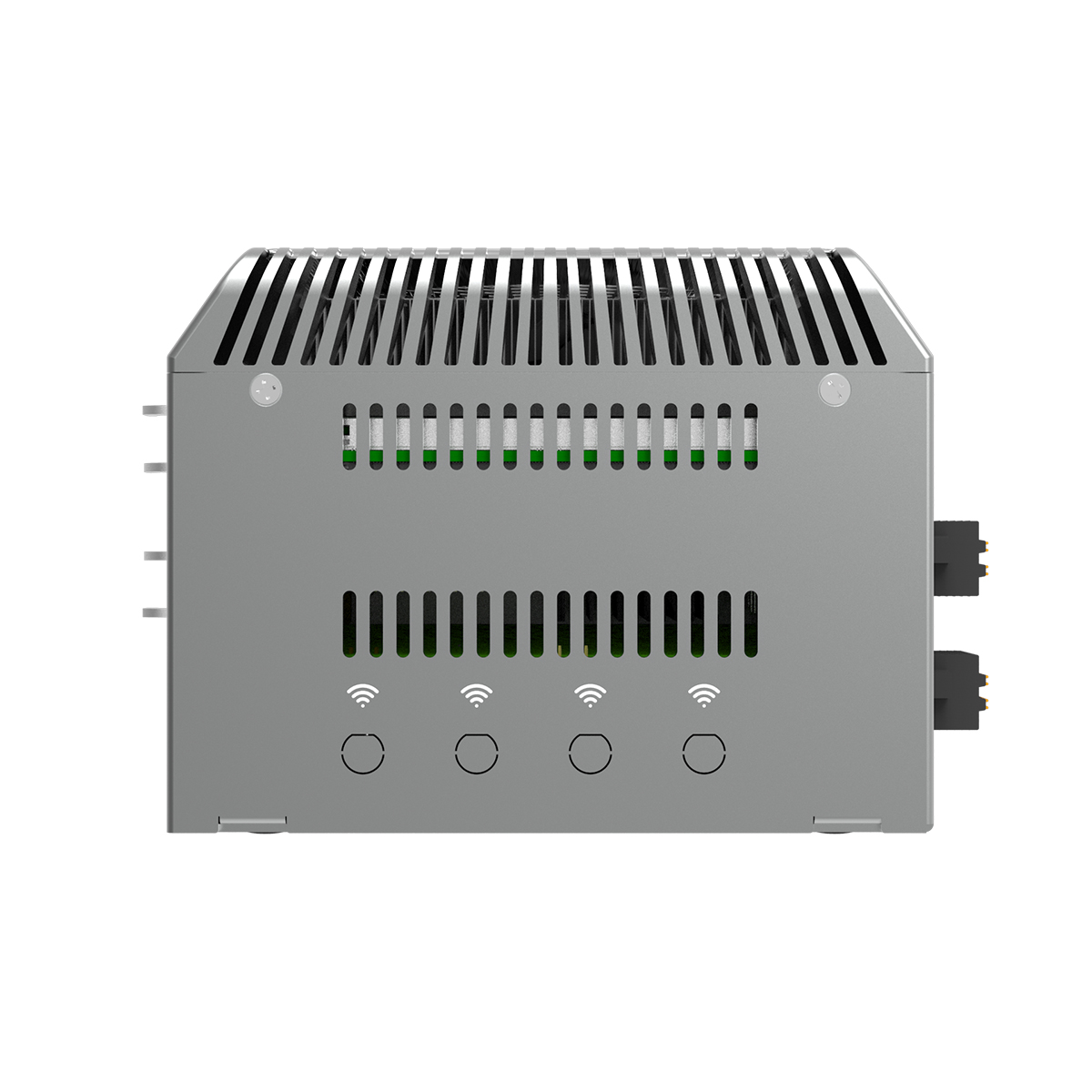

Expandable Box PC for robot application ABOX-7020

Key features:

Rugged & Compact design box structure;
Intel LGA1151 6^th/7^th/8^th/9^th Pentium, Core i3/i5/i7 35W desktop processors;
Single DDR4 memory, up to 16GB, 1* M.2 2242/2280 SSD storage;
2* GLAN, optional 4G, WIFI/BT expansion, support dual 4G communication;
1 * HDMI and 1* DP++ (Ultra HD 4K) display ports;
2* USB2.0, 4* USB3.0, 8*COM, 1*HDMI, 1*DP++;
PWM intelligent fan;
Standard aDoor/MXM expansion modules slots;
DC 12V power input, industrial operating temp. -20 ~ +60 ℃.

"*" indicates required fields

Mainkco IPC ABOX-7020 is an expandable Box PC model for robot application. By equipping with Intel 6th/7th/8th/9th LGA1151 Desktop 35W processors, The industrial Box PC ABOX-7020 can provide extreme high computing for various of high level industrial robots applications industries.

ABOX-7020 is modular concept and compact designed, so as to ensures that the system fits perfectly into the industrial robots. Moreover, ABOX-7020 Box PC supports a wide operating temperature range (-20 ~ 60 °C) that ensures reliable function in freezers with a temperature of -20 °C. Powerful industrial Box PCs ABOX-7020 is made from durable aluminum alloy and features a fan-less, dual wireless features, anti-vibration, and anti-shock design.

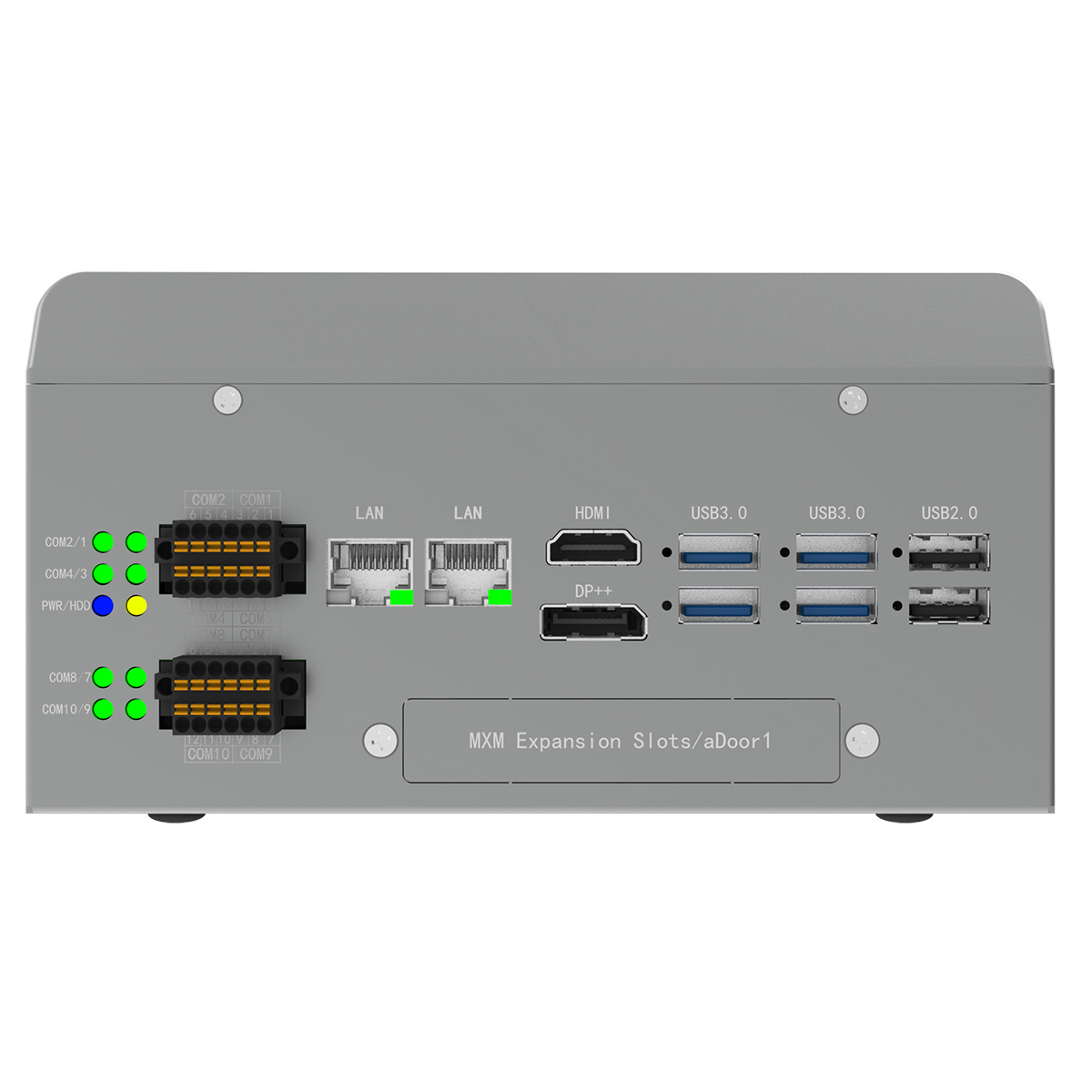

With our modular concept designed & manufactured, ABOX-7020 supports multiple I/O interfaces, including 8 COM, 6 USB, 2 RJ45, HDMI and DP+, and more expandable IO interfaces via MXM and aDoor expansion modules.

Technical Data

System
Processor		CPU	Intel^® LGA1151 6^th/7^th/8^th/9^th Pentium, Core i3/i5/i7 35W desktop CPU
		Chipset	Q170 (C236)
		BIOS	AMI SPI 64Mb, support ACPI, CPU temperature, system voltage monitoring
Memory		Interface	2* DDR4 SO-DIMM
		Capacity	Max. single RAM up to 32G
Storage		Interface	1* M.2 2242/2280, support NVMe/SATA 3.0 storage
Display		Chipset	CPU integrated Intel® HD Graphics
		Ports	1* HDMI (Max. 3840*2304, @30Hz), 1x DP++ (Max. 4096×2304, @60Hz) 1 x HDMI (Max. support resolution: 4096 x 2304, @ 24Hz)
Network		Chip	2* Intel® Ethernet Connection
		Wireless	1* Mini-PCIE (Half/ full, optional 3G/4G, Wi-Fi), 1* M.2-3050 (optional 4G/5G), 2* nano-Sim slot 1x Mini-PCIe (Half/full, support 3G/4G, optional) 1 x SIM slot
I/O		USB	4* USB3.0, 2*USB2.0
		COM	8* R232 (2* 2×6 pins terminal, COM 1~6 support RS485)
Expansion		GPIO	1* 20 pin (8-in/8-out)
		Adoor	Optional support Adoor modules expansion
		MXM	Optional support MXM modules expansion
Power	Type		DC
	Port		1* 4 pin Power phenix terminal, P=5.08, lockable
	Input consumption		DC 12V
LED/Switch	Power on		1* Power LED (Blue)
			1* Storage LED (Yellow)
			8* COM LED (Green)
	Button		1* Power button
			1* External switch
Watchdog			Programmable 255 ms
OS		version	Windows 7/8.1/10, Linux
Structure
Treatment		Hard anodic oxidation treatment + paint spray
Color		Iron grey
Cooling		PWM intelligent fan
Weight		Around 1.5 kg (Net weight)
Dimension		165mm(L) x 110mm(W) x 84.2mm(H)
Mounting		Desktop, wall mount, optional Din-Rail (Din 35)
Environmental
Operation temp.		Operating temp.: -20~60°C (Industrial SSD)
Storage		Storage temp.: -40~80°C
Humidity		10%~90%@40°C (non-condensation)
Vibration		SSD：3Grms@5~500Hz，random，1 hr/axis；
Shock		10G/peak (11ms sec)

Technical Data

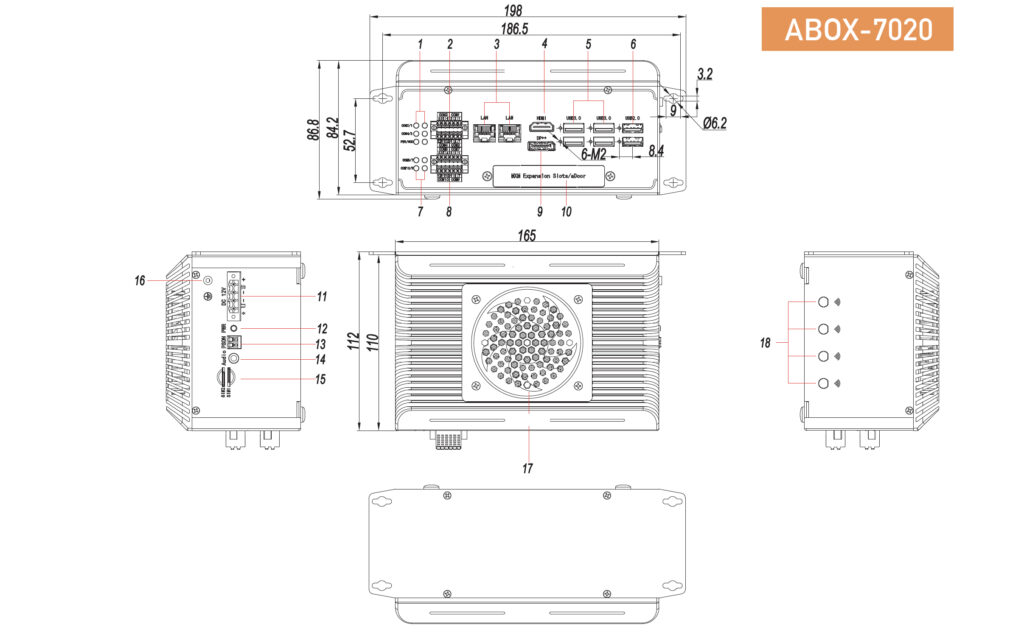

Product Dimension
