Mainkco IPC High performance fanless computer ABOX-E900 is a high-performance fan-less industrial Box PC model, it adapts Intel 6th/7th Skylake or Kaby Lake -U series CPU, having advanced computer performance and low power consumption. ABOX-E900 support 1* PCIe x4 expansion slot or 1* PCI slot for industrial modules; The design has a variety of communication interface, with 2* LAN ports, 4* USB 3.0 port, 4* RS232 (Optional support 2* RS232/RS485); The power input is DC 12~28V voltage, and has over-current, over-voltage and reverse-polarity protection. Industrial fanless computer ABOX-E900 is designed to support 2* Mini-PCIe slot, and our unique aDoor expansion, very suitable for all kinds of industrial & automation applications.
High performance fanless computer ABOX-E900 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system.

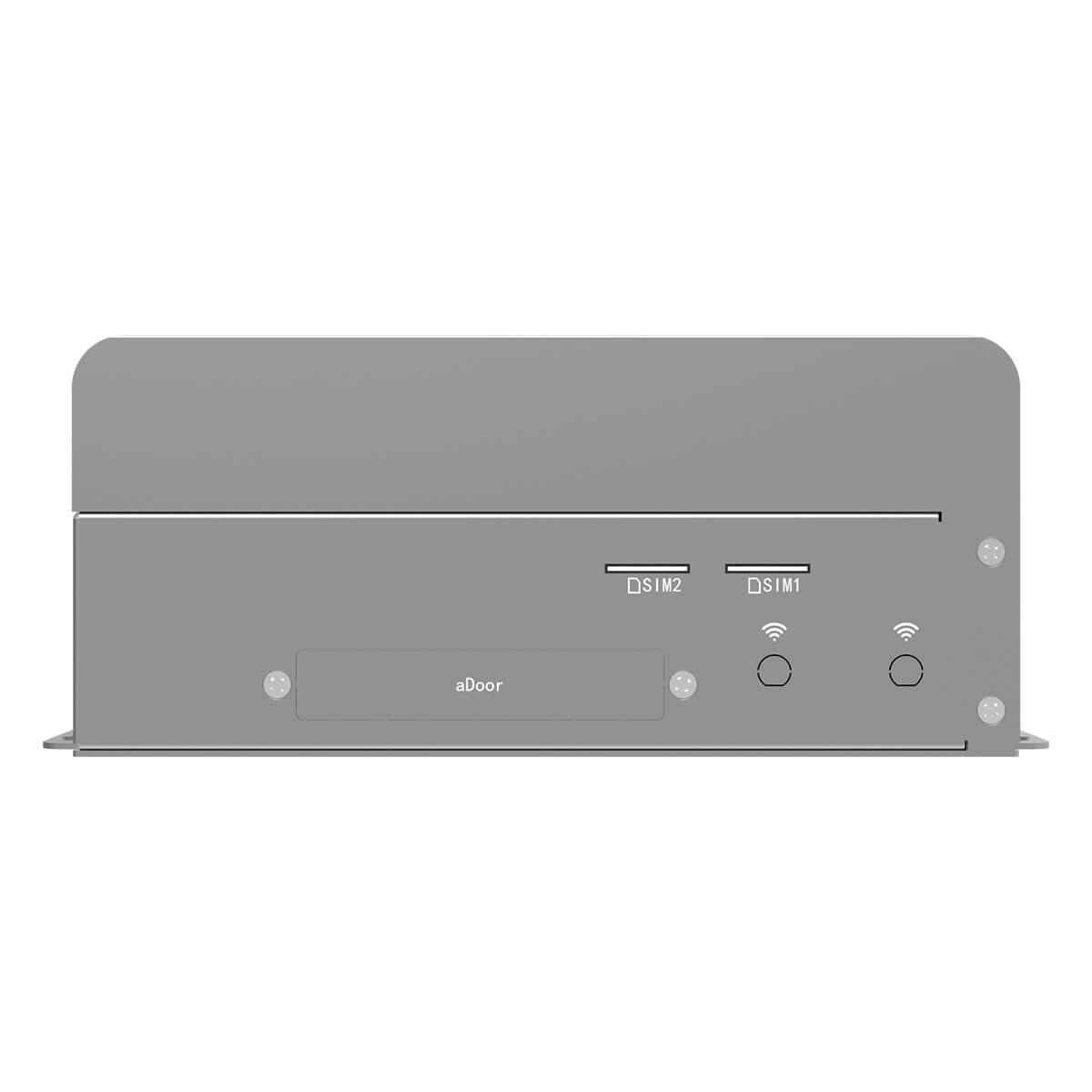

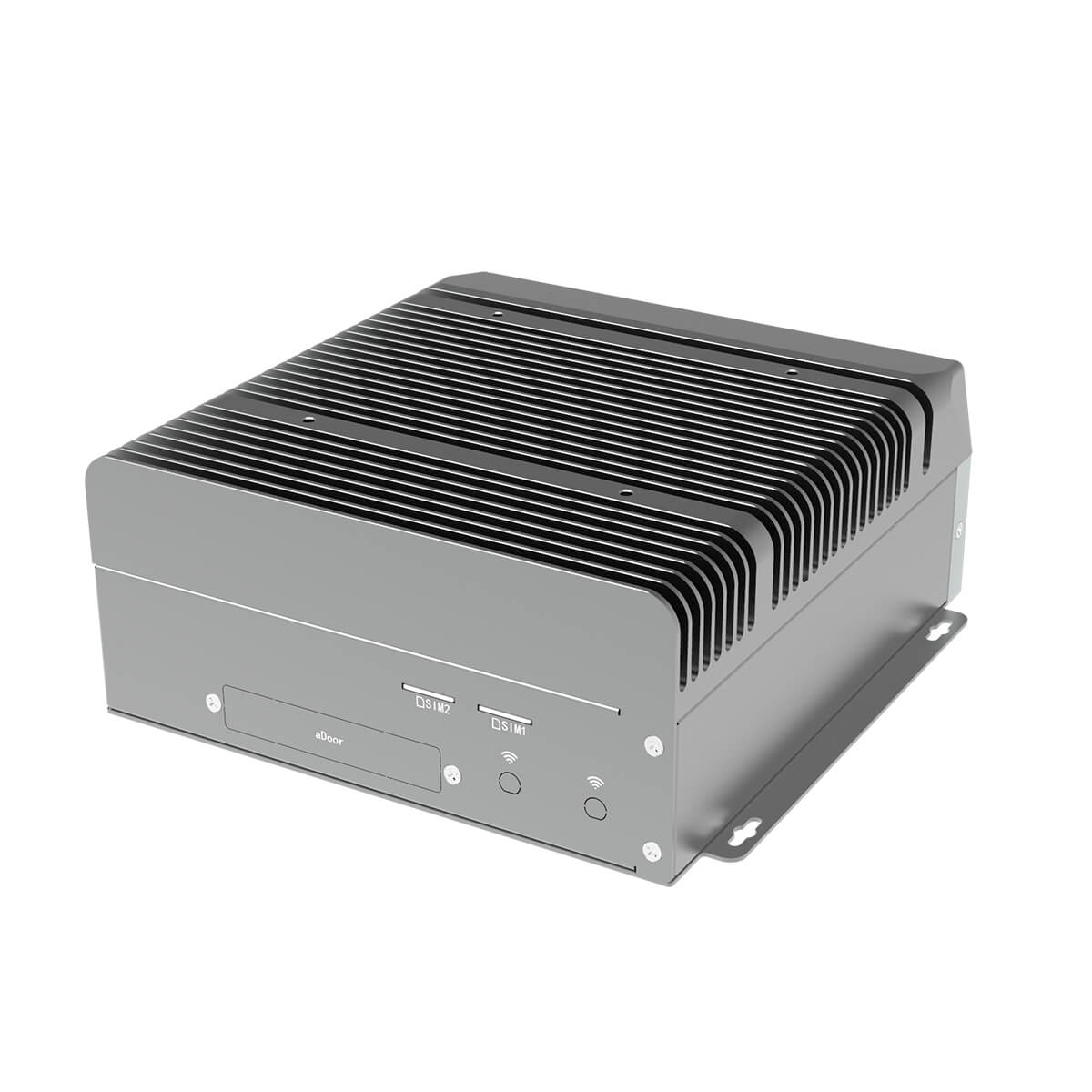

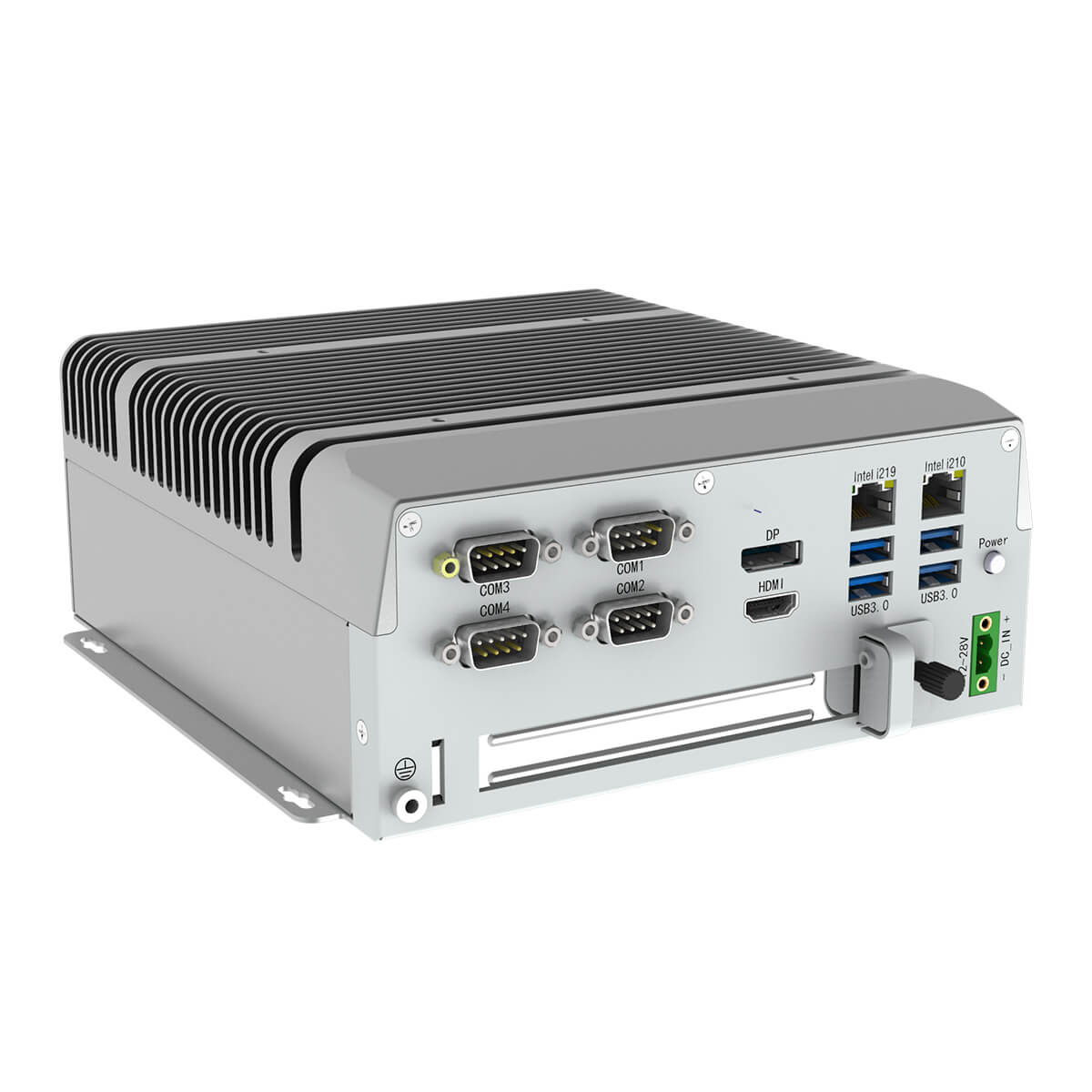

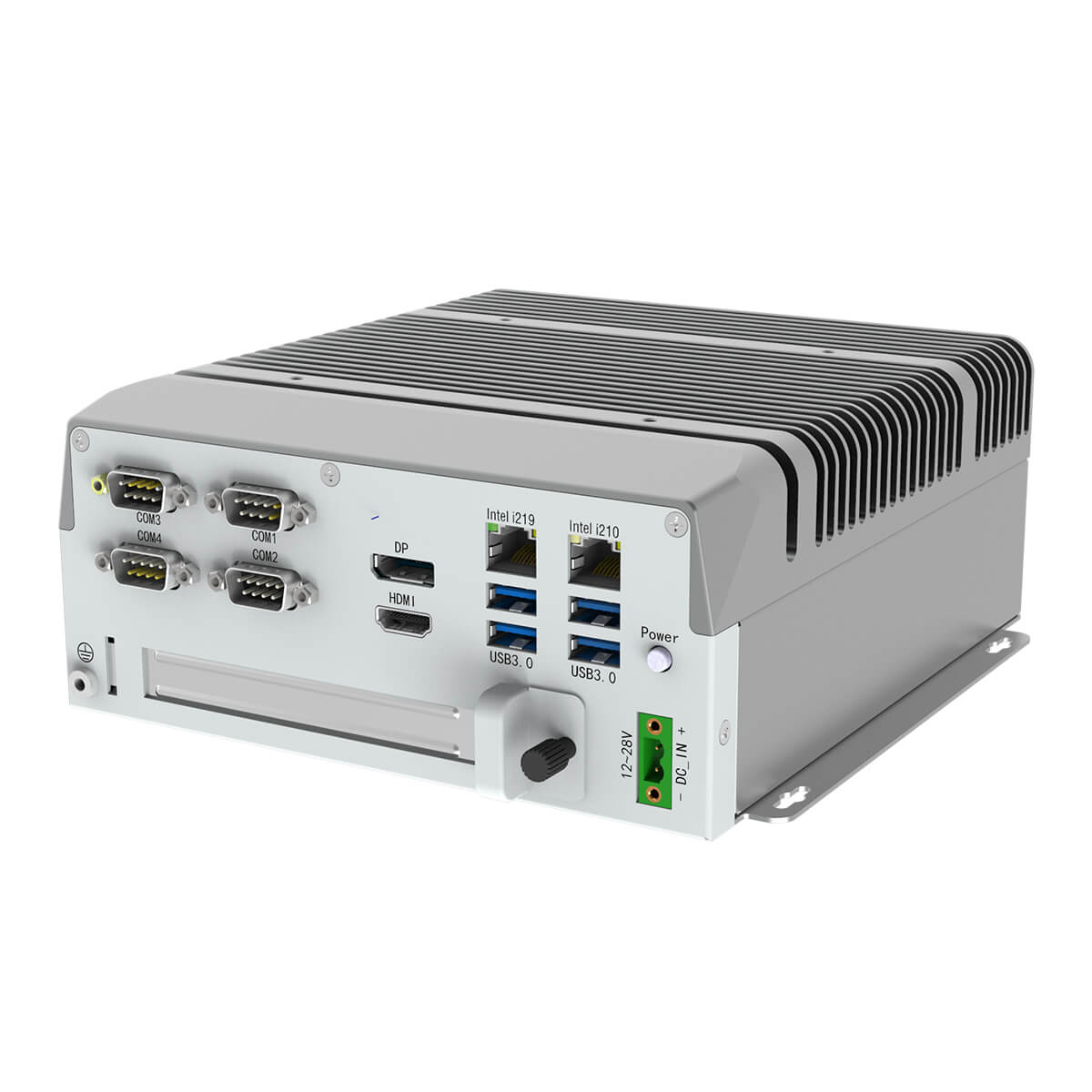

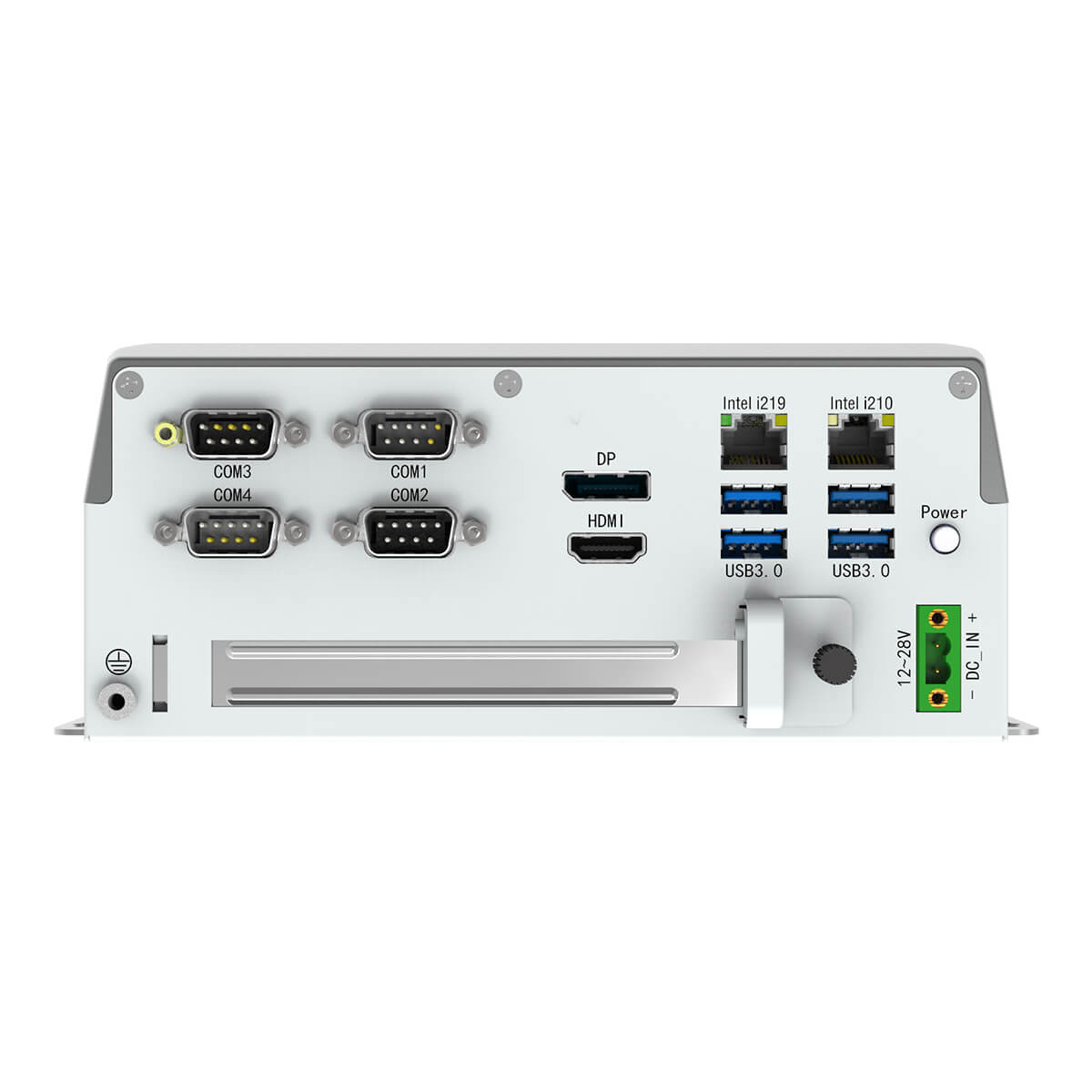

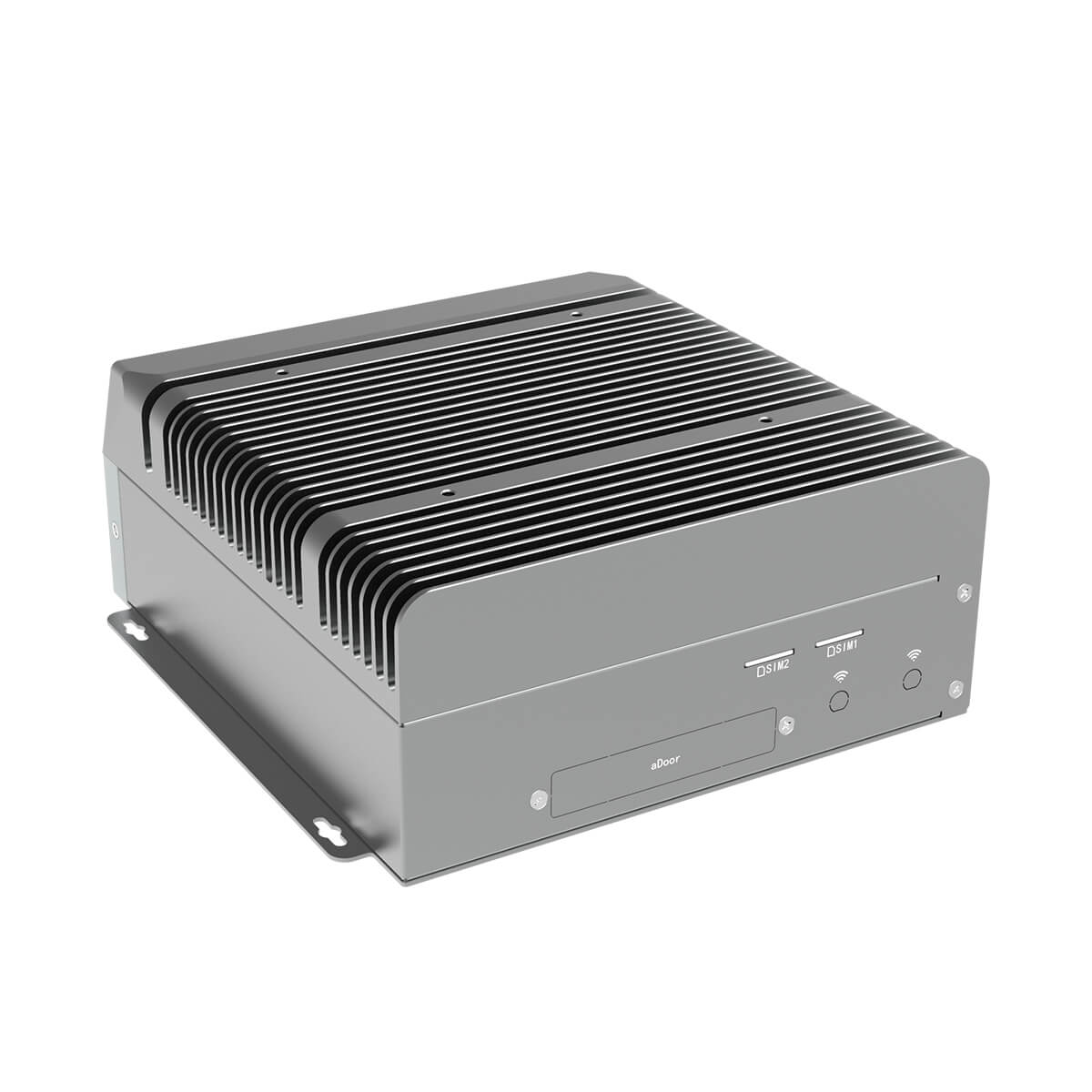

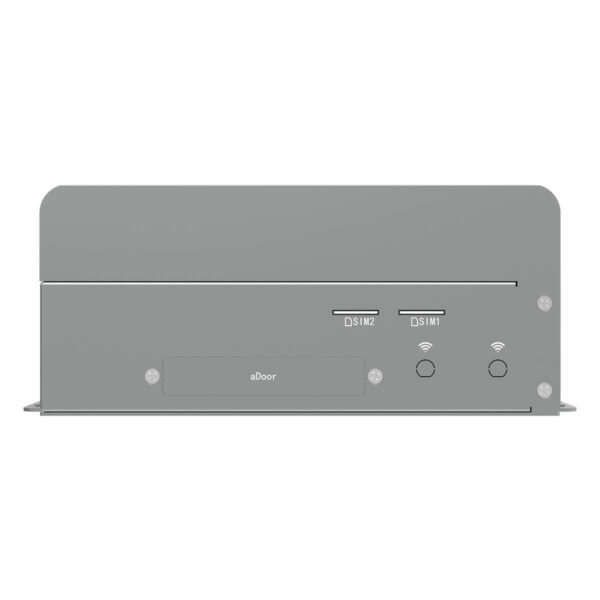

High performance fanless computer ABOX-E900
"*" indicates required fields
Category: Industrial Box PC
Description
Technical Data
Technical Data
System | |
Processor | Intel® 6th/7th Core™ Celeron /i3/i5/i7 CPU, TDP=15W (fan-less) |
14nm SoC | |
AMI EFI BIOS, support ACPI, CPU temperature, system voltage monitoring | |
Memory | 1 x DDR4 SO-DIMM |
Max. single RAM up to 16G | |
Storage | 1 x M.2 (2242, SATA) |
Display | CPU integrated Intel® HD Graphics |
1 x DP (Max. resolution: 4096×2304 x24bpp, @ 60Hz), 1 x HDMI (Max. resolution: 4096×2304, @ 24Hz) | |
Network | 2 x Intel® Ethernet Connection; LAN1: I211-AT, LAN2: I219LM, support WOL and jumbo frame |
1x Mini-PCIE (full-size, Wi-Fi/BT, optional), 1x Mini-PCIe (full, support 3G/4G, optional) | |
I/O | 4x USB3.0 |
4 x DB9 (COM1/2 support RS485/RS232) | |
Expansion I/O | 1* Standard aDoor expansion modules (Optional) |
16* GPIO (Optional) | |
1* PCIe x4, 1* PCI (only support one), full height/half-length, length < 167.65mm | |
Power | DC |
1 x 2pin 5.08 phoenix terminal, with hole lock | |
Default 12~28V wide voltage power input (Default with 12V adapter) | |
LED/Switch | 1 x power on button (including status LED light)
1x external switch signal interface |
1 x reset/restart button (Long press ≥3s when power of, clear CMOS; press 0.2~1s reset when power on) | |
Watchdog | Programmable 255 seconds |
OS | Windows 7/8.1/10, Linux |
Structure | |
Treatment | Anodize and spraying process |
Color | Iron grey color |
Cooling | Fan-less design |
Weight | About 2.8 kg (Net) |
Dimension | 200mm(L) x 194.2mm(W) x 80mm(H) |
Mounting | Desktop, wall mount, VESA mount |
Environmental | |
Operation temp. | Operating temp.: -20°C ~60°C (Industrial SSD) |
Storage temp. | Storage temp.: -40°C ~80°C |
Humidity | 10%~90%@40°C (non-condensation) |
Vibration | SSD:3Grms@5~500Hz,random,1 hr/axis; |
Shock | 10G/peak (11ms sec) |

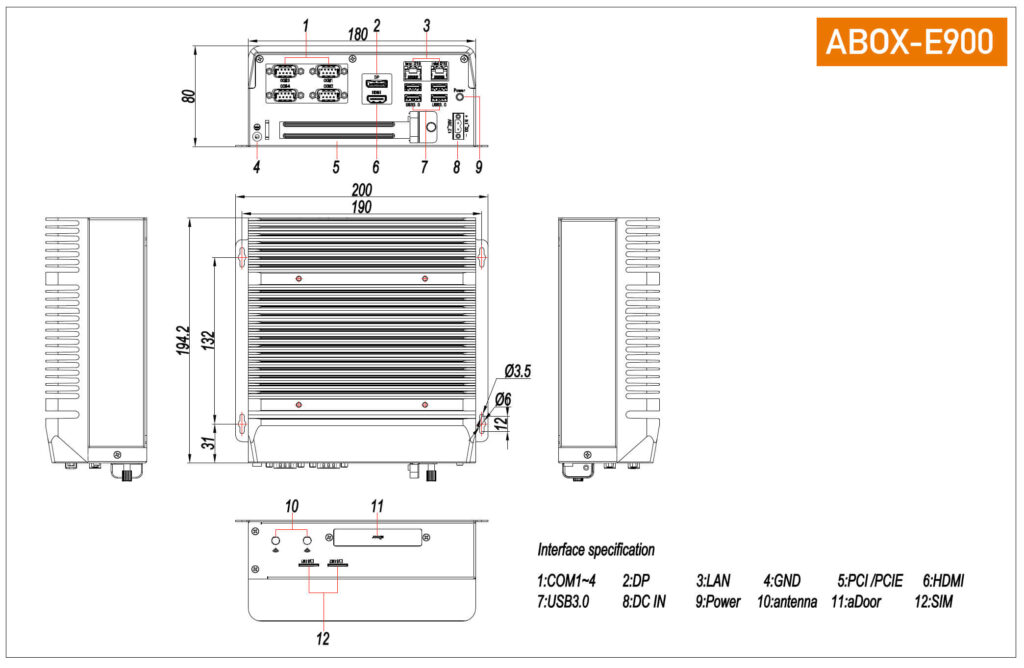

Product Dimension
Product Dimension
