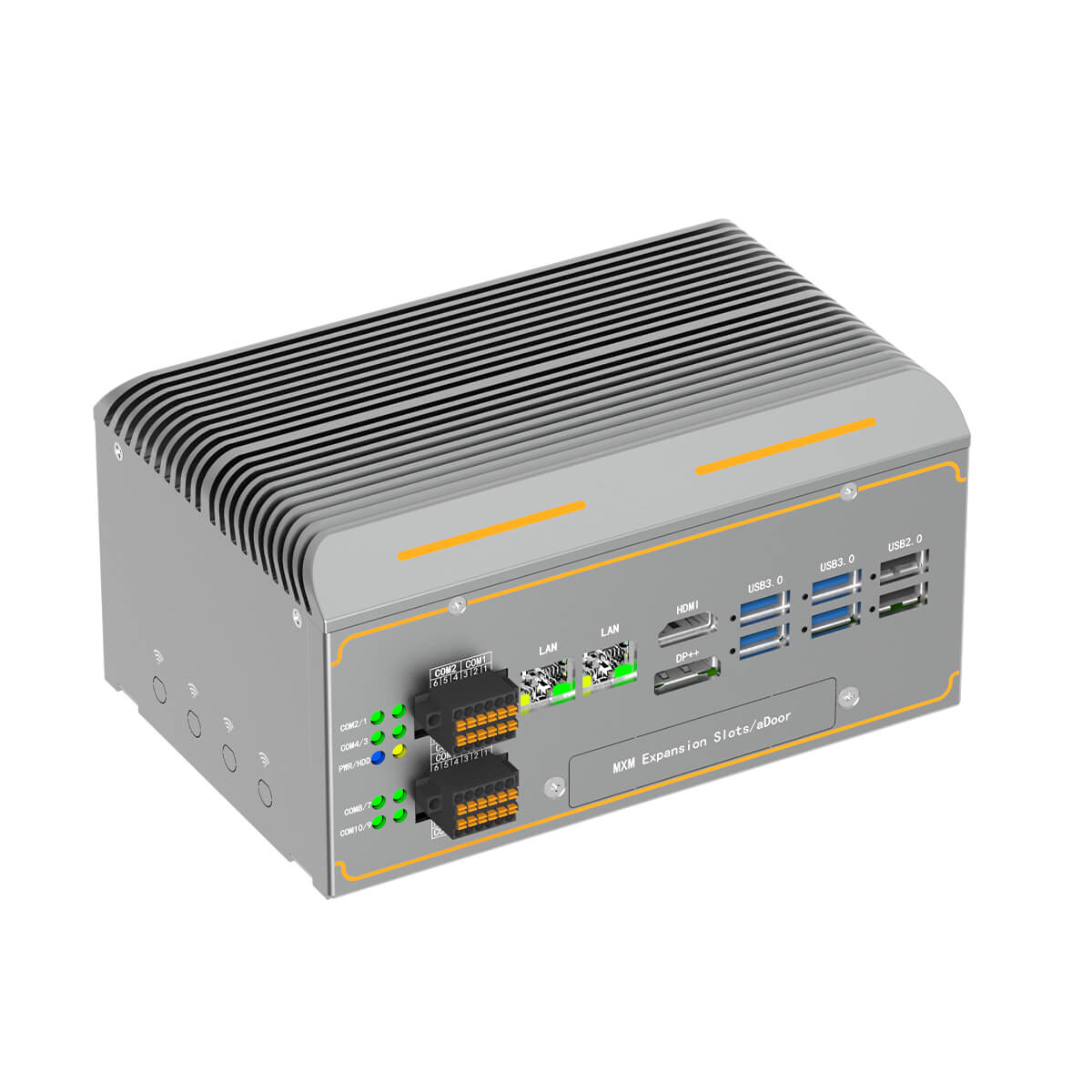

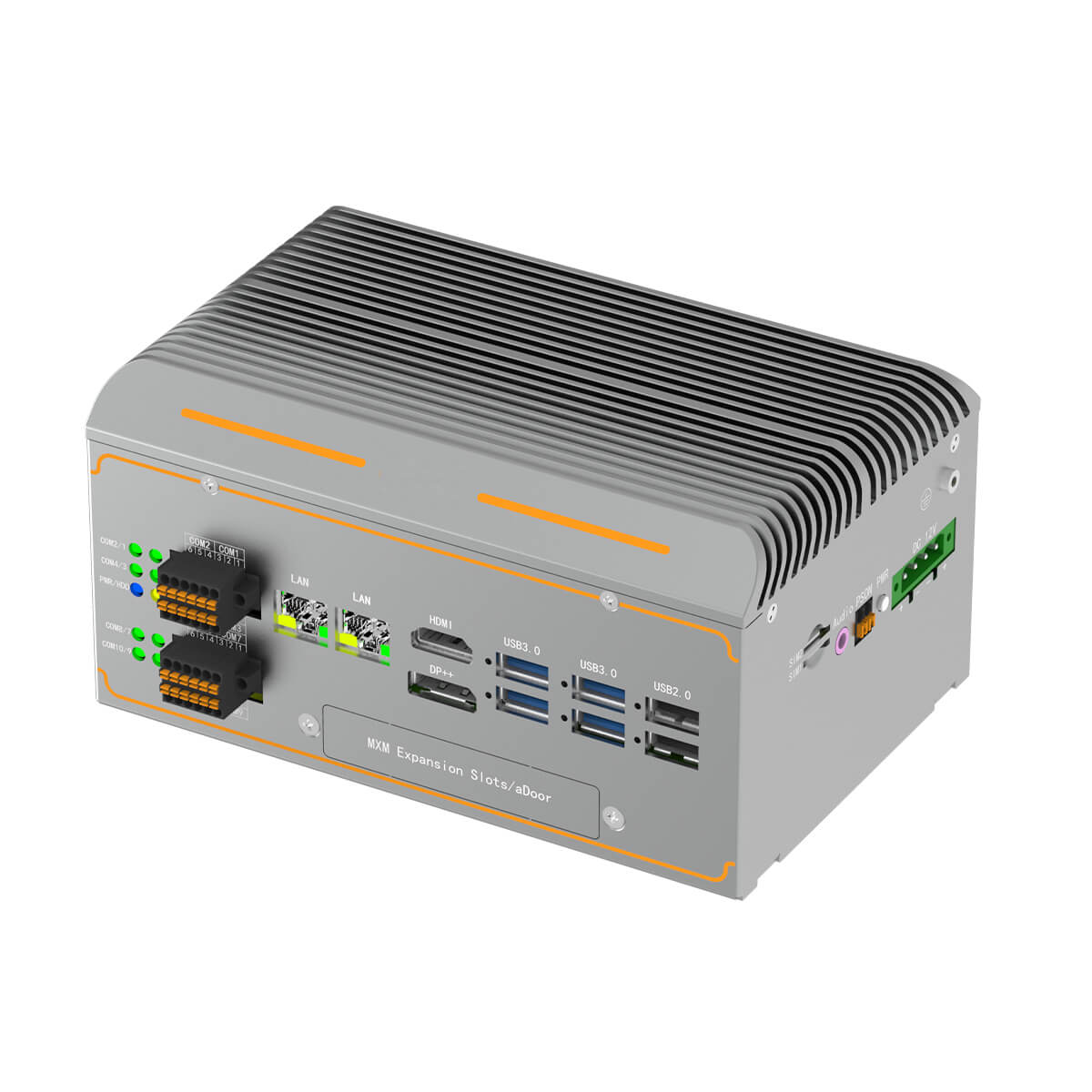

Industrial Box PC for robot application ABOX-3020

Key features:

Rugged & Compact, fanless design box structure;
On-board Intel 6/7^th /8^th, Core i3/i5/i7 -U series processors;
Single DDR4 memory, up to 16GB, 1* M.2 2242/2280 SSD storage;
2* GLAN, optional 4G, WIFI/BT expansion, support dual 4G communication;
1 * HDMI and 1* DP++ (Ultra HD 4K) display ports;
2* USB2.0, 4* USB3.0, 8*COM, 1*HDMI, 1*DP++;
Modular design, support MXM/Adoor various IO expansions;
DC 12~28V power input, industrial operating temp. -20 ~ +60 ℃.

"*" indicates required fields

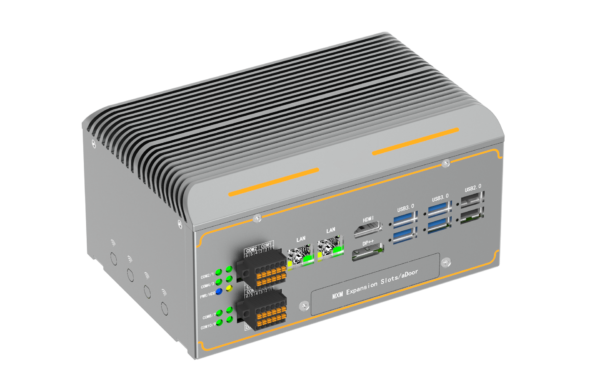

Mainkco IPC ABOX-3020 is an upgrade model of ABOX-3010. It is also a high-performance industrial Box PC for robot application. Equipped with an Intel® 6th/7th/8th Skylake or Kaby Lake Whiskey lake-U series processors, ABOX-3020 provides high-performance computing with low energy consumption. The compact design (165 x 112 x 84.2 mm) ensures that the system fits perfectly into the industrial robots. Moreover, ABOX-3020 Box PC supports a wide operating temperature range (-20 ~ 60 °C) that ensures reliable function in freezers with a temperature of -20 °C. Industrial Box PCs ABOX-3020 is made from durable aluminum alloy and features a fan-less, dual wireless features, anti-vibration, and anti-shock design.

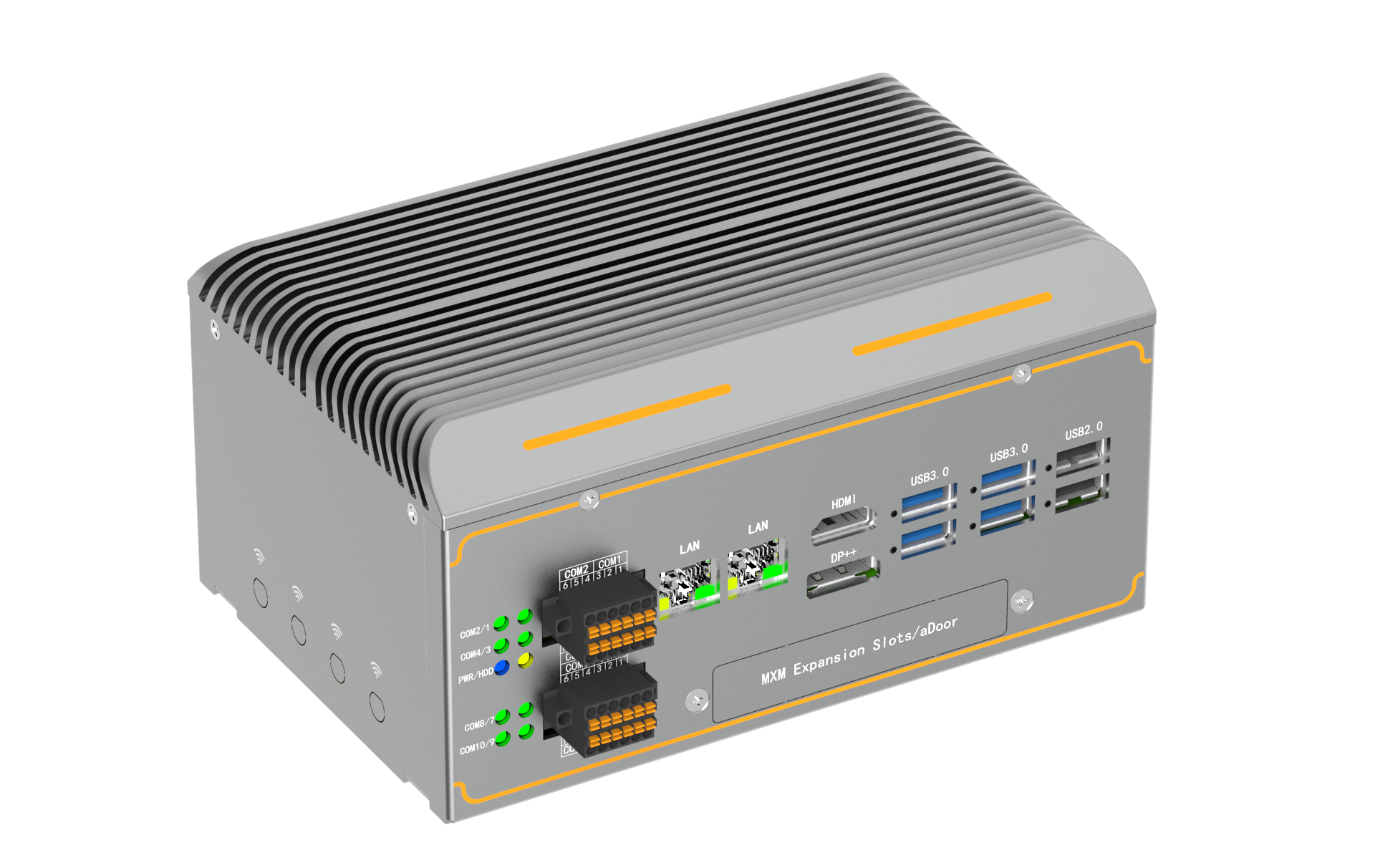

Compared to ABOX-3010 slim industrial box PC, ABOX-3020 supports more I/O interfaces via MXM/Adoor modules expansion. This modular concept designed & manufactured industrial box PC include 8 COM, 6 USB, 2 RJ45, HDMI and DP+, enabling flexible allocation and system integration. Mainkco IPC ABOX-3020 industrial box PC provides lots of convenience and possibilities for various industrial robots applications.

Technical Data

System
Processor	Intel^® 6^t/7^th/8^thCore™ Celeron /i3/i5 CPU, TDP=15W (fan-less)
	14nm SoC
	AMI EFI BIOS, support ACPI, CPU temperature, system voltage monitoring
Memory	1* DDR4 SO-DIMM
Memory	Max. single RAM up to 16G
Storage	1* M.2 2242/2280, support NVMe/SATA 3.0 storage
Display	CPU integrated Intel® HD Graphics
Display	1* HDMI (Max. 3840*2304, @30Hz), 1x DP++ (Max. 4096×2304, @60Hz) 1 x HDMI (Max. support resolution: 4096 x 2304, @ 24Hz)
Network	2* Intel® Ethernet Connection

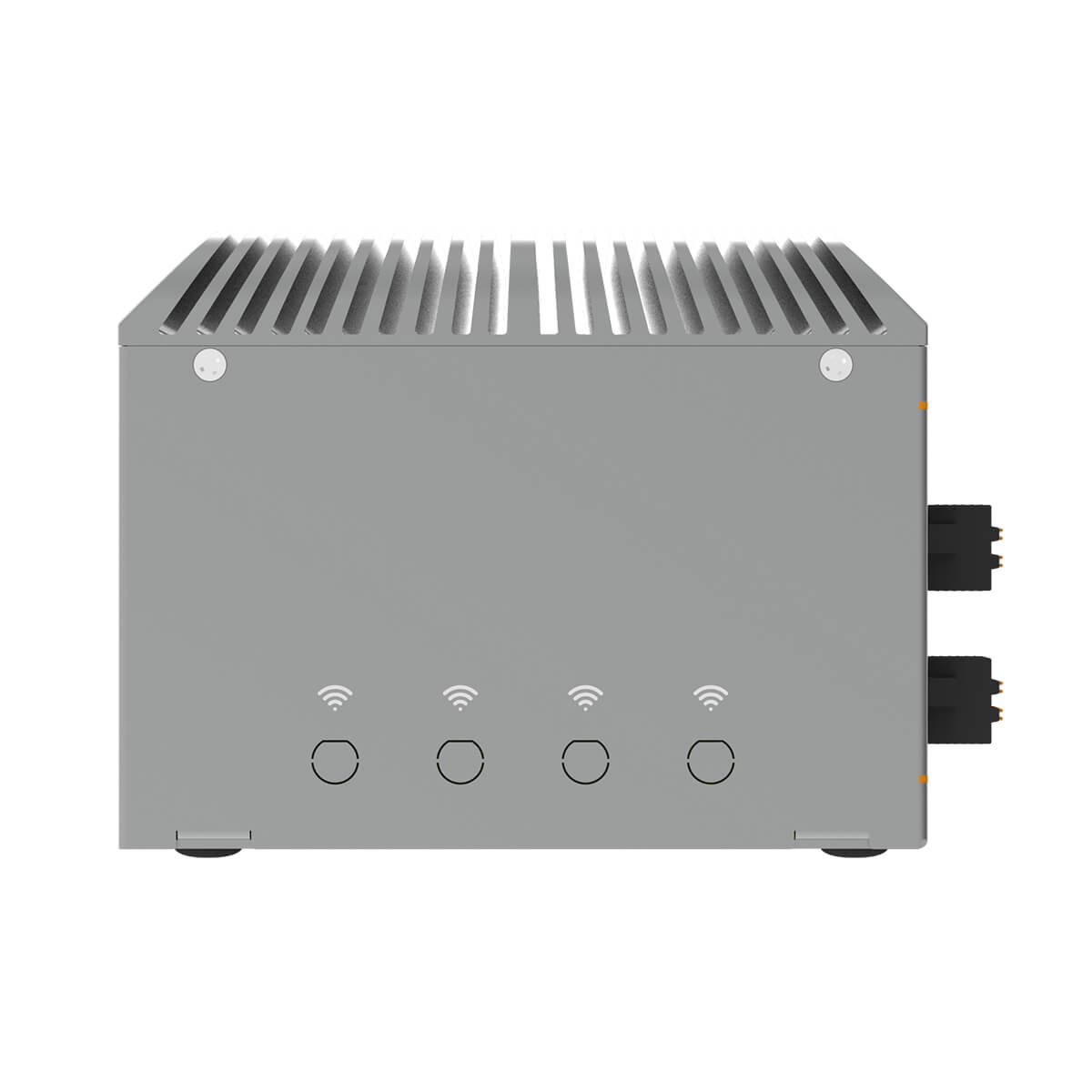

Network	1* Mini-PCIE (Half/ full, optional 3G/4G, Wi-Fi), 1* M.2-3050 (optional 4G/5G), 2* nano-Sim slot 1x Mini-PCIe (Half/full, support 3G/4G, optional) 1 x SIM slot
I/O	4* USB3.0, 2*USB2.0
I/O	8* R232 (2* 2×6 pins terminal, COM 1~6 support RS485)
Expansion	GPIO: 1* 20 pin (8-in/8-out)
	Optional support Adoor modules expansion
	Optional support MXM modules expansion

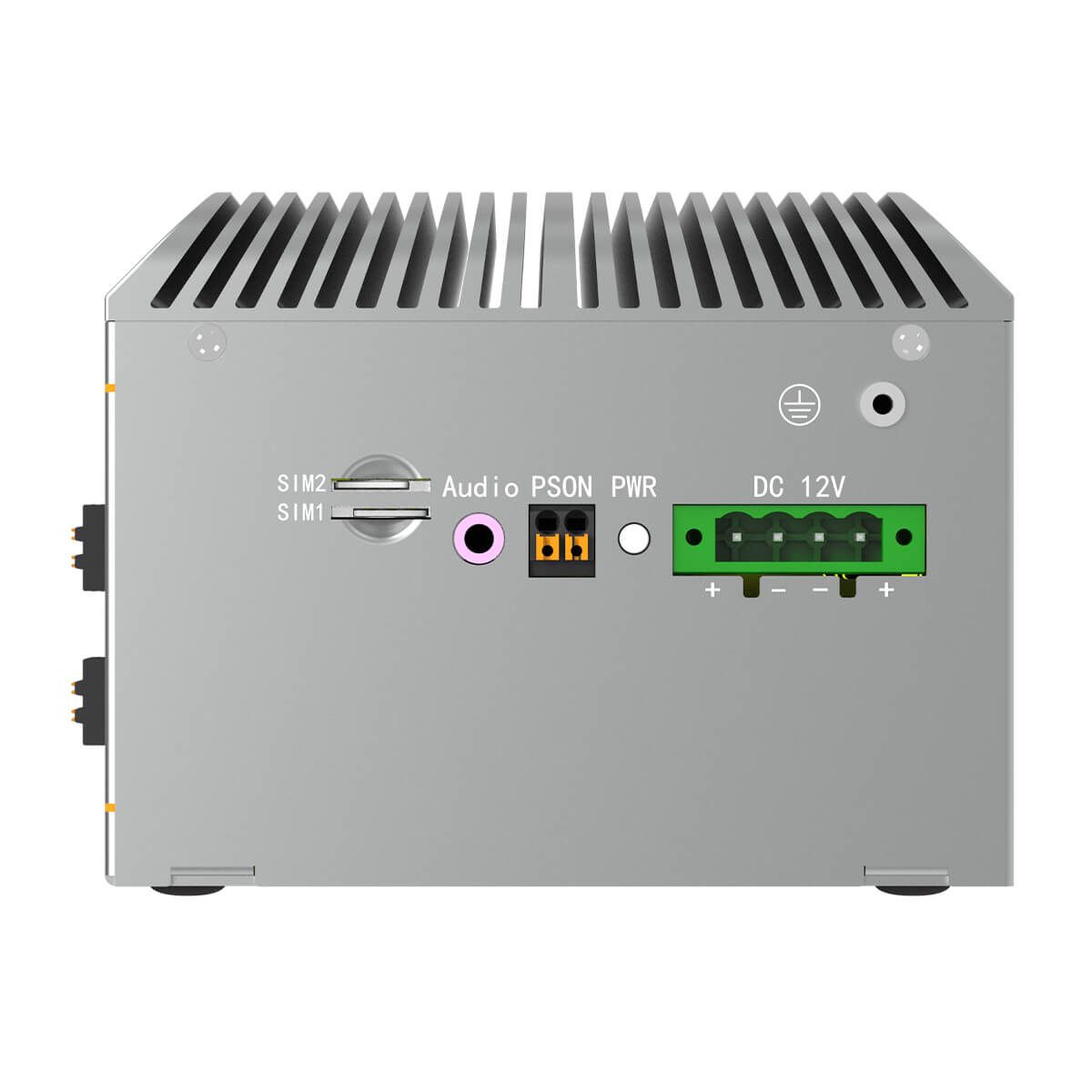

Power	DC
	1* 4 pin Power phenix terminal, P=5.08, lockable
	DC 12~28V
LED/Switch	1* Power LED (Blue) 1* Storage LED (Yellow) 8* COM LED (Green)
LED/Switch	1* Power button 1* External switch
Watchdog	Programmable 255 ms
OS	Windows 7/8.1/10, Linux
Structure
Treatment	Hard anodic oxidation treatment + paint spray
Color	Iron grey
Cooling	Fan-less design
Weight	Around 1.4 kg (Net weight)
Dimension	165mm(L) x 110mm(W) x 84.2mm(H)
Mounting	Desktop, wall mount, optional Din-Rail (Din 35)
Environmental
Operation temp.	Operating temp.: -20~60°C (Industrial SSD)
Storage	-40~80°C
Humidity	10%~90%@40°C (non-condensation)
Vibration	SSD：3Grms@5~500Hz，random，1 hr/axis；
Shock	10G/peak (11ms sec)

Technical Data

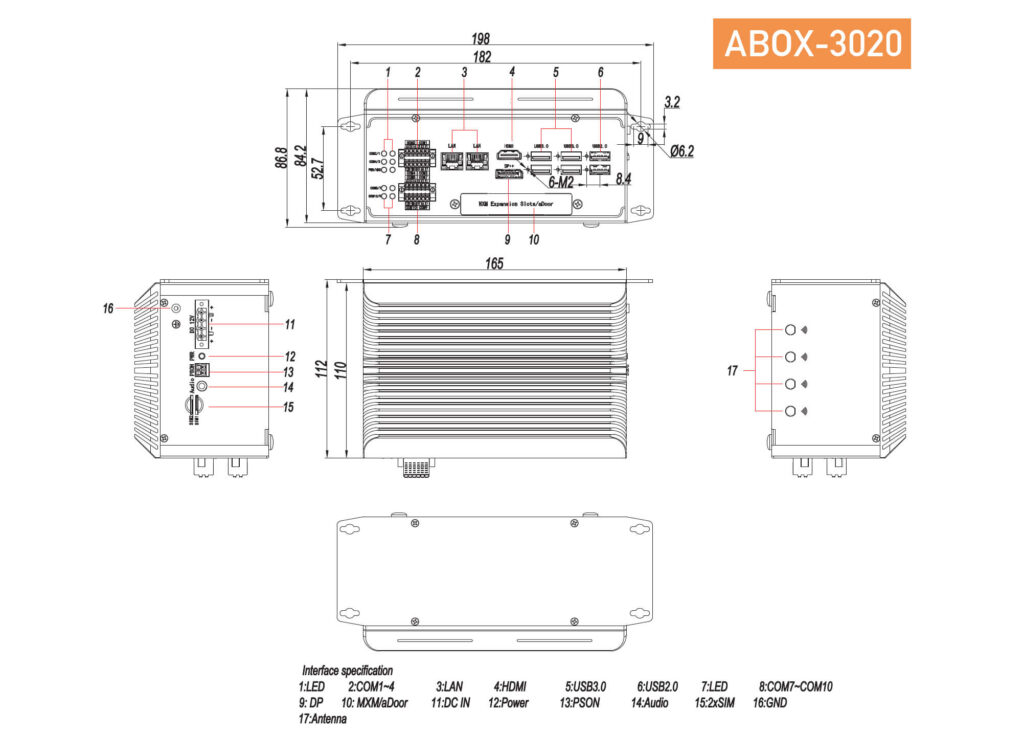

Product Dimension
