Mainkco IPC high performance industrial fanless box computer ABOX-E800 is a high-performance fan-less industrial Box PC model, it adapts Intel 6th/7th Skylake or Kaby Lake -U series CPU, having advanced computer performance and low power consumption. ABOX-E800 storage can support 1 *M.2 and 1* pluggable 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN ports, 2* USB 2.0 ports, 4* USB 3.0 port, 2* RS232 (Optional support RS485); The power input is DC 12~28V voltage, and has over-current, over-voltage and reverse-polarity protection. Industrial fanless computer ABOX-E800 is designed to support 2* Mini-PCIe slot, and our unique MXM/aDoor expansion, very suitable for all kinds of industrial & automation applications.

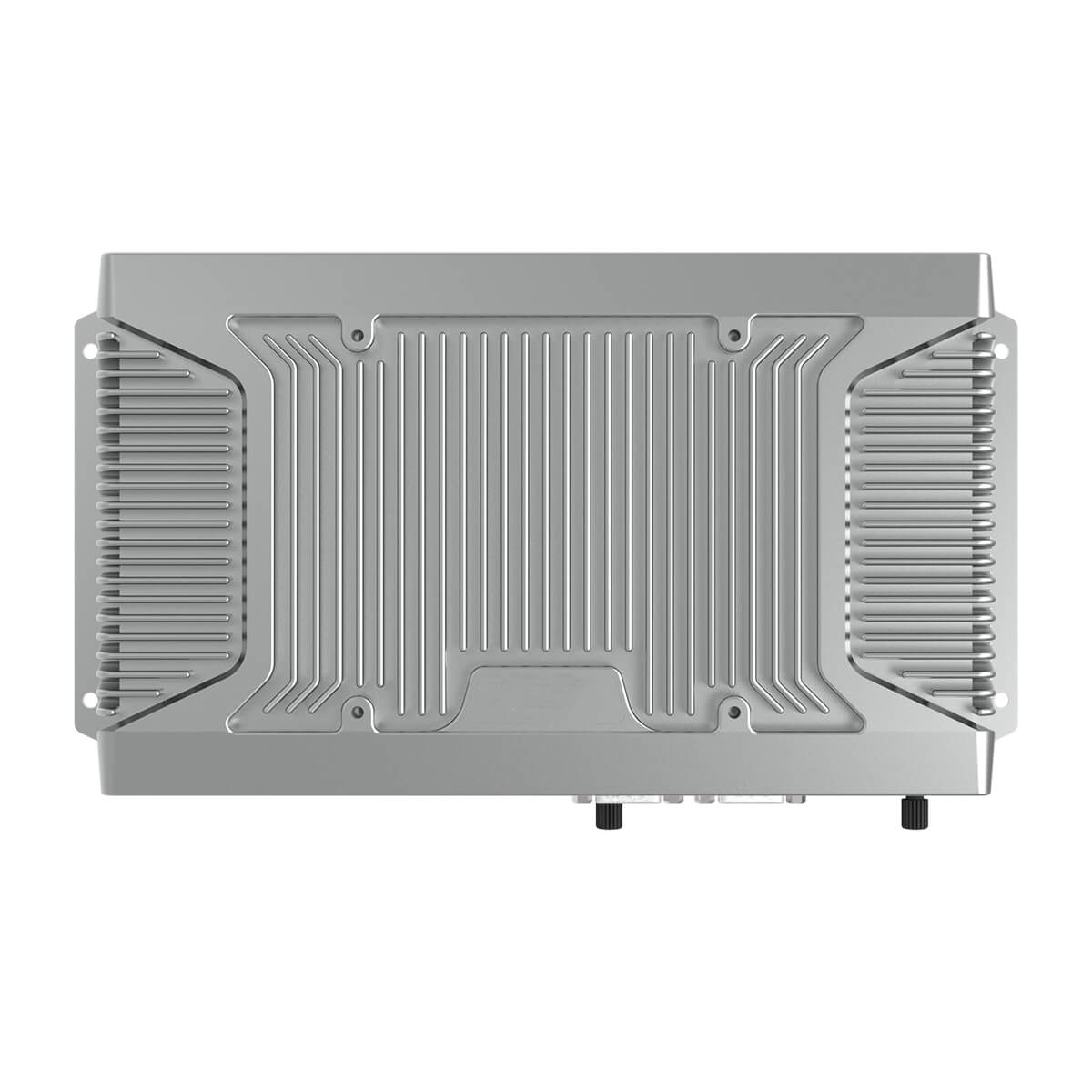

Industrial box computer ABOX-E800 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system.

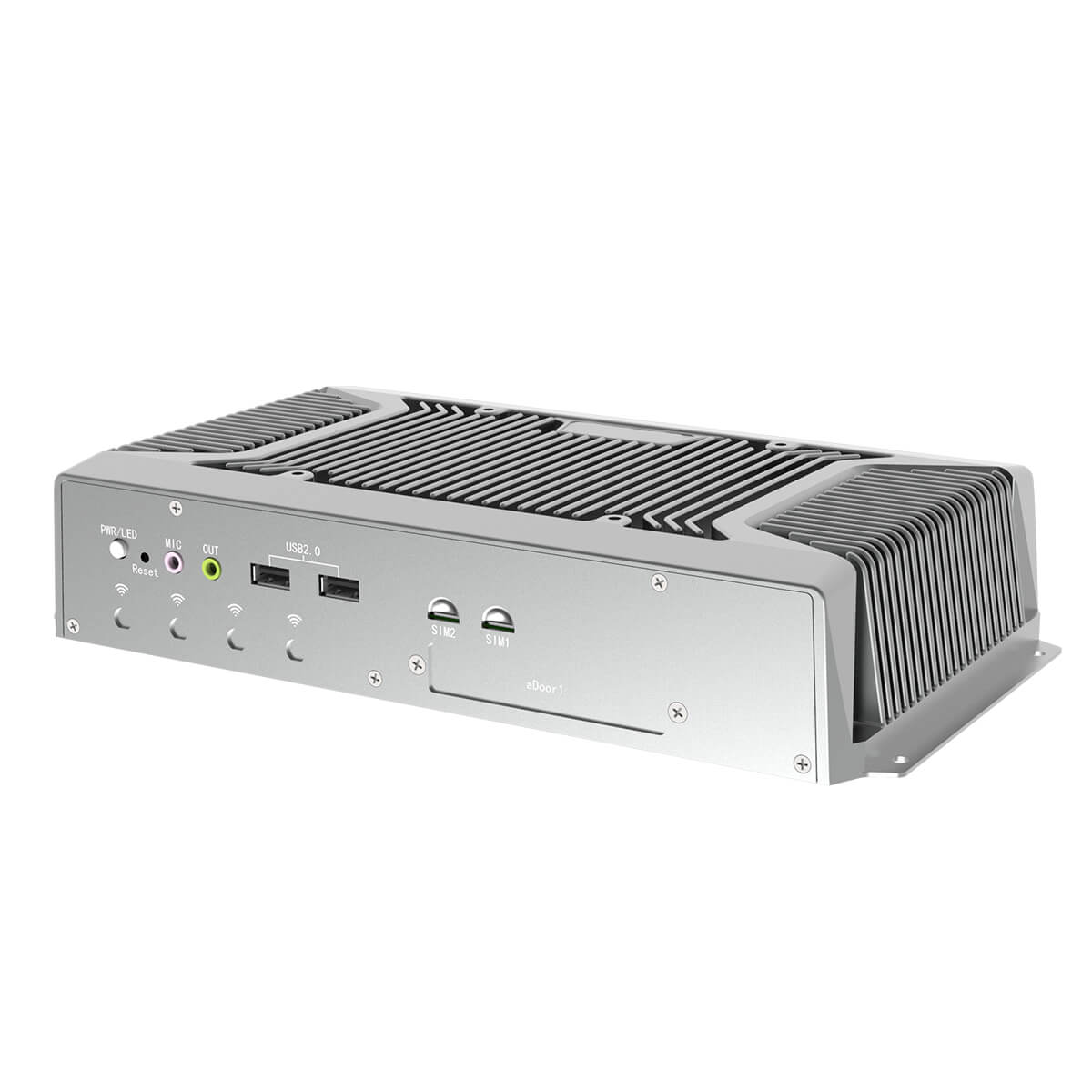

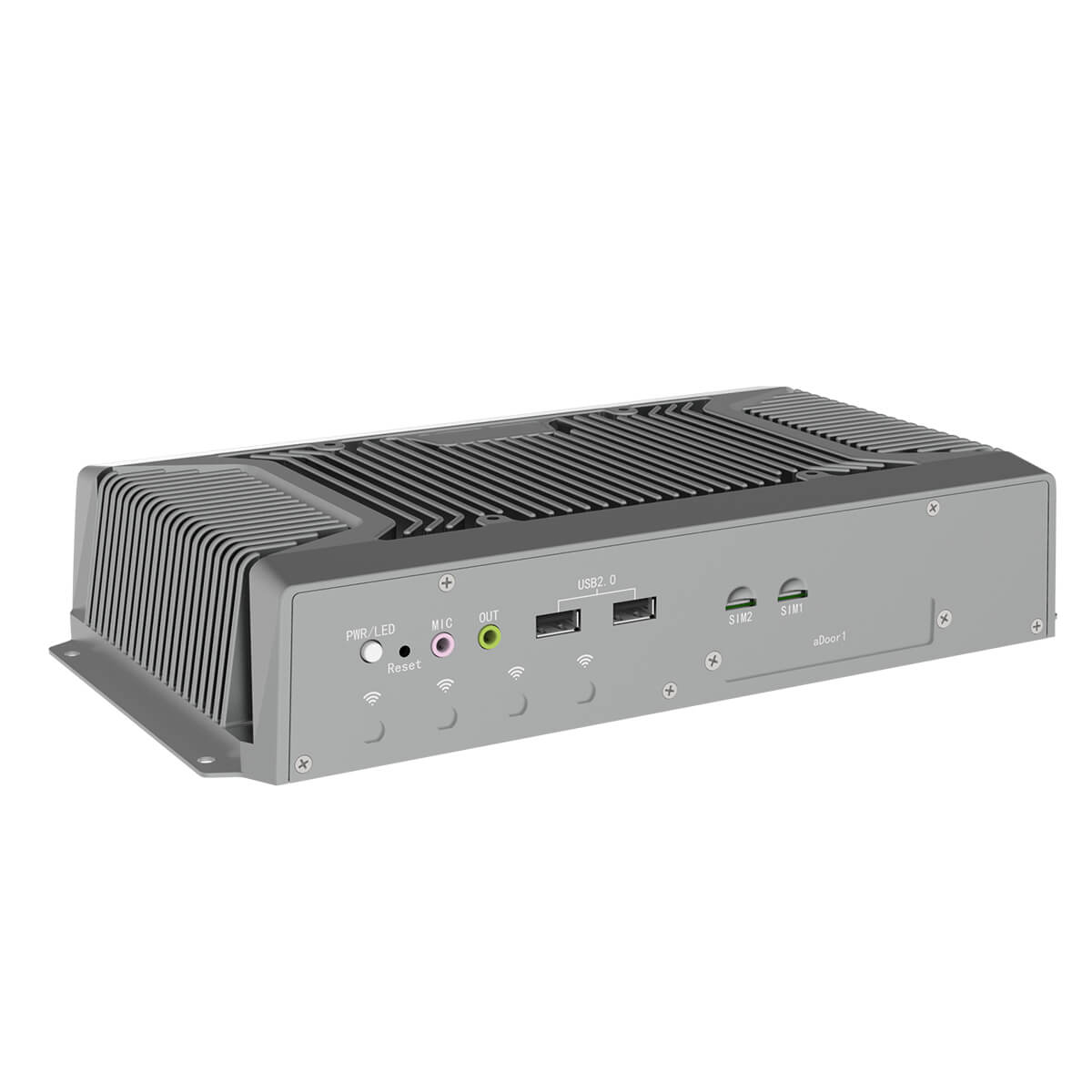

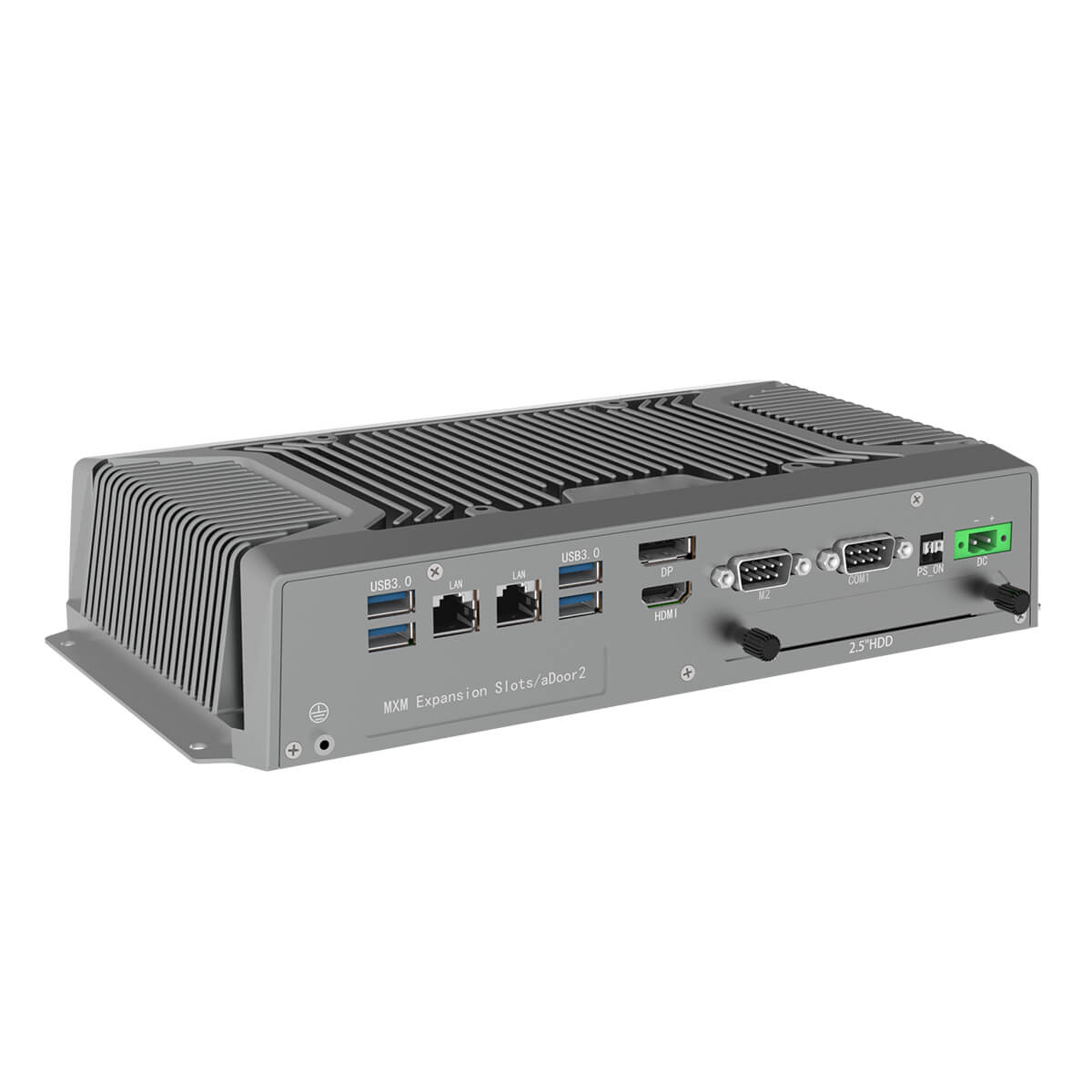

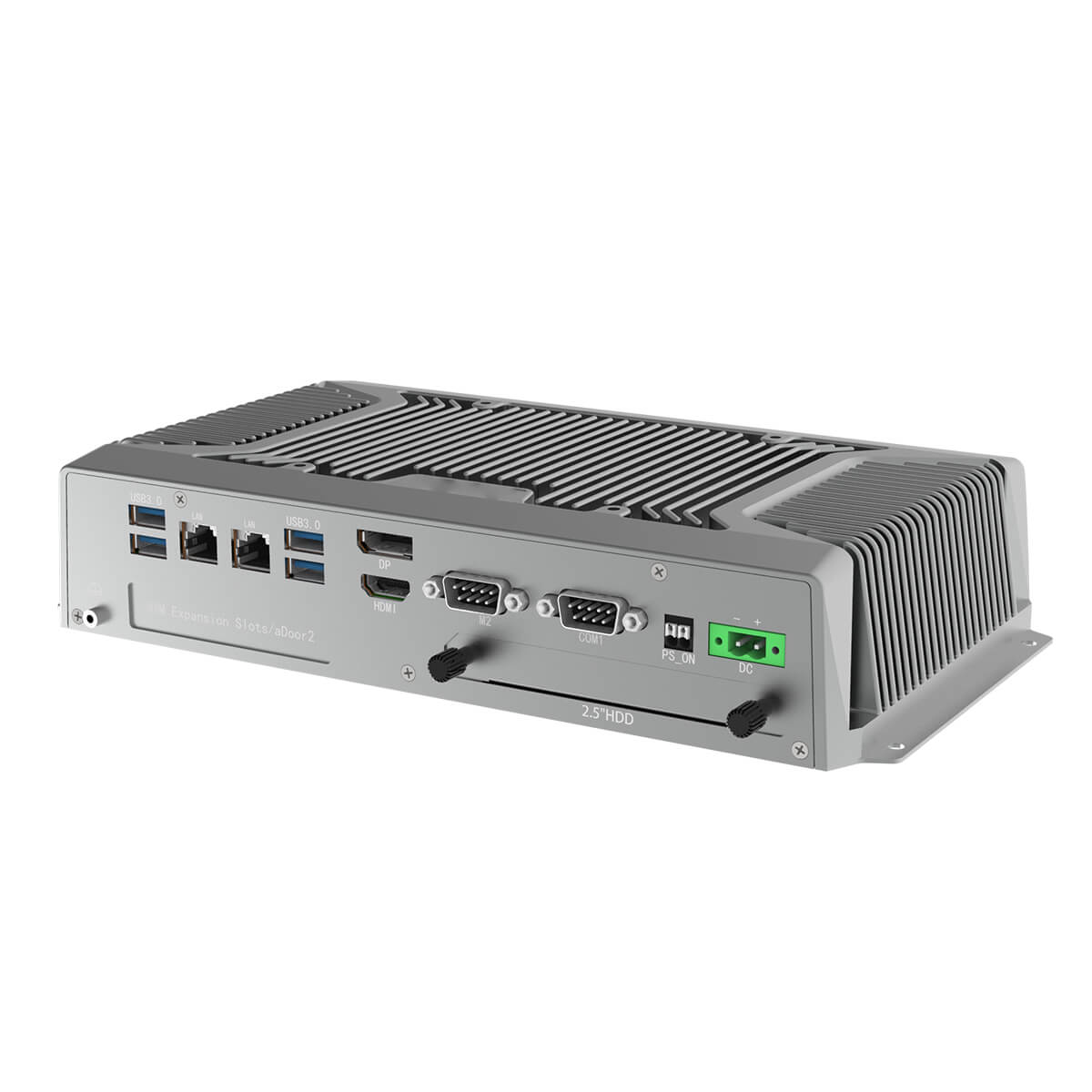

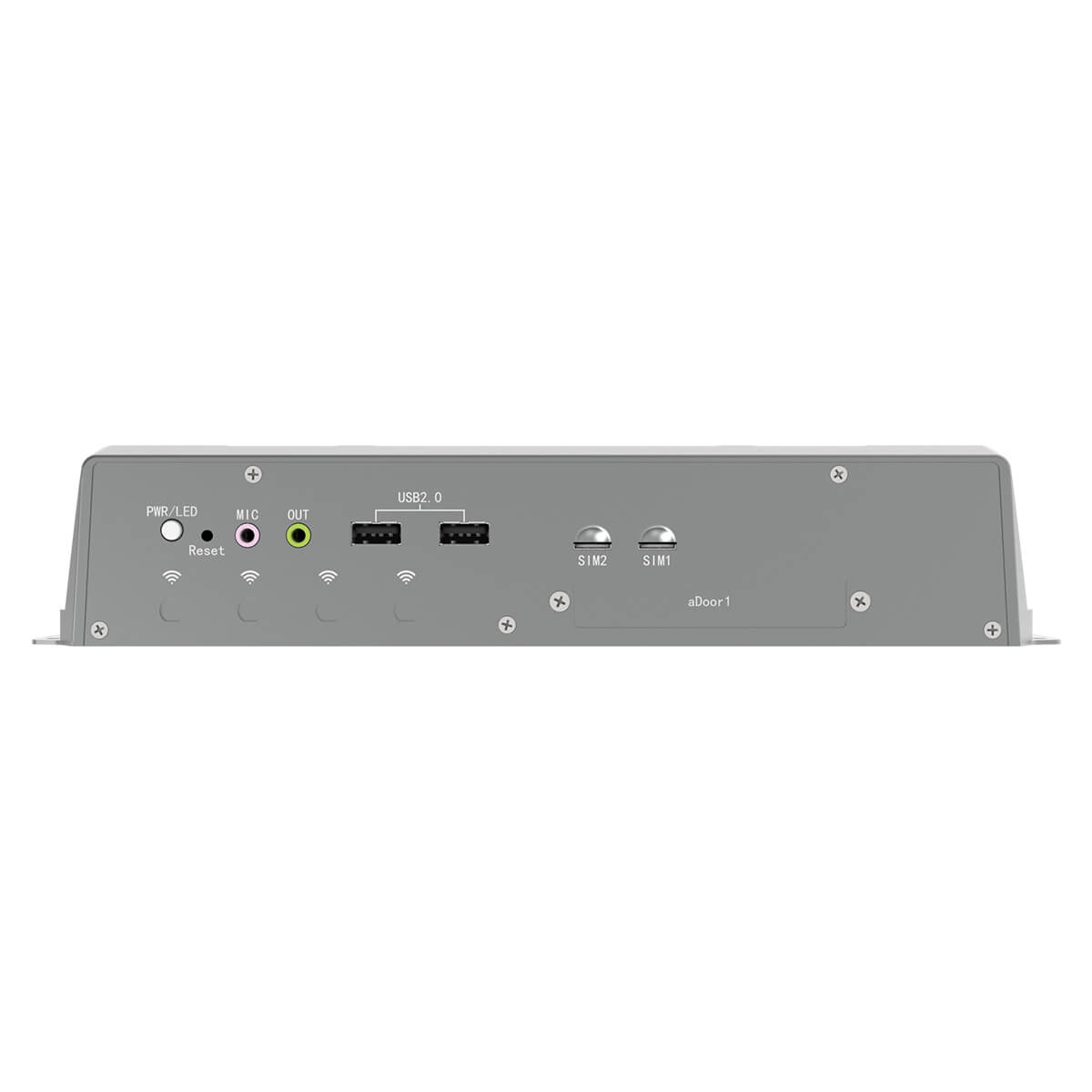

High performance industrial fanless box computer ABOX-E800
Key features:
- Intel® 6th/7th Skylake/Kaby lake Celeron, Core i3/i5/i7 low power processors;
- 2* Intel GLAN, optional support max. up to 6* GLAN;
- 2* RS232 ports, support RS485, optional support max. up to 4* RS232 ports;
- 2* Display ports: 1* HDMI, 1* DP;
- 1* DDR4 SO-DIMM, max. up to 16GB, 1* 2.5” SATA slot+ 1* M.2 slot storage;
- 4* USB3.0, 2* USB2.0, 2* Mini-PCIe expansion slots;
- DC 12~28v wide voltage power input.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| Processor | Intel® 6th/7th Core™ Celeron /i3/i5/i7 CPU, TDP=15W (fan-less) |
| 14nm SoC | |
| AMI EFI BIOS, support ACPI, CPU temperature, system voltage monitoring | |
| Memory | 1 x DDR4 SO-DIMM |
| Max. single RAM up to 16G | |
| Storage | 1 x 2.5〞Hard disk, support 5~9.5mm, hot pluggable
1 x M.2 (SATA3.0) |
| Display | CPU integrated Intel® HD Graphics |
| 1 x DP (Max. support resolution: 4096×2304 x24bpp, @ 60Hz)
1 x HDMI (Max. support resolution: 4096×2304, @ 24Hz) |
|
| Network | 2 x Intel® Ethernet Connection; LAN1: I211-AT, LAN2: I219LM, support WOL and jumbo frame |
| 1x Mini-PCIE (full-size, Wi-Fi/BT, optional)
1x Mini-PCIe (full, support 3G/4G, optional) 1 x SIM slot |
|
| Audio | Realtek ALC662VD |
| 1 x Mic-in + 1 x Audio-out | |
| I/O | 6 x USB (4x USB3.0 + 2x USB2.0) |
| 2 x DB9 (support RS485/RS232) | |
| Expansion I/O | 1x MXM 3.0 (Support 4x GbE ports, or 16* GPIO isolated)
1* Standard aDoor expansion modules 8* GPIO |
| Power | DC |
| 1 x 2pin 5.08 phoenix terminal, with hole lock | |
| Default 12~28V wide voltage power input (Default with 12V adapter) | |
| LED/Switch | 1 x power on button （including status LED light）
1x external switch signal interface |
| 1 x reset/restart button (Long press ≥3s when power of, clear CMOS; press 0.2~1s reset when power on) | |
| Watchdog | Programmable 255 seconds |
| OS | Windows 7/8.1/10, Linux |
| Structure | |
| Treatment | Spraying process |
| Color | Iron grey color |
| Cooling | Fan-less design |
| Weight | About 1.8 kg (Net) |
| Dimension | 270mm(L) x 145mm(W) x 53mm(H) |
| Mounting | Desktop, wall mount, VESA mount (100 x 100mm) |
| Environmental | |
| Operation temp. | Operating temp.: -20°C ~60°C (Industrial SSD) |
| Storage temp. | Storage temp.: -40°C ~80°C |
| Humidity | 10%~90%@40°C (non-condensation) |
| Vibration | SSD：3Grms@5~500Hz，random，1 hr/axis； |
| Shock | 10G/peak (11ms sec) |

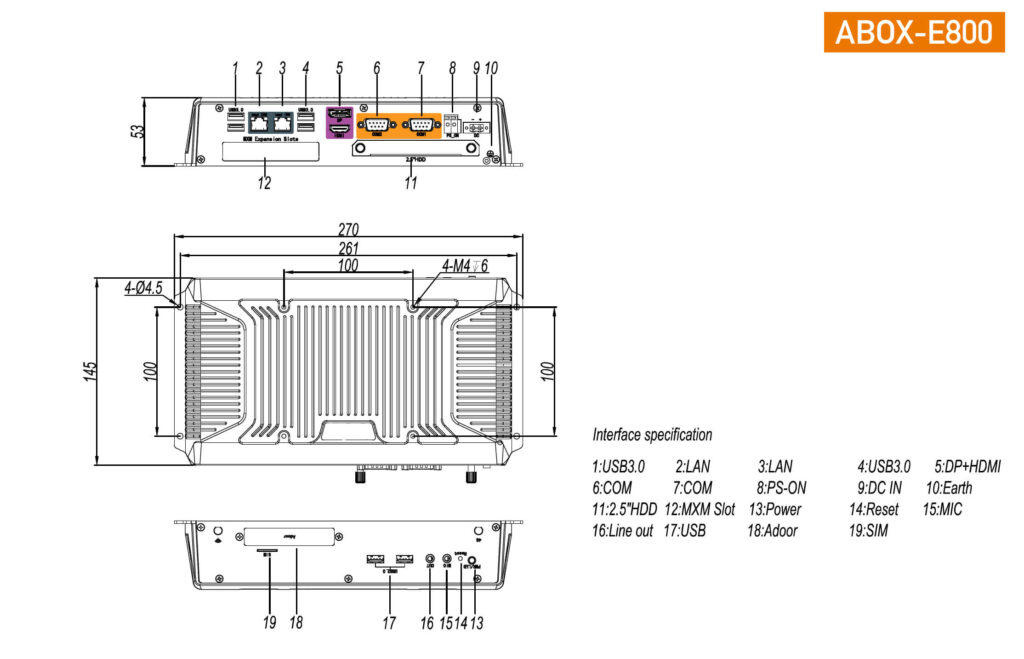

Product Dimension
Product Dimension
