Mainkco IPC Low Power industrial fanless box computer ABOX-E820 is a high-performance industrial Box PC model, it adapts Intel Apollo Lake Quad-core J3455 CPU, having advanced computer performance and low power consumption. ABOX-E820 storage can support 1 * mSATA and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN ports, 6* USB 3.0 port, 2* RS232 (Optional support RS485), 1*HDMI and 1*DP; The power input is wide DC 12~28V voltage input range, and has over-current, over-voltage and reverse-polarity protection. Industrial fanless computer ABOX-E820 is designed to support 1* Mini-PCIe slot, and unique aDoor expansion, very suitable for all kinds of industrial & automation applications.

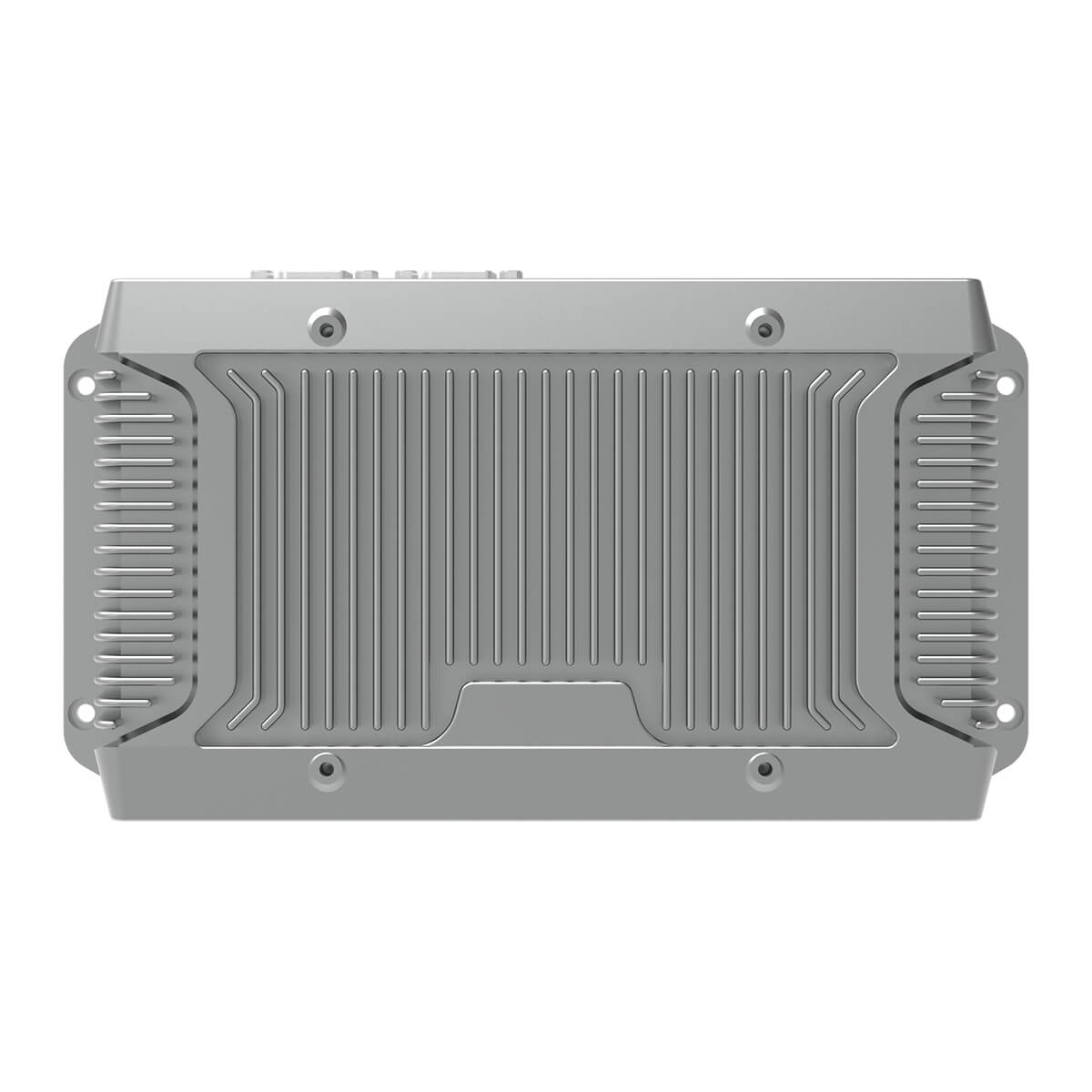

Industrial box computer ABOX-E820 uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system.

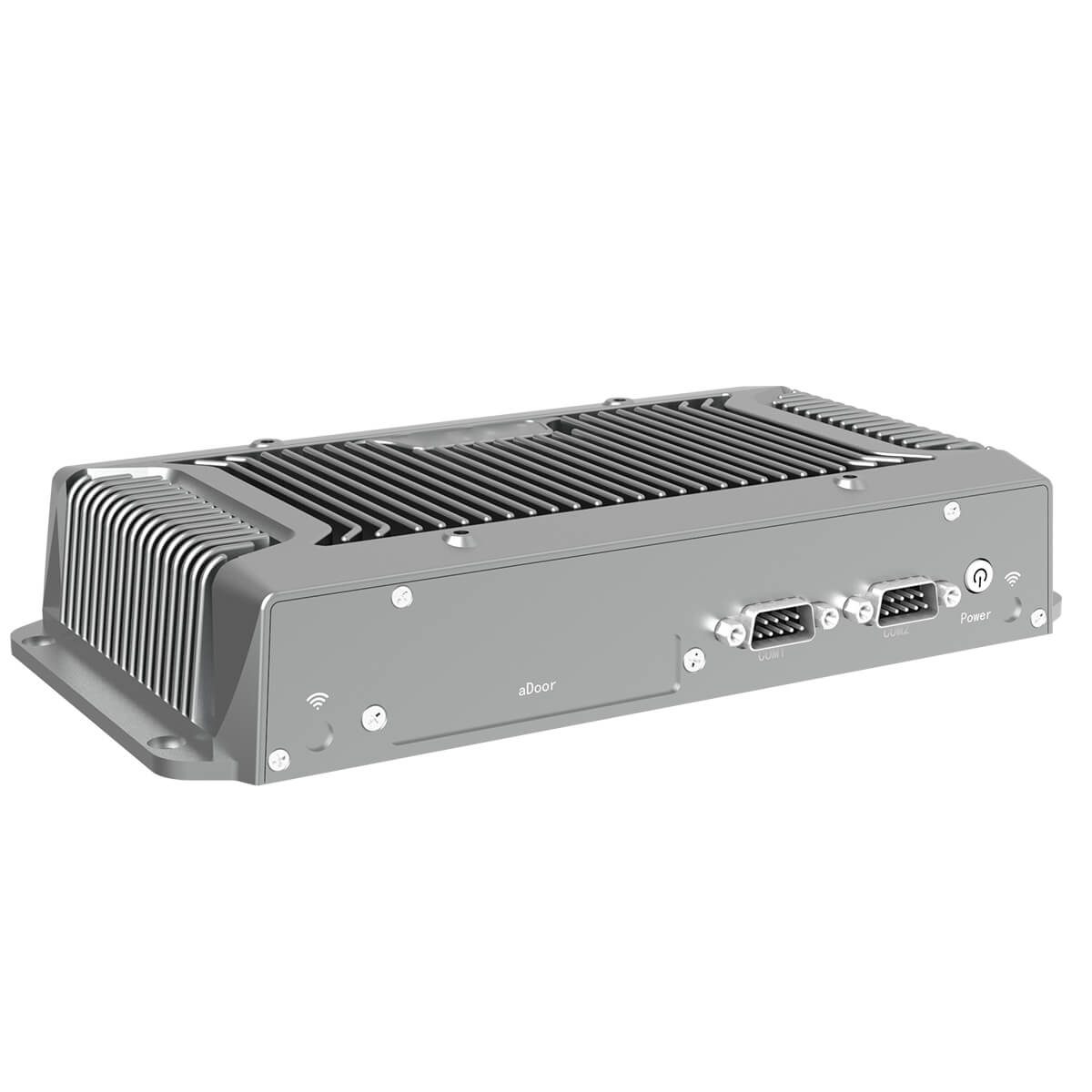

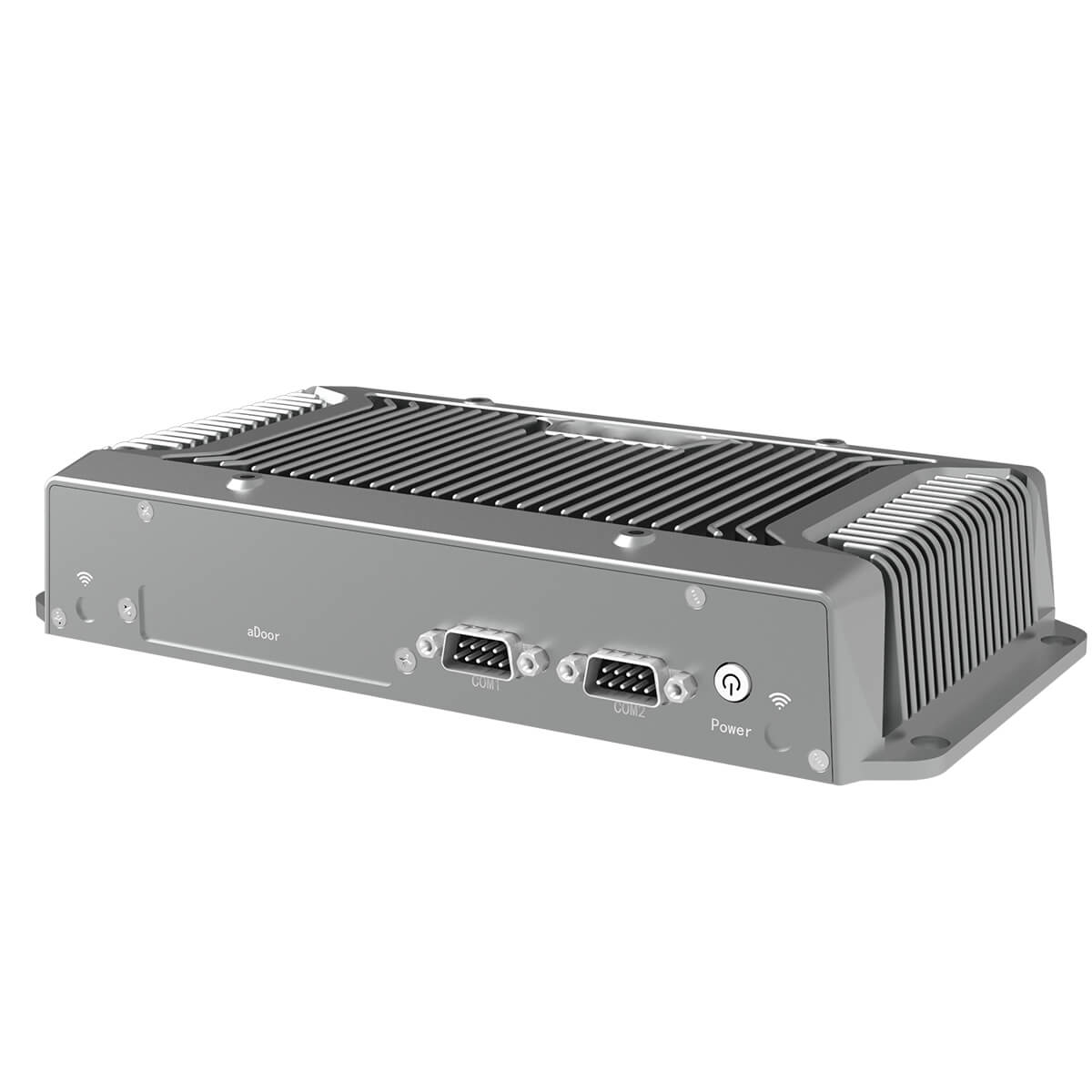

Low Power industrial fanless box computer ABOX-E820
Key features:
- Intel® Apollo Lake Celeron J3455 Quad-core low power processors;
- 2* Intel GLAN, optional support Wi-Fi/4G/BT wireless communication;

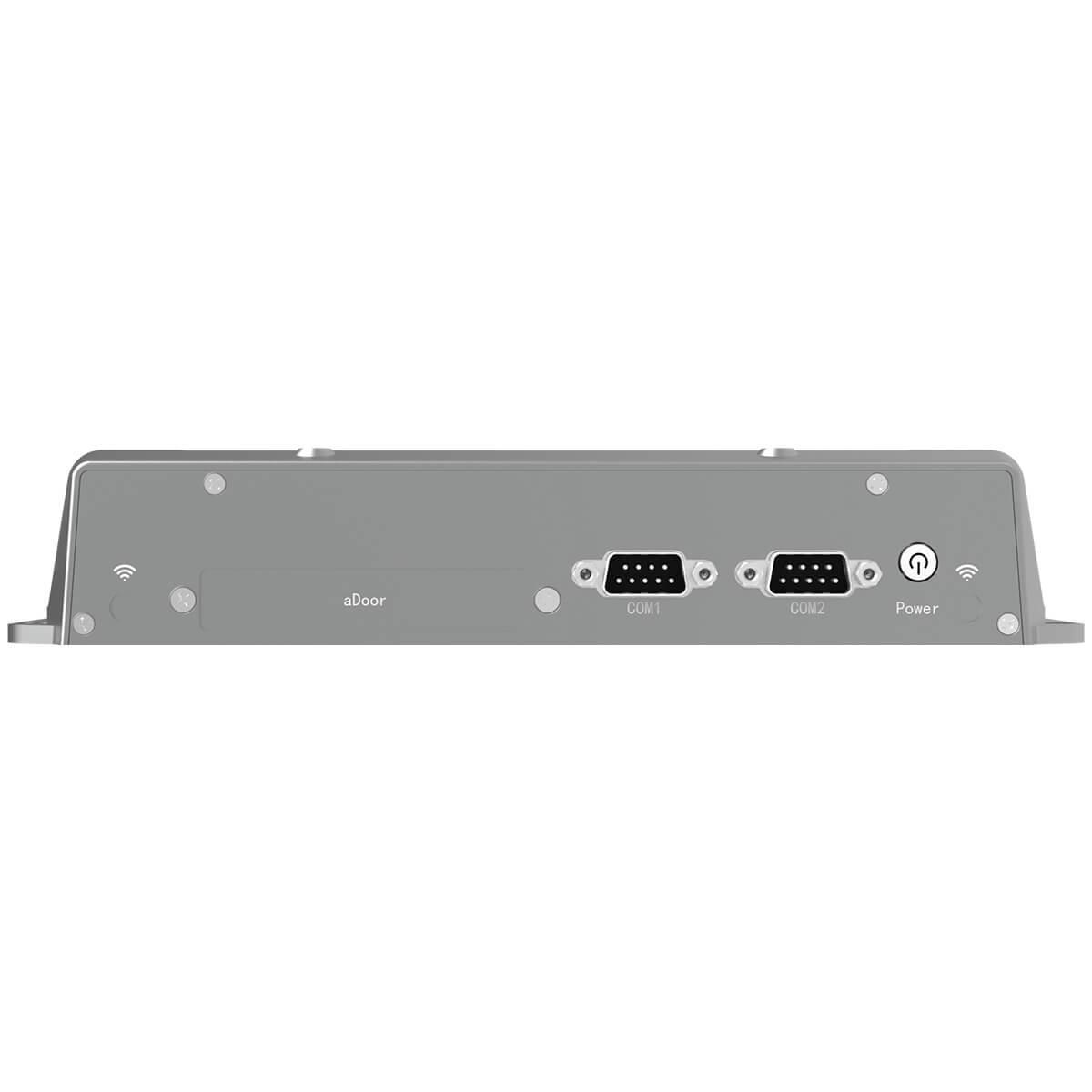

- 2* DB9 ports, support RS232/RS485;
- 2* Display ports: 1* HDMI, 1* DP;
- Onboard 4G or 8G memory, 1* 2.5” SATA slot+ 1* mSATA slot storage;

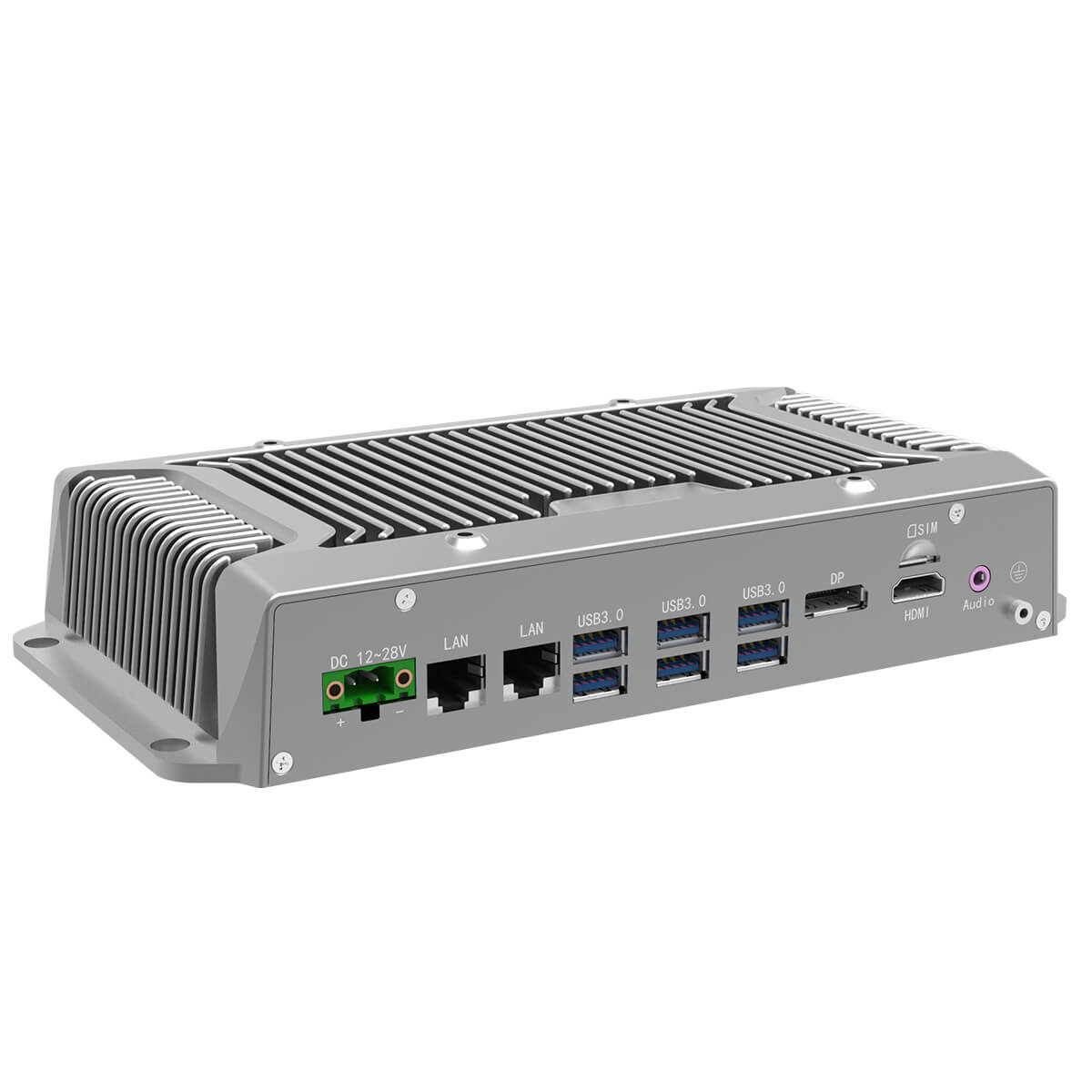

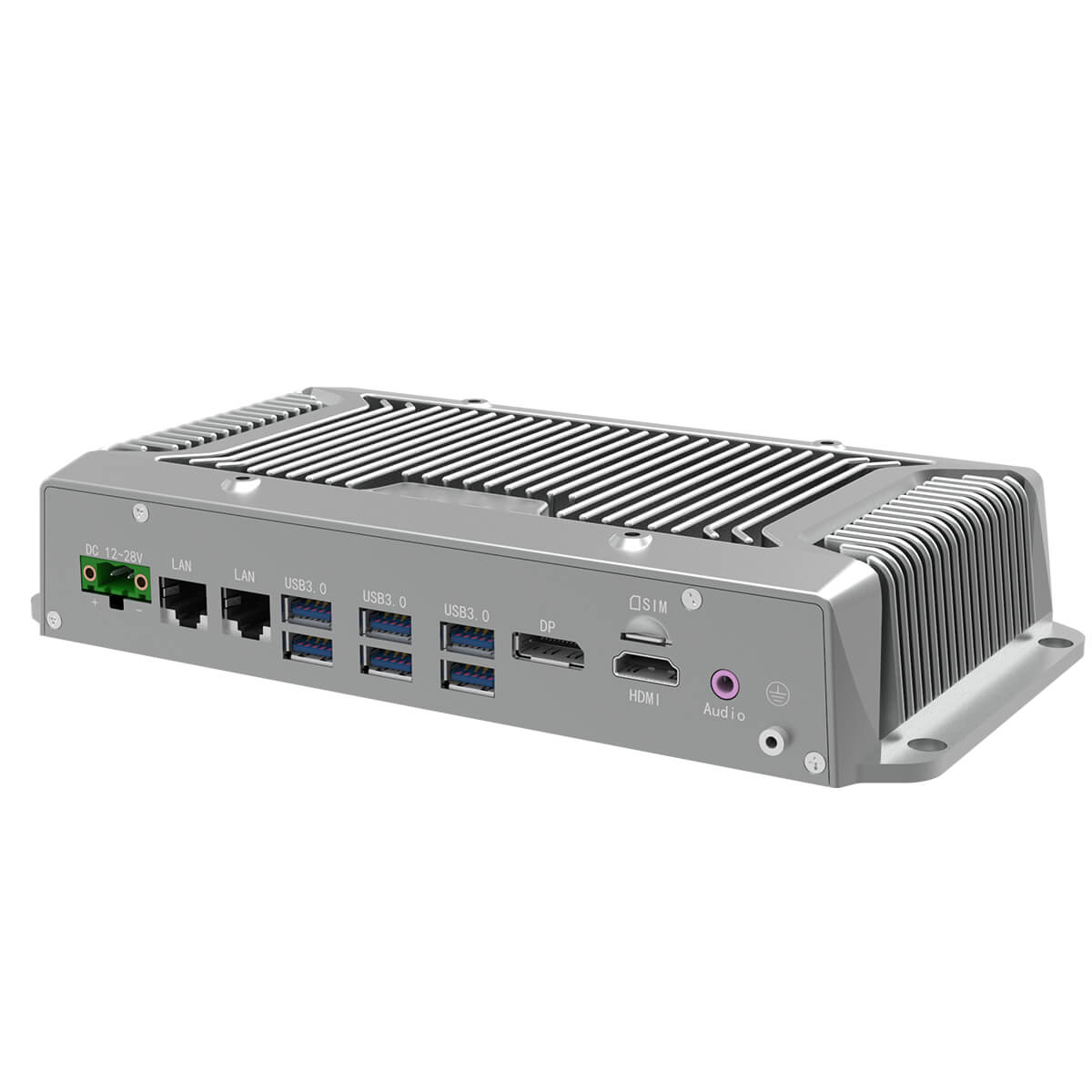

- 6* USB3.0, 1* Mini-PCIe expansion slots;
- DC 12~28V wide voltage power input.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| Processor | Intel® Apollo Lake J3455, Quad-core 1.5Ghz, TDP=10W (fan-less) |
| SoC | |
| AMI EFI BIOS, support ACPI, CPU temperature, system voltage monitoring | |
| Memory | On-board 8G/4G memory |
| Storage | 1 x 2.5〞SATA
1 x mSATA |
| Display | CPU integrated Intel® HD Graphics |
| 1 x DP (Max. support resolution: 4096×2304 x24bpp, @ 60Hz)
1 x HDMI (Max. support resolution: 3840×2160, @ 24Hz) |
|
| Network | 2 x Intel® Ethernet Connection; support WOL and jumbo frame |
| 1x Mini-PCIE (full-size, Wi-Fi/BT, 3G/4G, optional)
1 x SIM slot |
|
| Audio | 2-in-1 3.5mm Audio port |
| I/O | 6 x USB3.0 |
| 2 x DB9 (support RS485/RS232) | |
| Expansion I/O | 1x standard aDoor module expansion |
| Power | Terminal |
| DC 12~28V wide voltage power input (Default with 12V adapter) | |
| LED/Switch | 1 x power on button （including status LED light）
1x external switch signal interface |
| 1 x reset/restart button (Long press ≥3s when power of, clear CMOS; press 0.2~1s reset when power on) | |
| Watchdog | Programmable 255 seconds |
| OS | Windows 10, Linux |
| Structure | |
| Treatment | Spraying process |
| Color | Iron grey color |
| Cooling | Fan-less design |
| Weight | About 1.3 kg (Net) |
| Dimension | 235 mm(L) x 124.5mm(W) x 42mm(H) |
| Mounting | Desktop, wall mount, VESA mount (100 x 100mm) |
| Environmental | |
| Operation temp. | Operating temp.: -20°C ~60°C (Industrial SSD) |
| Storage temp. | Storage temp.: -40°C ~80°C |
| Humidity | 10%~90%@40°C (non-condensation) |
| Vibration | SSD：3Grms@5~500Hz，random，1 hr/axis； |
| Shock | 10G/peak (11ms sec) |

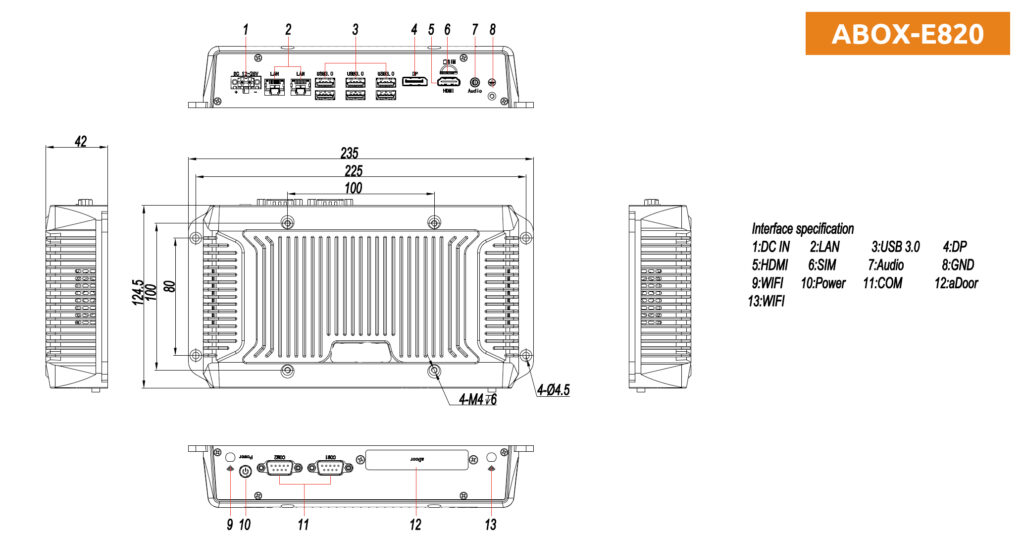

Product Dimension
