Background:
As a means of warning, the motor vehicle honking through the sound to warn the pedestrians and vehicles surrounding. With the surge of vehicles, wanton honking not only affects the normal travel and life of citizens, but also creates a disharmonious noise for the civilized city. It is very necessary to capture the random noise of motor vehicles. In the past, in law enforcement, law enforcement officers can only rely on human ears to determine whether to whistle, and can not give convincing evidence. The horn capture system is an intelligent capture system that meets the demand of noise and honking in the high-tech era. Its core is to accurately locate and capture the vehicles illegally honking on the road in real time.
Industry Requirement
Based on acoustic positioning technology and artificial intelligence technology, the vehicle horn capture system is mainly composed of three subsystems: acoustic probe, license plate recognition capture system and background law enforcement linkage system. It is equipped with air sonar, high-definition camera, controller, LED display, fill light, switch and other equipment hardware. When the system is working, the environmental sound in the monitoring area will be collected in real time through air sonar. Once the siren signal appears, real-time positioning will be conducted. At the same time, the HD video camera will be driven to record “sound video” to capture the license plate number of the honking vehicle and upload it to the scene LED display and law enforcement platform. The controller mainly realizes the recognition and positioning, image synthesis operation and other functions, and needs to meet the following requirements:
➤ Industrial-level design, compact structure, with a high-performance processor.
➤ Higher reliability requires 24 hours of normal and continuous operation, realizing all-weather automatic monitoring and detection of operating vehicles in the monitored lane, without special personnel on duty.
➤ System compatibility, support for local storage and network transmission, compatible with WINDOWS operating system and printer connection.
➤ It meets the industrial technical requirements of national standards, is dust-free, seismic, high temperature, high humidity and other strong capabilities, and can ensure the stable and safe operation of the system in a harsh environment.

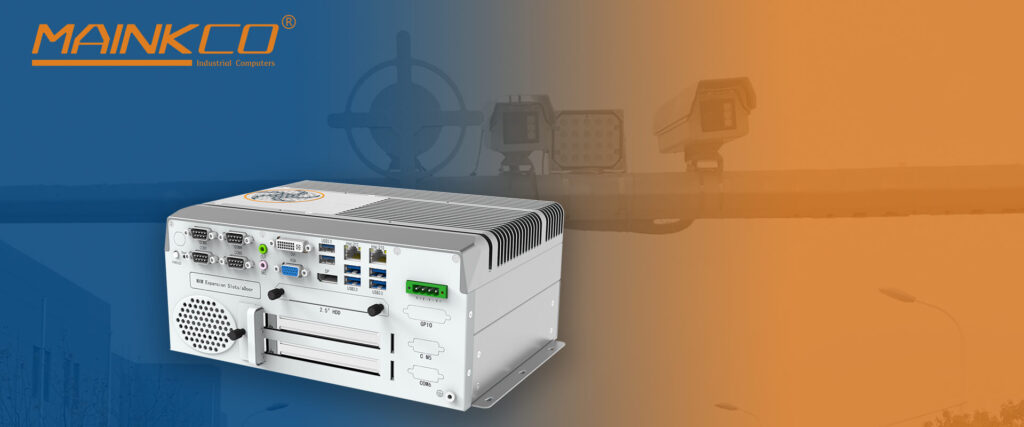

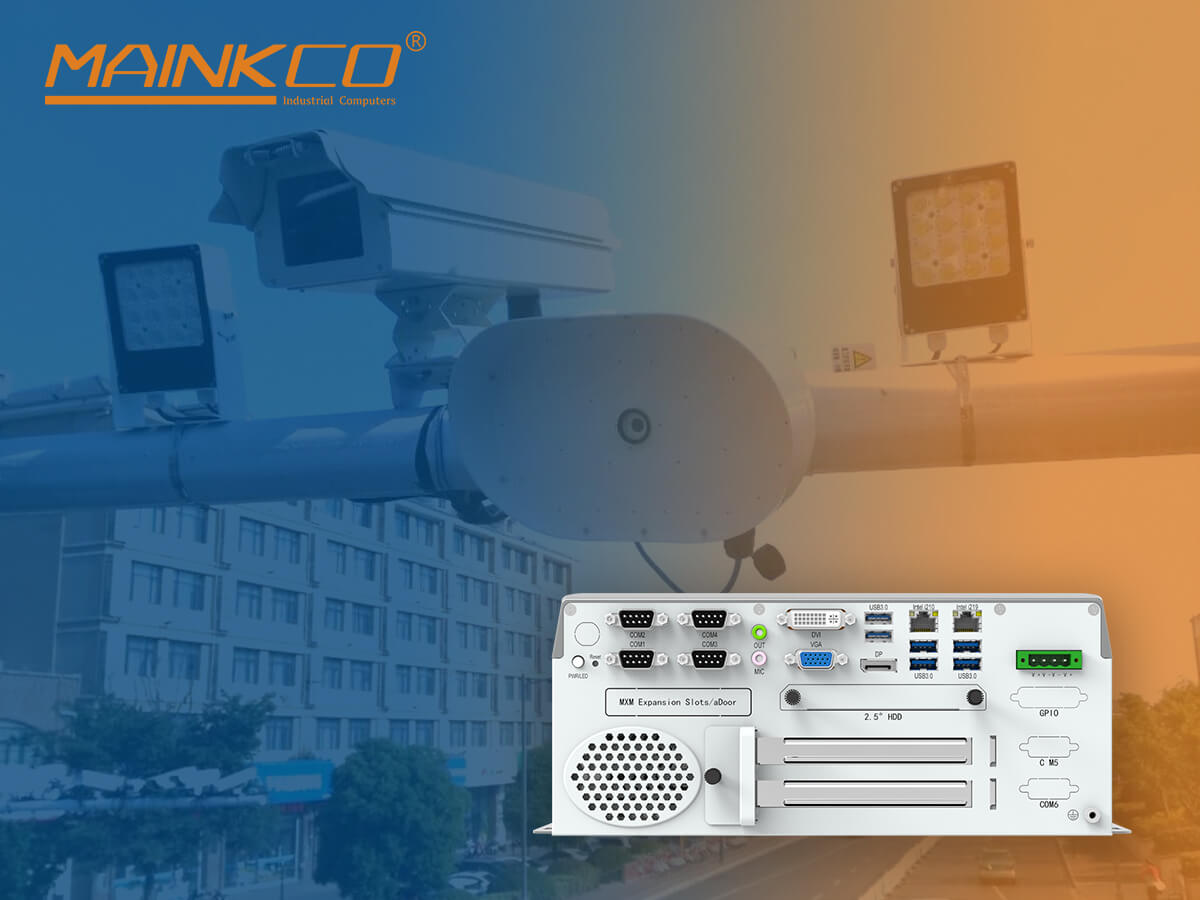

MAINKCO AI Edge computing Box PC ABOX-E7DS
In order to meet the requirements, Mainkco strongly recommend AI Edge computing Box PC ABOX-E7DS for horn capture system. ABOX-E7DS is based on the Intel LGA1151 6th/7th/8th/9th Desktop 65W CPU processors platform. It directly uses a full-performance desktop platform processor, combined with Intel Media SDK to achieve multi-channel graphics processing. ABOX-E7DS AI edge computing Box PC provides high AI computing value. The ABOX-E7DS also offers our unique MXM/aDoor modules expansion to meet different IO requirement of industrial applications, and multiple high-speed I/O interfaces. ABOX-E70S Box PC is designed with rich IO interfaces for industrial applications, including 2 GLAN, 6 USB3.0, 4 RS232, 1 DVI, 1 VGA, 1 DP displays.
In addition to high-performance computing and high-speed communication, it also supports 3 storage disks and support RAID 0/1 feature. The AI edge computing Box PC ABOX-E7DS offers 2 PCIe expansion slot, offers 1* PCIe 3.0 x16 and 1* PCIe 3.0 x4 options, so as to be an ideal AI vision Box PC for machine vision applications or other AI applications.
Key features:
➤Support Intel® 6th/7th/8th/9th Core™ i7/i5/i3 desktop multicore processors;
➤Q170 (Alternative C236) industrial chipset;
➤2 DDR4 SO-DIMM, Dual channels, MAX. up to 32GB;
➤3 Display ports, support 3 hard disks storage;
➤expansion up to 10 USB ports, 6 Intel RJ45 ports, 6 COM ports;
➤Max. up to support Cambricon MLU270-S4 AI card (128TOPS);
➤Max. up to support NVIDIA GeForce GTX1660TI graphic card;
➤2 standard PCIe expansion slots;
➤Support wide voltage DC 9V ~ 36V power input
In the End:
At present, the illegal whistle capture system is mainly installed in urban road intersections, key sections, schools, hospitals, docks, organs and other key no-noise areas. The product characteristics of ABOX-E7DS can adapt to the characteristics of wide voltage power supply, strong vibration resistance and adaptation to the harsh environment in the illegal whistle capture system.
