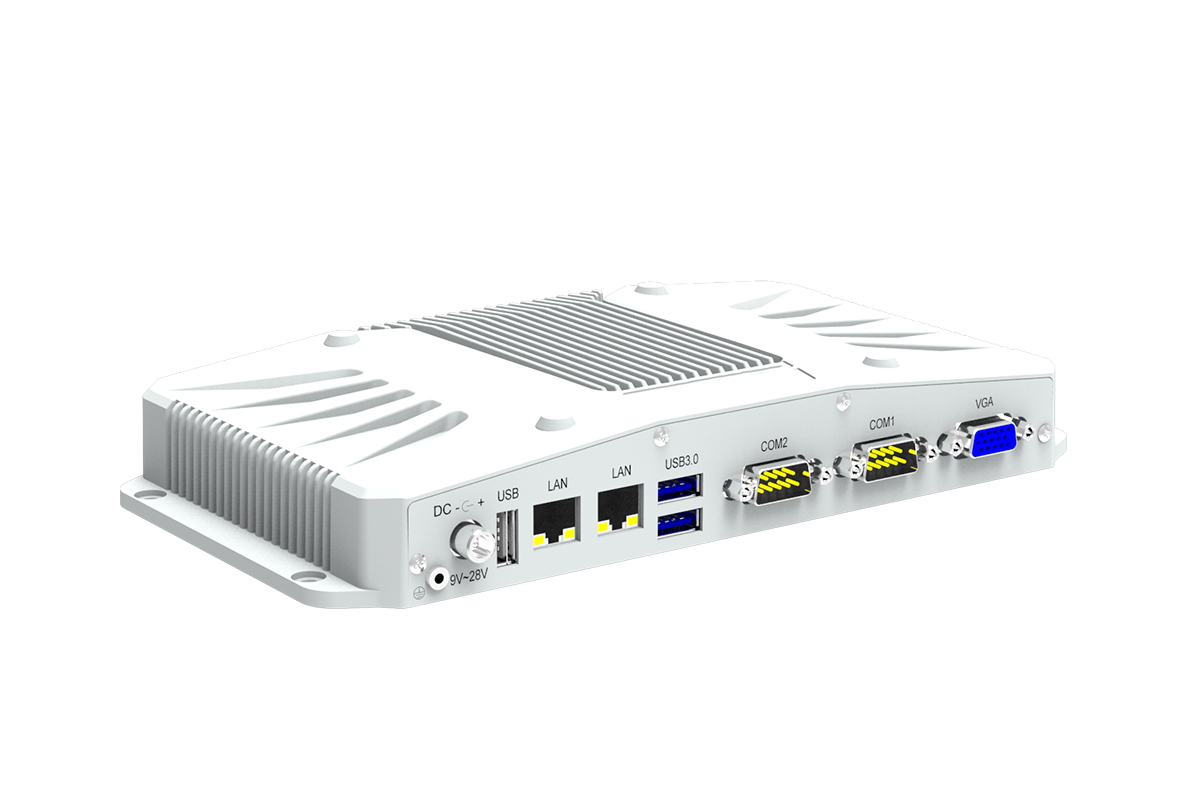

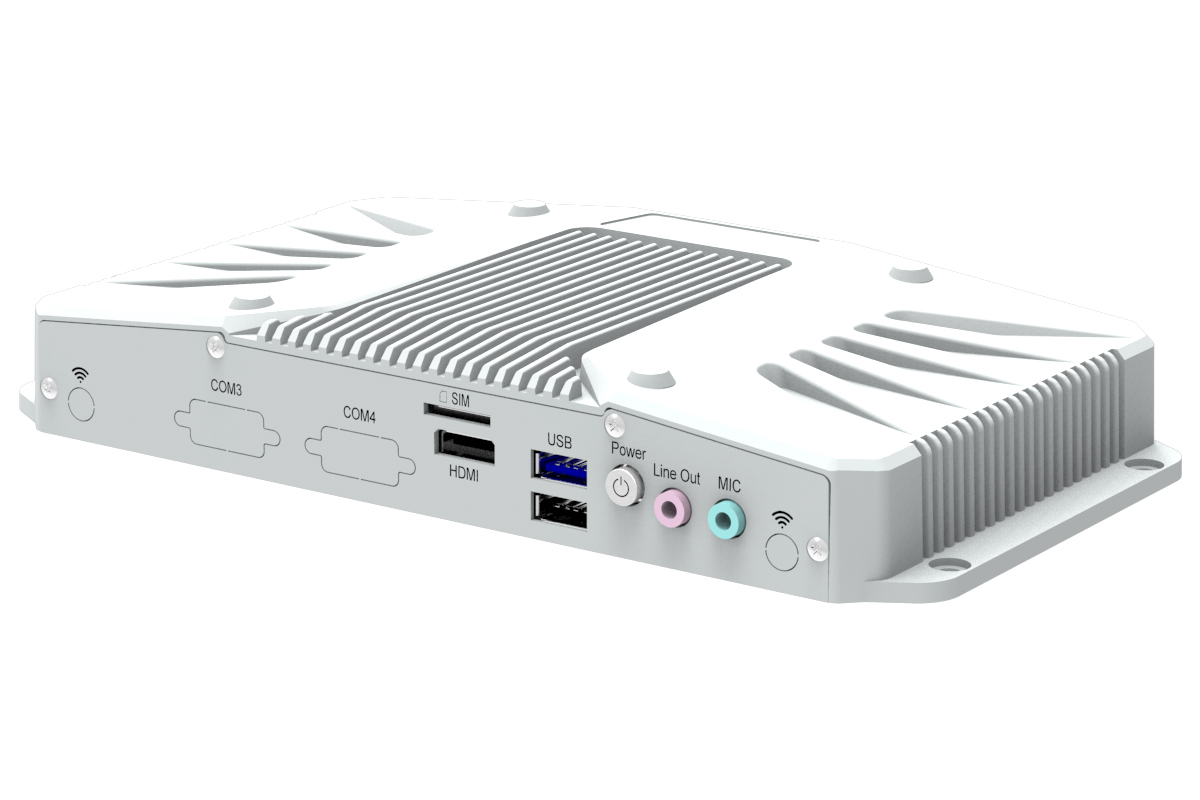

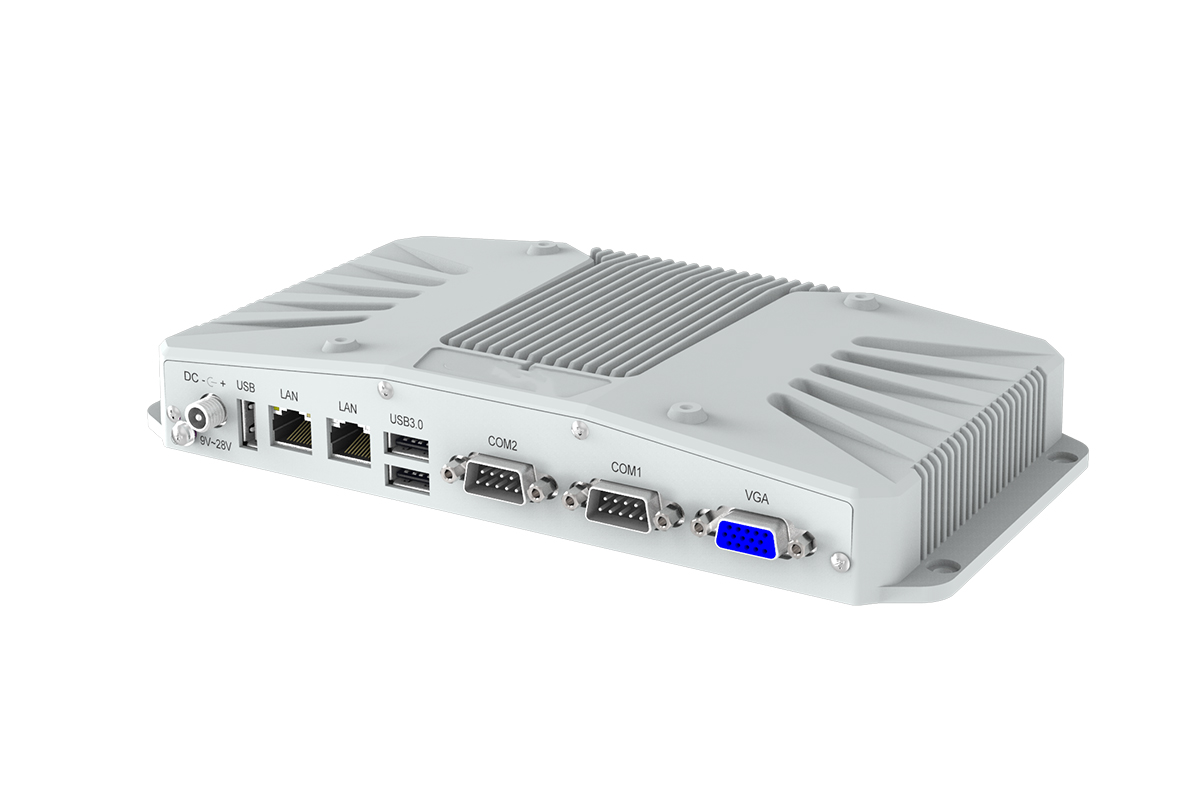

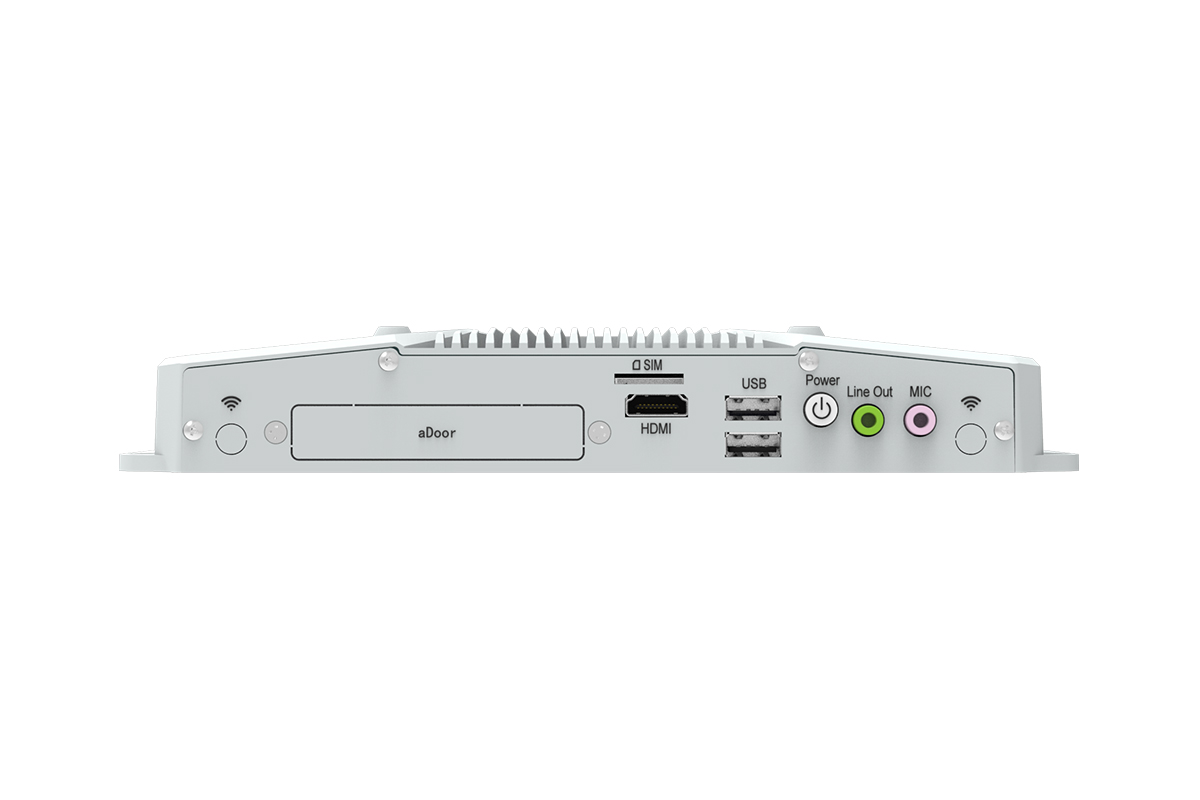

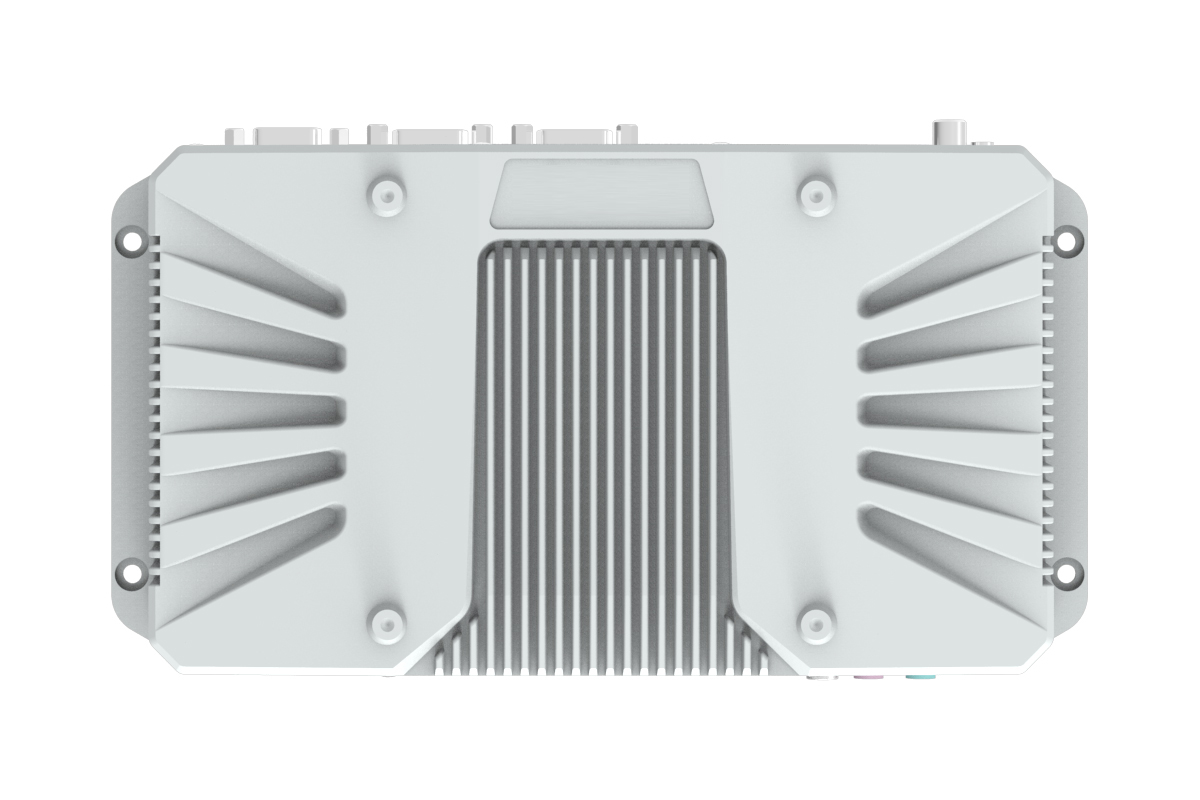

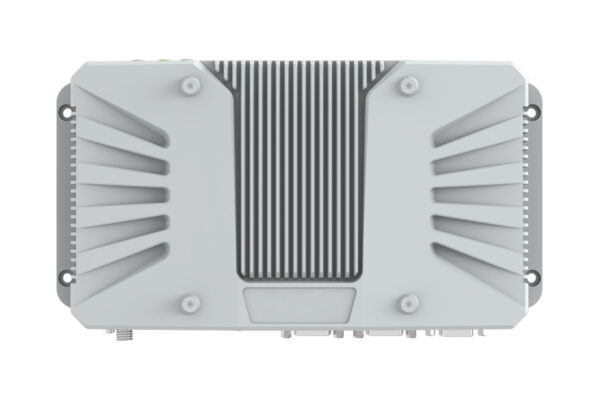

Mainkco IPC slim Box PC ABOX-E500 is a high-performance fan-less Box PC model, it adapts Intel Celeron J1900 CPUs, having advanced computer performance and low power consumption. Slim Box PC ABOX-E500 storage can support 1 *mSATA and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN ports, 2* USB 2.0 ports, 3* USB 3.0 port, 2* RS232 (Optional with 1* RS485); The power input is DC 9~28V voltage, and has over-current, over-voltage and reverse-polarity protection.
The Slim Box PC ABOX-E500 uses full-sealed box construction, and it can prevent dust from entering the device system. Its operating temp. is -20℃~+60℃, can be suitable for longer-time operating and harsh environment industrial application projects, such as intelligent transportation system, machine vision, medical device, textile machinery, rail transportation and industry automation.
Slim Box PC ABOX-E500 can be compatible with Windows 7, Windows 7 Embedded, Windows8, Windows10, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.
Slim Box PC ABOX-E500
Key features:
- Intel® Baytrail J1900 low power quad-core processors;
- Integrated 2x Intel GLAN, support jumbo frame;
- 2x COM ports, support 1x RS485;
- 2x Display ports, 5x USB ports;
- Extreme slim design for embedded environment;
- Support WIFI/4G wireless expansion;
- DC 9~28v wide voltage power input support.
"*" indicates required fields
SKU:
ABOX-E500
Category: Industrial Box PC
Tags: IoT Box PC, Industrial Box PC, Slim Box PC, Mini Box PC, Box PC, Ultra slim Box PC, Fan-less Box PC, Embedded Box PC, Ultra small Box PC
Description
Technical Data
Technical Data
System | |
Processor | Intel® Celeron Baytrail J1900, Quad-core, 2.0Ghz CPU, TDP=10W (fan-less) |
SoC | |
AMI SPI 64Mb, support ACPI, CPU temperature, system voltage monitoring | |
Memory | On-board 4G DDR3L-1600 Mhz |
Storage | 1x 2.5〞SATA + 1x mSATA |
Display | CPU integrated Intel® HD Graphics, support DirectX11 |
1 x HDMI (Max. support resolution: 1920 x 1200, @30Hz)
1 x VGA (Max. support resolution: 2048×1536) |
|
Network | 2 x Intel® I210-AT for 1000 Mbps |
1 x Mini-PCIE (Half/ full, support 802.11b/g/n, 3G/4G, optional)
1 x SIM card slot |
|
Audio | Realtek ALC662VD |
1 x Mic-in + 1 x Audio-out | |

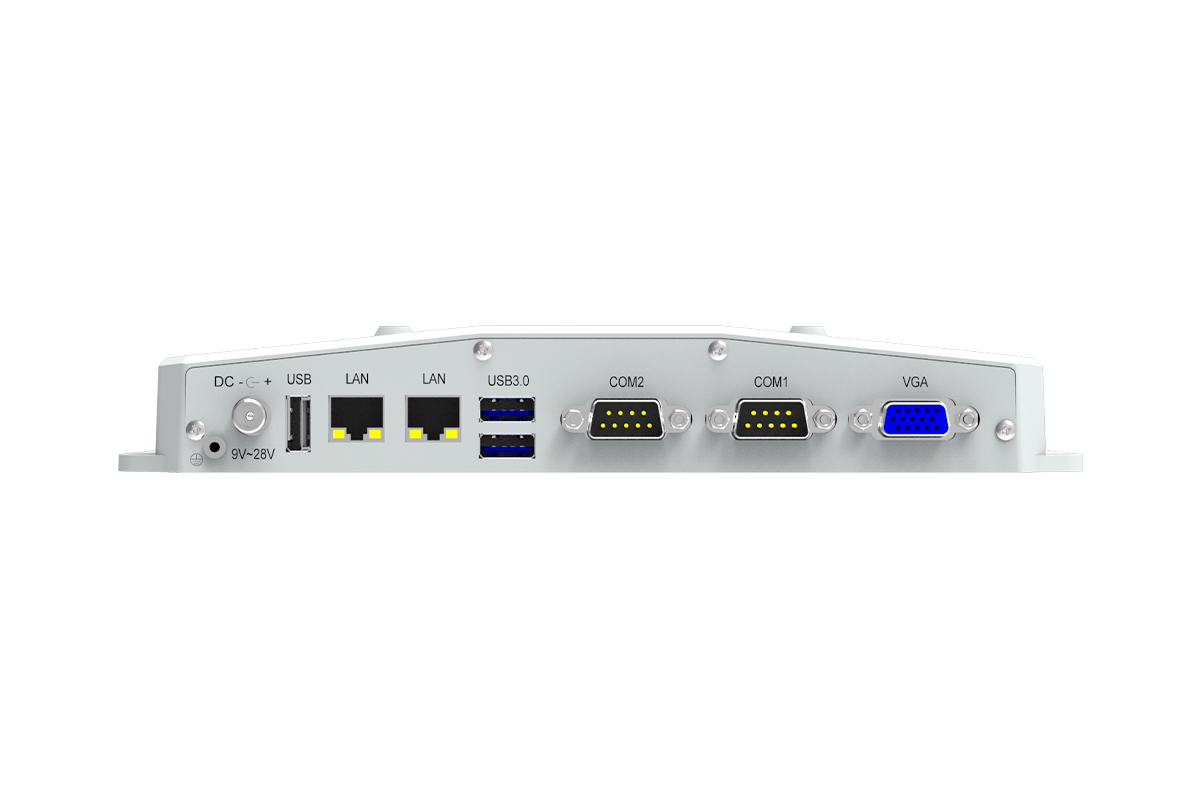

I/O | 3 x USB 3.0 + 2x USB2.0 |
2 x DB9 RS232 (COM1 support RS485, photoelectric isolation) | |
Expansion I/O | 1x Internal USB2.0 (Optional) |
8 x GPIO(4 IN 4 OUT,DI low level, DO high level)
8 x GPIO(4 IN 4 OUT, photoelectric isolated, 5V~40V wide voltage input,OMRON relay output, DB15, optional) |
|
1x Mini-PCIe for Wireless expansion | |
Power | DC |
Coaxial power outlet | |
Default 12V 5A adapter, (DC 12~28V wide voltage power input) | |
LED/Switch | 1 x power on button (including status LED light) |
Watchdog | Programmable 255 seconds |
OS | Windows 7/8.1/10, windows embedded, Linux |
Structure | |
Box structure | Whole machine die-casting molding |
Treatment | Spray-paint |
Color | industrial grey color |
Cooling | Fan-less design |
Weight | 1.1kg |
Dimension | 235mm(L) x 124.5mm(W) x 35mm(H) |
Mounting | Desktop, wall mount, VESA mount (100 x 100mm) |
Environmental | |
Operation temp. | Operating temp. -20°C ~ + 60°C (industrial SSD)
Operating temp.: 0~40°C (HDD) |
Storage | Storage temp.: -40°C ~ +80°C |
Humidity | 10%~90%@40°C (non-condensation) |
Vibration | SSD:3Grms@5~500Hz,random,1 hr/axis;
2.5〞HDD:1Grms@5~500Hz,random,1 hr/axis |
Shock | 10G/peak (11ms sec) |

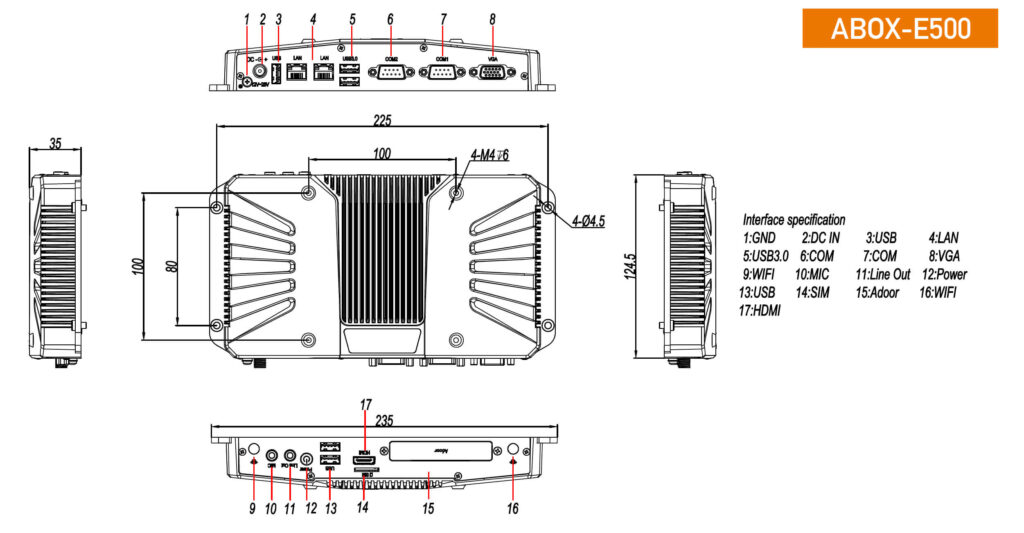

Product Dimension
Product Dimension
