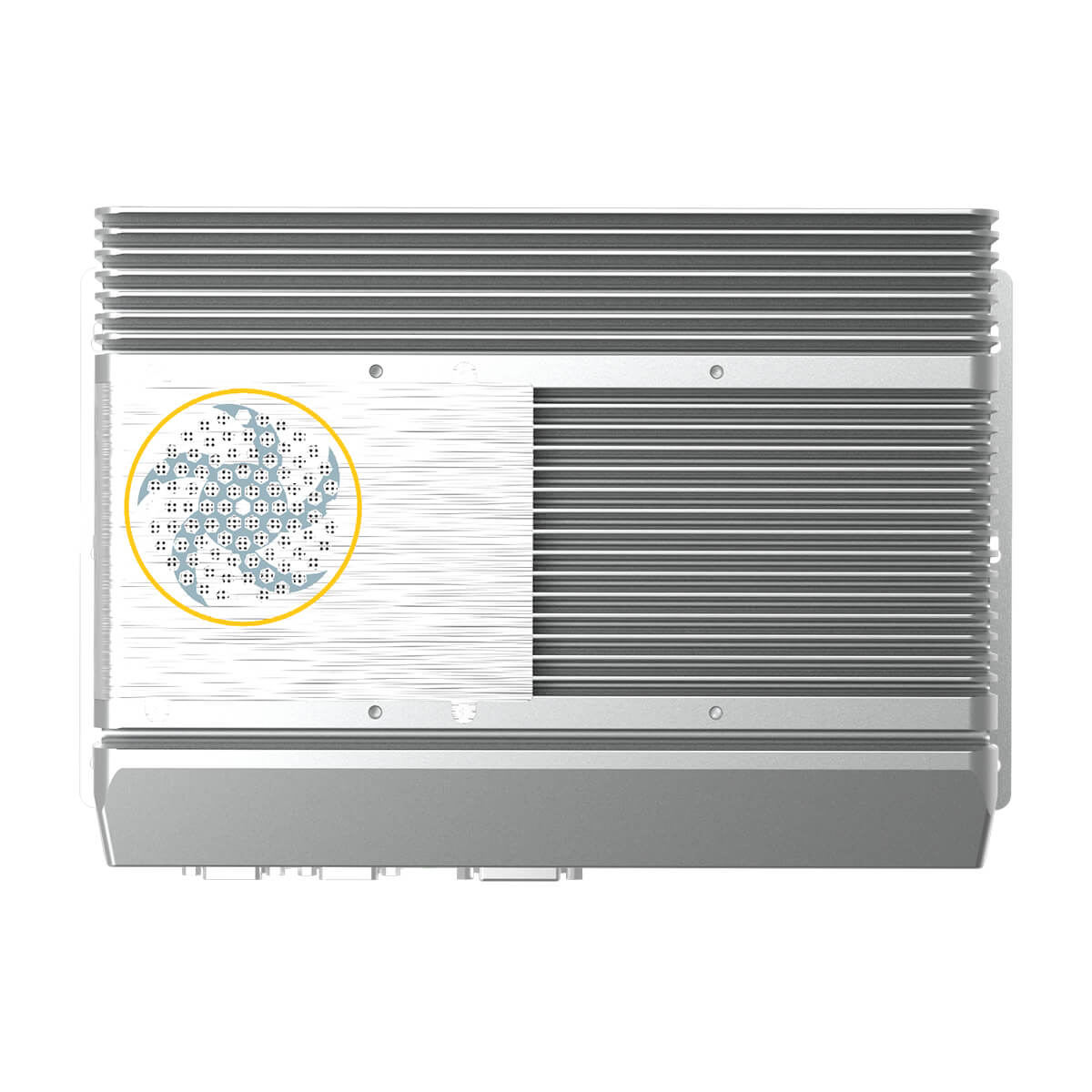

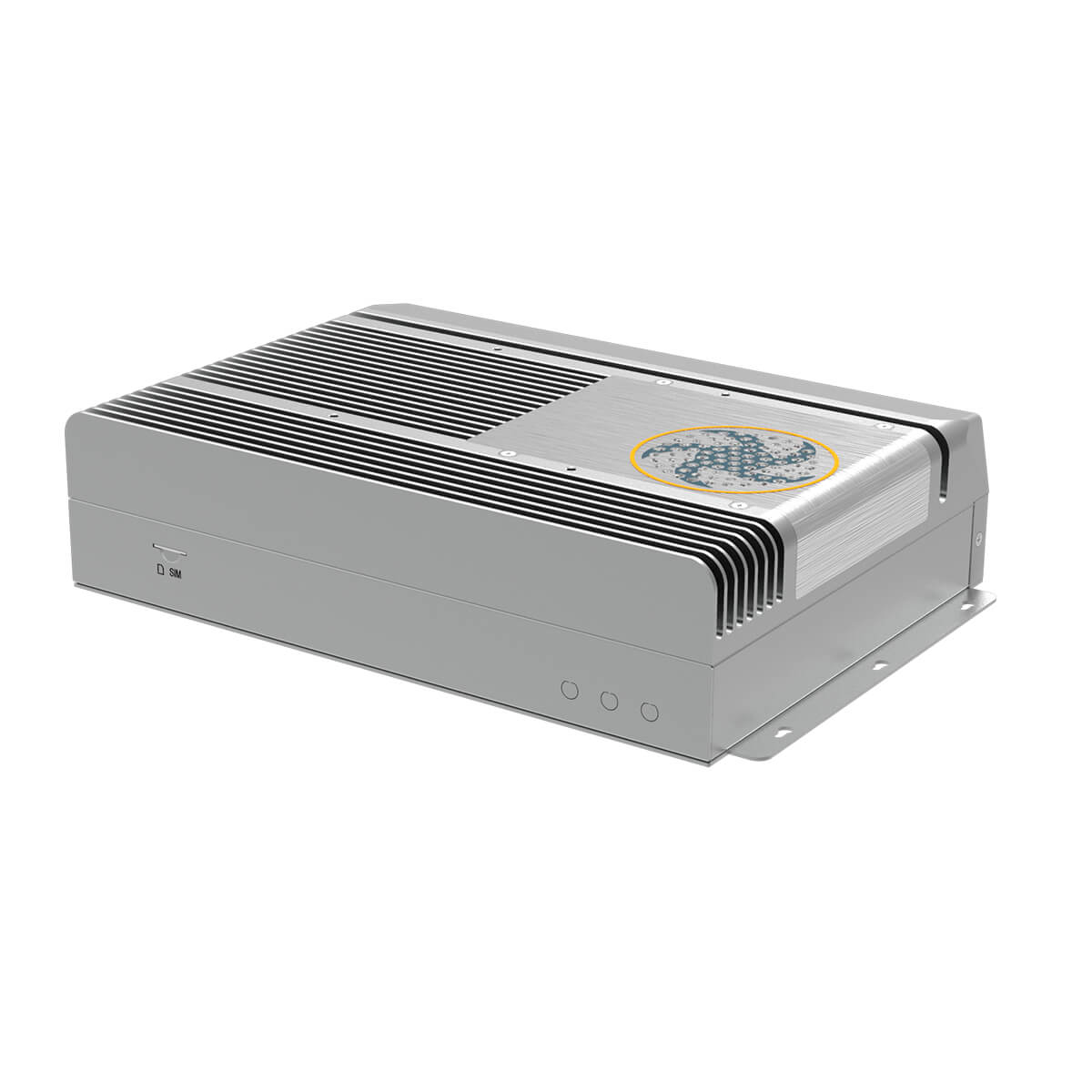

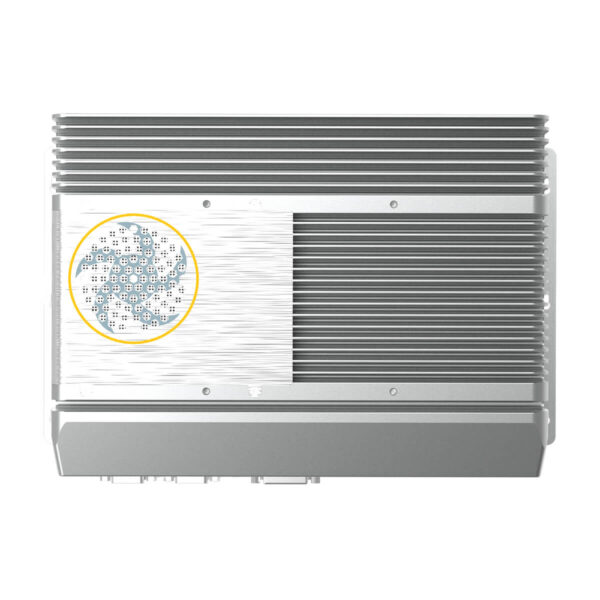

Vision Box PC ABOX-E70S

Key features:

Support Intel® 6^th/7^th/8^th/9^th Core™ i7/i5/i3 desktop multicore 65/35w processors;
Q170 (Alternative C236) industrial chipset;
2 DDR4 SO-DIMM, Dual channels, MAX. up to 32GB;
3 Display ports, support 3 hard disks storage;
expansion up to 10 USB ports;
expansion up to 6 Intel RJ45 ports;
expansion up to 6 COM ports;
Support wide voltage DC 9V ~ 36V power input.

"*" indicates required fields

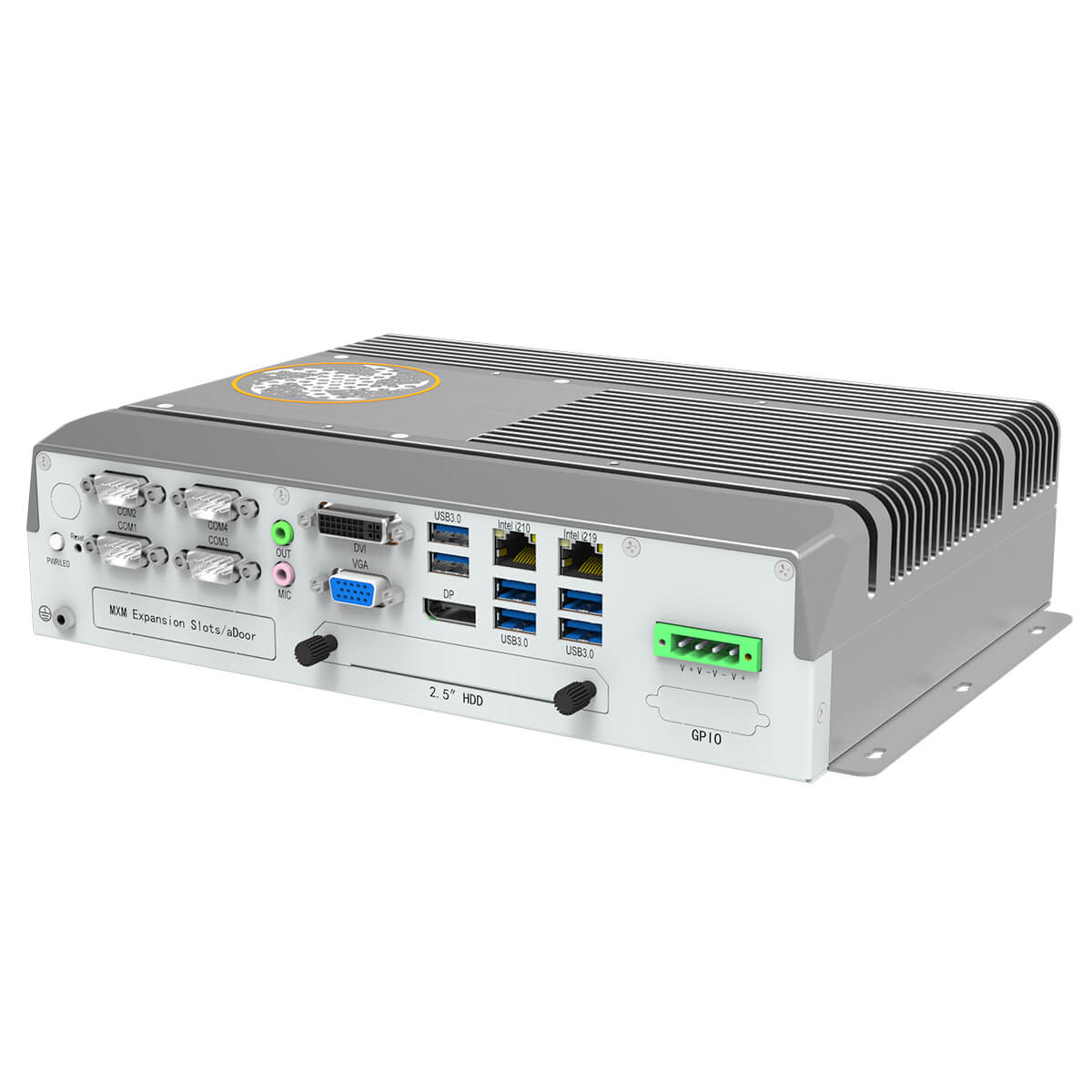

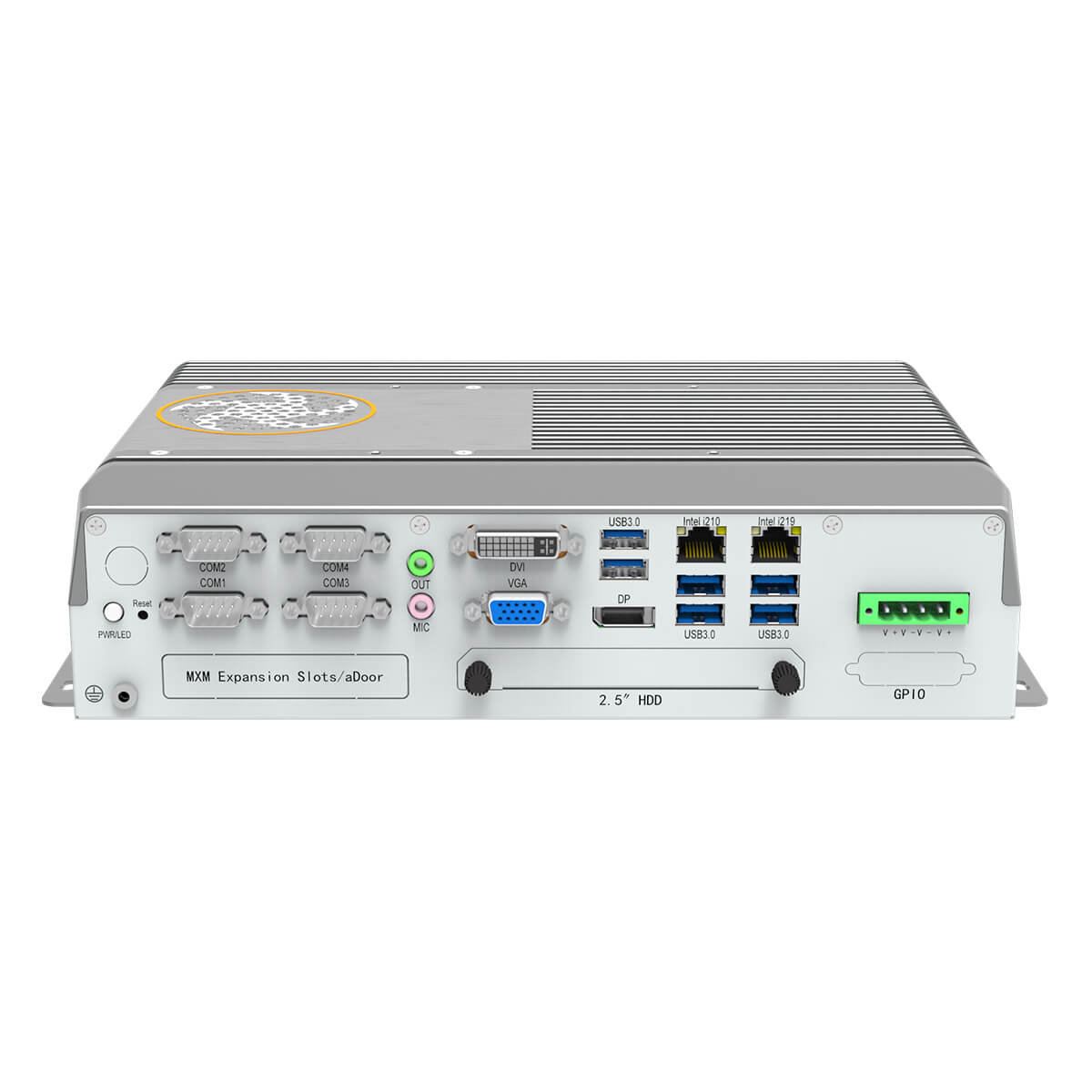

Mainkco IPC ABOX-E70S is a AI Vision Box PC product developed based on the Intel LGA1151 6th/7th/8th/9th Desktop 65W CPU processors platform. It directly uses a full-performance desktop platform processor, combined with Intel Media SDK to achieve multi-channel graphics processing . In addition to the modular concept design, it also offers our unique MXM/aDoor modules expansion to meet different IO requirement of industrial applications, and multiple high-speed I/O module interfaces. ABOX-E70S Box PC is designed with rich IO interfaces for industrial applications, including 2 GLAN, 6 USB3.0, 4 RS232, 1 DVI, 1 VGA, 1 DP displays.

In addition to high-performance computing and high-speed communication, it also supports 3 storage disks and support RAID 0/1 feature. The newly designed dynamic heat dissipation scheme and the molded aluminum alloy high-profile housing providing an ideal vision Box PC for machine vision computing applications.

Technical Data

System
CPU	Intel^® 6^th/7^th/8^th/9^th Core™ i3/i5/i7 Desktop LGA1151 CPU, TDP=65/35W
Chipset	Intel^® Q170 Chipset (Alternative C236 chipset)
Memory	2 x DDR4 SO-DIMM, 2133/2400 MHz, Dual channels, Max. single RAM up to 16GB, Max. up to 32GB
Storage	1 x 2.5〞HDD, support 5~9.5mm, hot pluggable 1 x 2.5〞HDD, support 5~9.5mm，Internal 1 x M.2 SATA 3.0（22*42mm），Internal
Display	1 x DP (Max. support resolution: 4096×2304 x24bpp, @ 60Hz) 1 x DVI-D (Max. support resolution: 1920×1200, @60Hz) 1 x VGA (Max. support resolution: 1920×1200, @60Hz)
Network	2 x Intel® Ethernet Connection; LAN1: I210/I211-AT, LAN2: I219-LM, support WOL
Wireless	1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion) 1 x SIM slot
Audio	1 x Mic-in + 1 x Audio-out
USB	6 x USB 3.0
COM	4 x DB9 RS232 (COM1/COM2 support RS485/RS422/RS232, BIOS controllable)
GPIO	8* GPIO, 1* 20 pins Phenix terminal (Optional)
Expansion	1* MXM expansion modules (support 4x GLAN)
Expansion	1* aDoor expansion modules
Power	DC 9~36V input (1 x 4pin 5.08 phoenix terminal, with hole lock)
LED/Switch	1 x power button (including blue LED light)
Watchdog	Programmable 255 seconds
OS	6^th Core™: Windows 7/8.1/10 32 or 64 bits, Linux 7^th Core™: Windows 7/8.1/10 64 bits, Linux 8^th /9^th Core™: Windows 10 64 bits, Linux
RAID	0, 1
Structure
Material	SGCC/Aluminum-alloy
Treatment	Hard anodizing treatment, scratch resistant
Color	Iron grey, industrial grey color
Cooling	PWM intelligent fan
Weight	4.12kg (Net weight)
Dimension	268mm(L) x 194.2mm(W) x 67.7mm(H)
Mounting	Desktop, wall mount, VESA mount (100 x 100mm)
Environmental
Operation temp.	Operating temp.: -20~60°C (Industrial SSD) Operating temp.: 0~50°C (Commercial SSD)
Storage temp.	Storage temp.: -40~80°C
Humidity	10%~90%@40°C (non-condensation)
Vibration	SSD：3Grms@5~500Hz，random，1 hr/axis； 2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis
Shock	10G/peak (11ms sec)

Technical Data

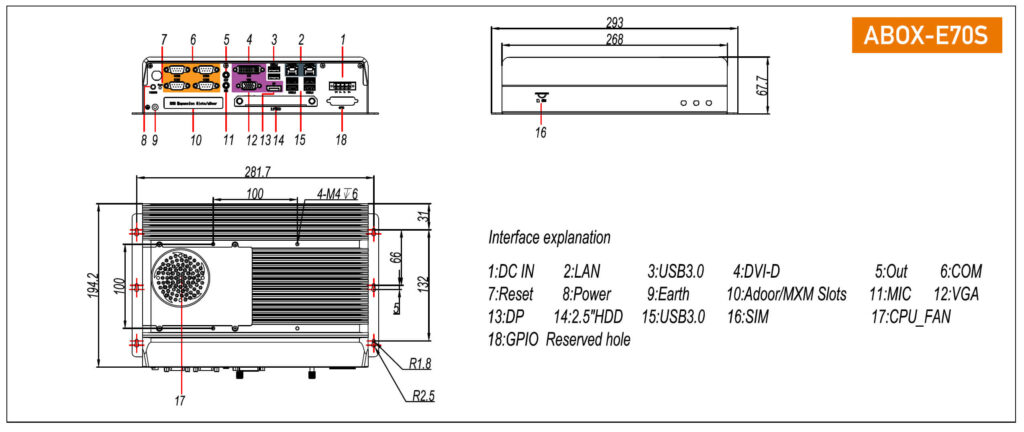

Product Dimension
