ABOX-E70L is a AI vision computing Box PC product developed based on the Intel LGA1151 6th/7th/8th/9th Desktop 35W CPU processors platform. It directly uses a full-performance desktop platform processor, combined with Intel Media SDK to achieve multi-channel graphics processing . In addition to the modular concept design, it also has multiple modules (aDoor and MXM modules) for the machine vision industry, and multiple high-speed I/O module interfaces. ABOX-E70L Box PC is designed with rich IO interfaces for industrial applications. In addition to high-performance computing and high-speed communication, it also supports 3 drives and support RAID 0/1 feature, providing a secure data warehouse, and through the combination of modules. The newly designed dynamic heat dissipation scheme and the molded aluminum alloy high-profile housing providing an ideal embedded design for vision computing applications.

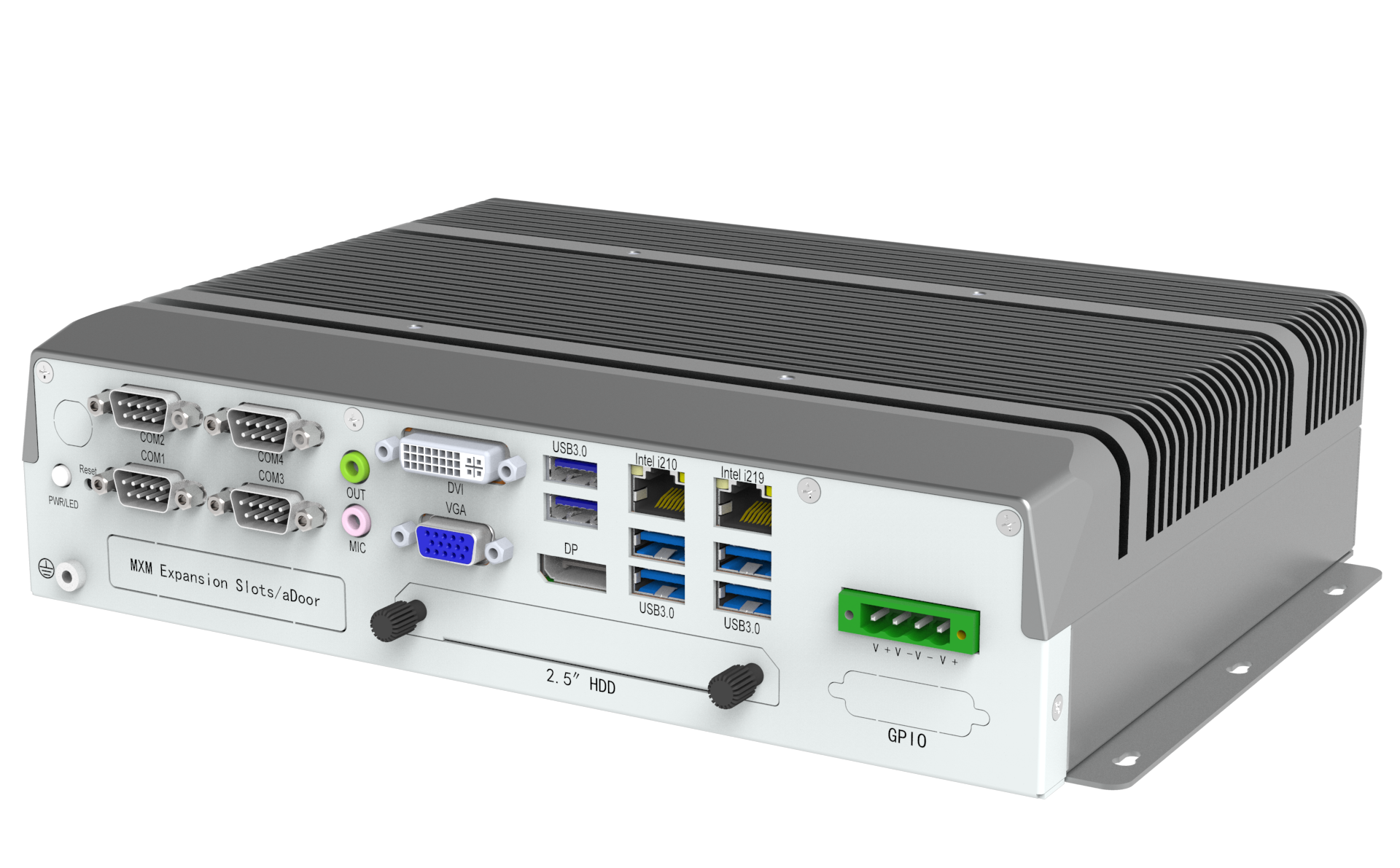

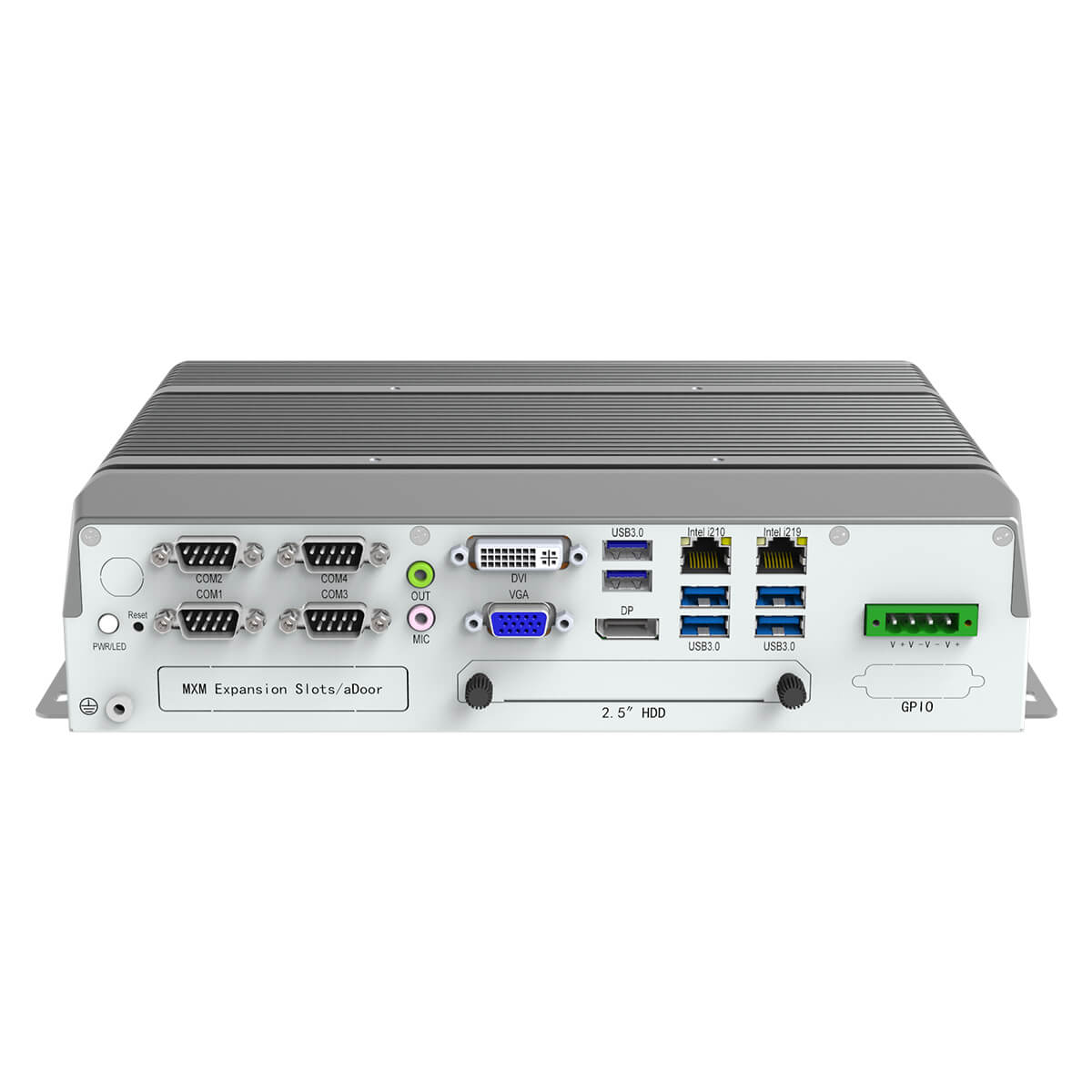

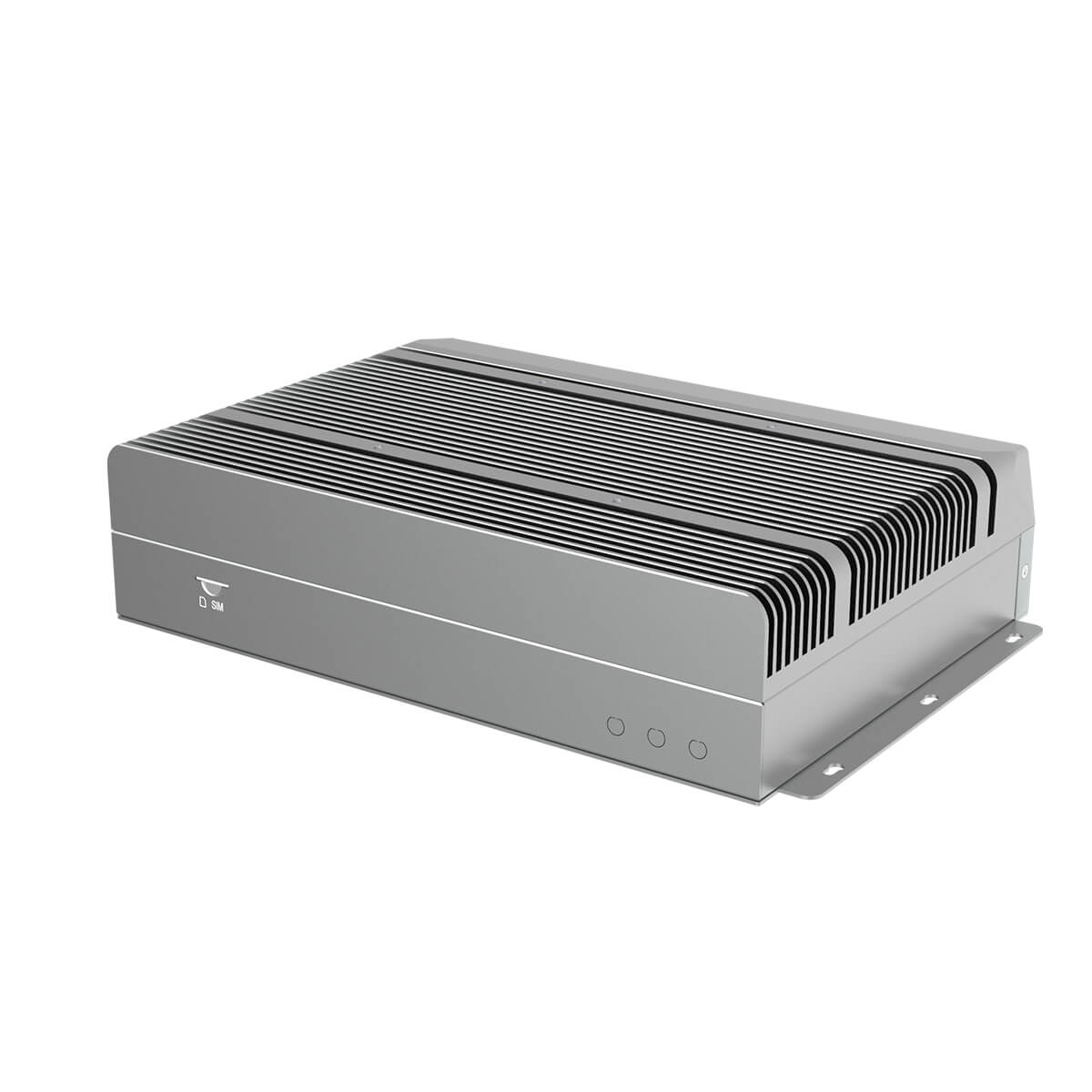

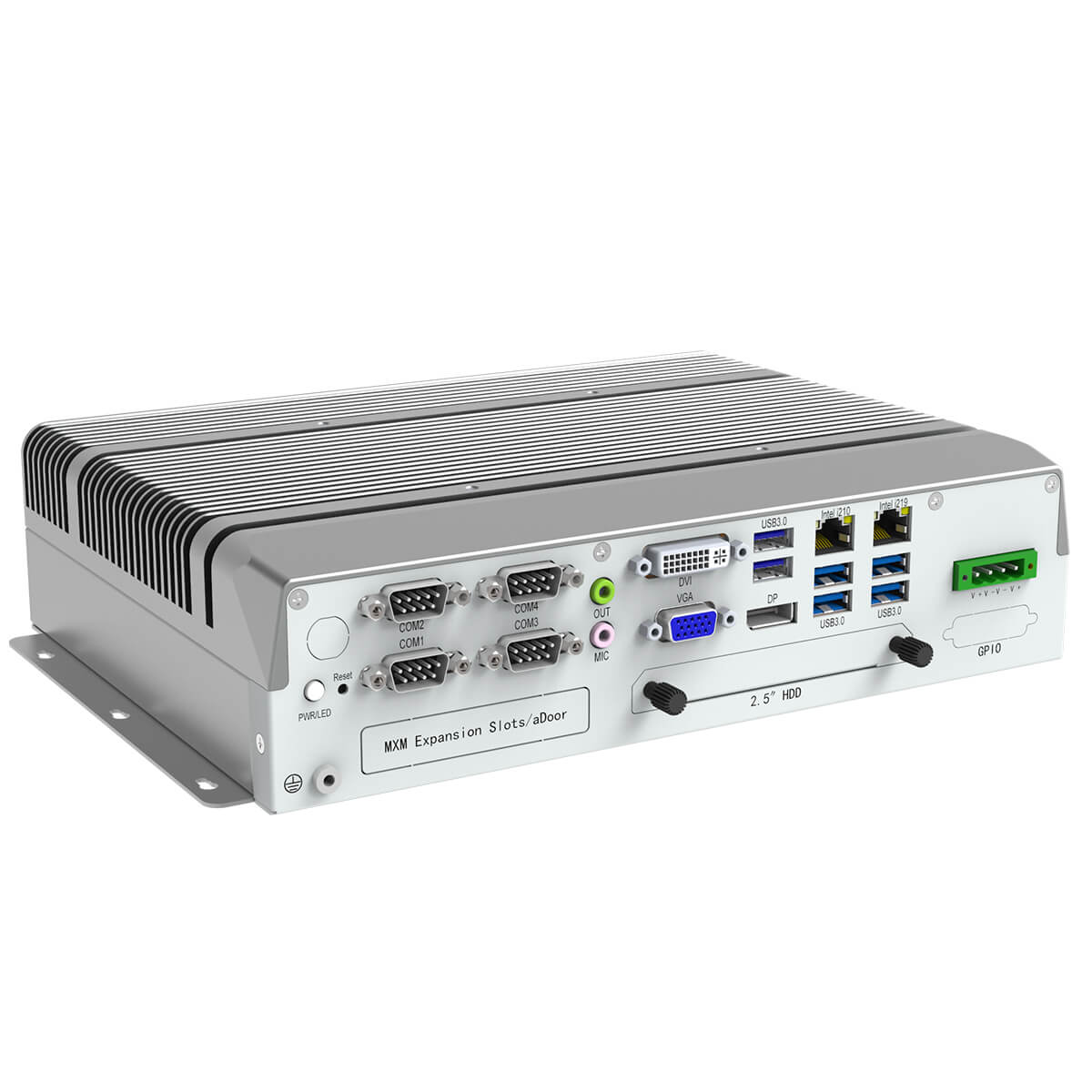

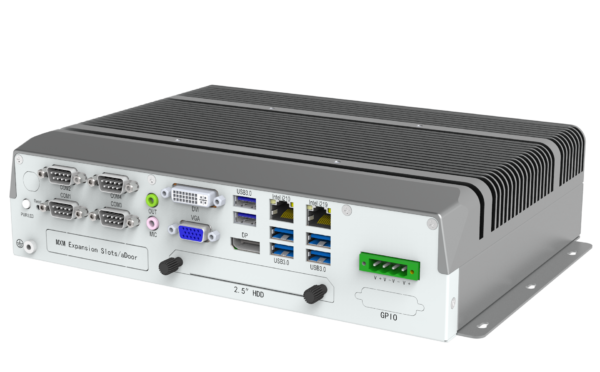

Vision computing Box PC ABOX-E70L
Key features:
- Support Intel® 6th/7th/8th/9th Core™ i7/i5/i3 desktop multicore processors;
- Q170 (Alternative C236) industrial chipset;
- 2 DDR4 SO-DIMM, Dual channels, MAX. UP TO 32GB;
- 3 Display ports, support 3 hard disks storage;
- expansion up to 10 USB ports;
- expansion up to 6 Intel RJ45 ports;
- expansion up to 6 COM ports;
- Support wide voltage DC 9V ~ 36V power input.
"*" indicates required fields
Description
Technical Data
Technical Data
| System | |
| CPU | Intel® 6th/7th/8th/9th Core™ i3/i5/i7 Desktop LGA1151 CPU, TDP=35W (fan-less) |
| Chipset | Intel® Q170 Chipset (Alternative C236 chipset) |
| Memory | 2 x DDR4 SO-DIMM, 2133/2400 MHz, Dual channels, Max. single RAM up to 16GB, Max. up to 32GB |
| Storage | 1 x 2.5〞HDD, support 5~9.5mm, hot pluggable
1 x 2.5〞HDD, support 5~9.5mm，Internal 1 x M.2 SATA 3.0（22*42mm），Internal |
| Display | 1 x DP (Max. support resolution: 4096×2304 x24bpp, @ 60Hz)
1 x DVI-D (Max. support resolution: 1920×1200, @60Hz) 1 x VGA (Max. support resolution: 1920×1200, @60Hz) |
| Network | 2 x Intel® Ethernet Connection; LAN1: I210/I211-AT, LAN2: I219-LM, support WOL |
| Wireless | 1 x Mini-PCIE (Optional support 3G/4G/LTE, Wi-FI/BT expansion)
1 x SIM slot |
| Audio | 1 x Mic-in + 1 x Audio-out |
| USB | 6 x USB 3.0 |
| COM | 4 x DB9 RS232 (COM1/COM2 support RS485/RS422/RS232, BIOS controllable) |
| GPIO | 8* GPIO, 1* 20 pins Phenix terminal (Optional) |
| Expansion | 1* MXM expansion modules (support 4x GLAN) |
| 1* aDoor expansion modules | |
| Power | DC 9~36V input (1 x 4pin 5.08 phoenix terminal, with hole lock) |
| LED/Switch | 1 x power button (including blue LED light) |
| Watchdog | Programmable 255 seconds |
| OS | 6th Core™: Windows 7/8.1/10 32 or 64 bits, Linux
7th Core™: Windows 7/8.1/10 64 bits, Linux 8th /9th Core™: Windows 10 64 bits, Linux |
| RAID | 0, 1 |
| Structure | |
| Material | SGCC/Aluminum-alloy |
| Treatment | Hard anodizing treatment, scratch resistant |
| Color | Iron grey, industrial grey color |
| Cooling | Fan-less design |
| Weight | 4.12kg (Net weight) |
| Dimension | 268mm(L) x 194.2mm(W) x 67.7mm(H) |
| Mounting | Desktop, wall mount, VESA mount (100 x 100mm) |
| Environmental | |
| Operation temp. | Operating temp.: -20~60°C (Industrial SSD)
Operating temp.: 0~50°C (Commercial SSD) |
| Storage temp. | Storage temp.: -40~80°C |
| Humidity | 10%~90%@40°C (non-condensation) |
| Vibration | SSD：3Grms@5~500Hz，random，1 hr/axis；
2.5〞HDD：1Grms@5~500Hz，random，1 hr/axis |
| Shock | 10G/peak (11ms sec) |

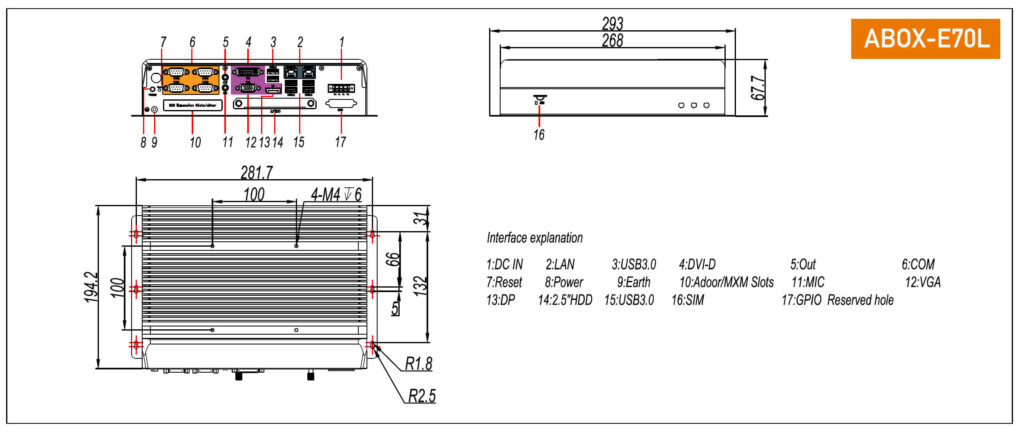

Product Dimension
